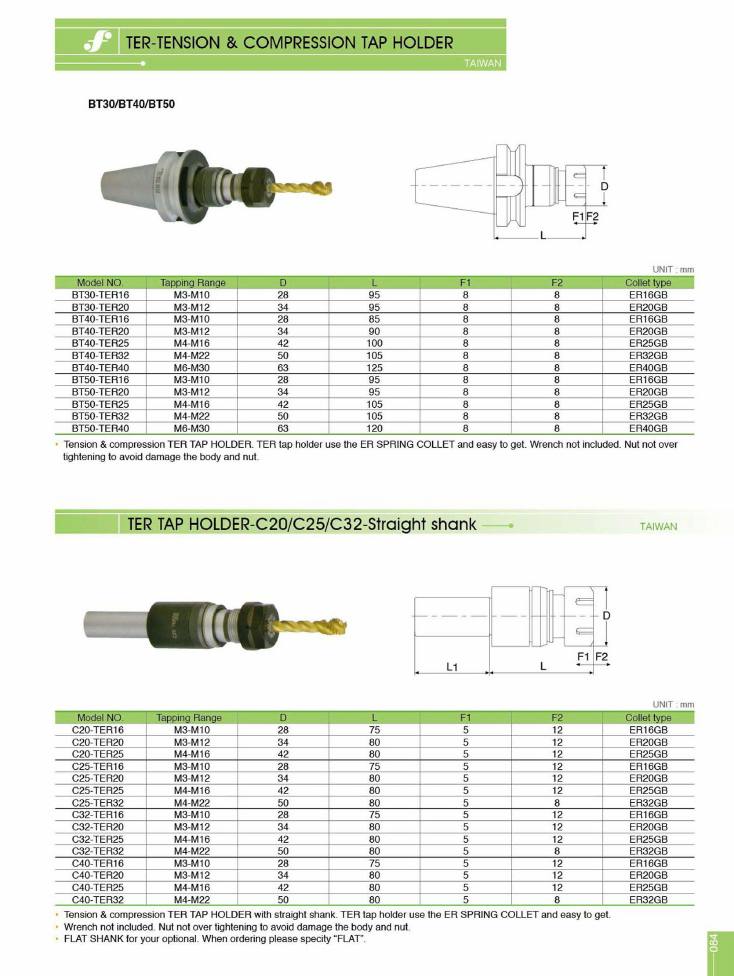

Frejoth accessory catalogue · Page 84
TER-tension & compression tap holder
Models on this page
BT30-TER16BT30-TER20BT40-TER16BT40-TER20BT40-TER25BT40-TER32BT40-TER40BT50-TER16BT50-TER20BT50-TER25BT50-TER32BT50-TER40C20-TER16C20-TER20C20-TER25C25-TER16C25-TER20C25-TER25C25-TER32C32-TER16C32-TER20C32-TER25C32-TER32C40-TER16C40-TER20C40-TER25C40-TER32
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
TER-Tension & Compression Tap Holder - BT30/BT40/BT50
TER · Taiwan
- Tension & compression TER TAP HOLDER.
- TER tap holder uses the ER SPRING COLLET and is easy to get.
- Wrench not included.
- Nut not over tightening to avoid damage the body and nut.
| model_no | tapping_range | d | l | f1 | f2 | collet_type |
|---|---|---|---|---|---|---|
| BT30-TER16 | M3-M10 | 28 | 95 | 8 | 8 | ER16GB |
| BT30-TER20 | M3-M12 | 34 | 95 | 8 | 8 | ER20GB |
| BT40-TER16 | M3-M10 | 28 | 85 | 8 | 8 | ER16GB |
| BT40-TER20 | M3-M12 | 34 | 90 | 8 | 8 | ER20GB |
| BT40-TER25 | M4-M16 | 42 | 100 | 8 | 8 | ER25GB |
| BT40-TER32 | M4-M22 | 50 | 105 | 8 | 8 | ER32GB |
| BT40-TER40 | M6-M30 | 63 | 125 | 8 | 8 | ER40GB |
| BT50-TER16 | M3-M10 | 28 | 95 | 8 | 8 | ER16GB |
| BT50-TER20 | M3-M12 | 34 | 95 | 8 | 8 | ER20GB |
| BT50-TER25 | M4-M16 | 42 | 105 | 8 | 8 | ER25GB |
| BT50-TER32 | M4-M22 | 50 | 105 | 8 | 8 | ER32GB |
| BT50-TER40 | M6-M30 | 63 | 120 | 8 | 8 | ER40GB |
| Code | Model |
|---|---|
| on request | BT30-TER16 |
| on request | BT30-TER20 |
| on request | BT40-TER16 |
| on request | BT40-TER20 |
| on request | BT40-TER25 |
| on request | BT40-TER32 |
| on request | BT40-TER40 |
| on request | BT50-TER16 |
| on request | BT50-TER20 |
| on request | BT50-TER25 |
| on request | BT50-TER32 |
| on request | BT50-TER40 |
TER Tap Holder - C20/C25/C32 Straight Shank
TER · Taiwan
- Tension & compression TER TAP HOLDER with straight shank.
- TER tap holder uses the ER SPRING COLLET and is easy to get.
- Wrench not included. Nut not over tightening to avoid damage the body and nut.
- FLAT SHANK for your optional. When ordering please specify "FLAT".
| model_no | tapping_range | d | l | f1 | f2 | collet_type |
|---|---|---|---|---|---|---|
| C20-TER16 | M3-M10 | 28 | 75 | 5 | 12 | ER16GB |
| C20-TER20 | M3-M12 | 34 | 80 | 5 | 12 | ER20GB |
| C20-TER25 | M4-M16 | 42 | 80 | 5 | 12 | ER25GB |
| C25-TER16 | M3-M10 | 28 | 75 | 5 | 12 | ER16GB |
| C25-TER20 | M3-M12 | 34 | 80 | 5 | 12 | ER20GB |
| C25-TER25 | M4-M16 | 42 | 80 | 5 | 12 | ER25GB |
| C25-TER32 | M4-M22 | 50 | 80 | 5 | 8 | ER32GB |
| C32-TER16 | M3-M10 | 28 | 75 | 5 | 12 | ER16GB |
| C32-TER20 | M3-M12 | 34 | 80 | 5 | 12 | ER20GB |
| C32-TER25 | M4-M16 | 42 | 80 | 5 | 12 | ER25GB |
| C32-TER32 | M4-M22 | 50 | 80 | 5 | 8 | ER32GB |
| C40-TER16 | M3-M10 | 28 | 75 | 5 | 12 | ER16GB |
| C40-TER20 | M3-M12 | 34 | 80 | 5 | 12 | ER20GB |
| C40-TER25 | M4-M16 | 42 | 80 | 5 | 12 | ER25GB |
| C40-TER32 | M4-M22 | 50 | 80 | 5 | 8 | ER32GB |
| Code | Model |
|---|---|
| on request | C20-TER16 |
| on request | C20-TER20 |
| on request | C20-TER25 |
| on request | C25-TER16 |
| on request | C25-TER20 |
| on request | C25-TER25 |
| on request | C25-TER32 |
| on request | C32-TER16 |
| on request | C32-TER20 |
| on request | C32-TER25 |
| on request | C32-TER32 |
| on request | C40-TER16 |
| on request | C40-TER20 |
| on request | C40-TER25 |
| on request | C40-TER32 |
