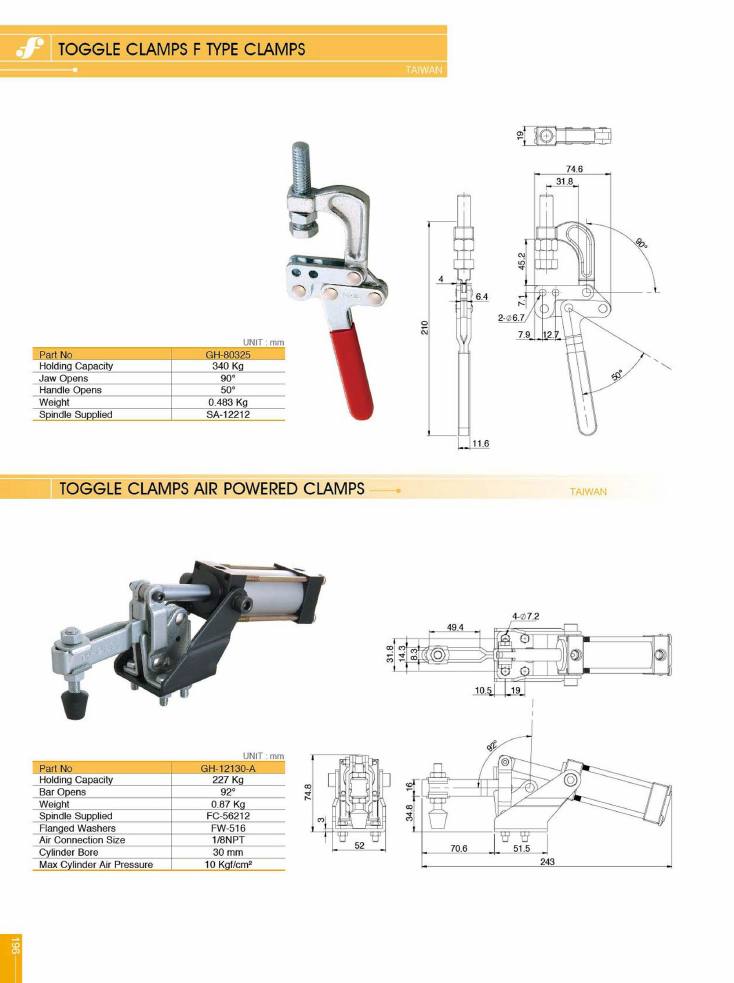

Frejoth accessory catalogue · Page 199
TOGGLE CLAMPS F TYPE CLAMPS
Models on this page
GH-12130-AGH-80325
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
TOGGLE CLAMPS F TYPE CLAMPS
Taiwan
| part_no | holding_capacity | jaw_opens | handle_opens | weight | spindle_supplied |
|---|---|---|---|---|---|
| GH-80325 | 340 Kg | 90° | 50° | 0.483 Kg | SA-12212 |
| Code | Model |
|---|---|
| on request | GH-80325 |
Single-model page. Photo plus dimension drawings (74.6, 31.8, 45.2, 7.1, 7.9, 12.7, 4, 6.4, 210, 11.6, 19, 2-ø6.7, jaw 90°, handle 50°).
TOGGLE CLAMPS AIR POWERED CLAMPS
Taiwan
| part_no | holding_capacity | bar_opens | weight | spindle_supplied | flanged_washers | air_connection_size | cylinder_bore | max_cylinder_air_pressure |
|---|---|---|---|---|---|---|---|---|
| GH-12130-A | 227 Kg | 92° | 0.87 Kg | FC-56212 | FW-516 | 1/8NPT | 30 mm | 10 Kgf/cm² |
| Code | Model |
|---|---|
| on request | GH-12130-A |
Single-model page. Photo plus dimension drawings (49.4, 31.8, 14.3, 8.3, 10.5, 19, 4-ø7.2, 74.8, 3, 52, 16, 34.8, 70.6, 51.5, 243, bar opens 92°).
