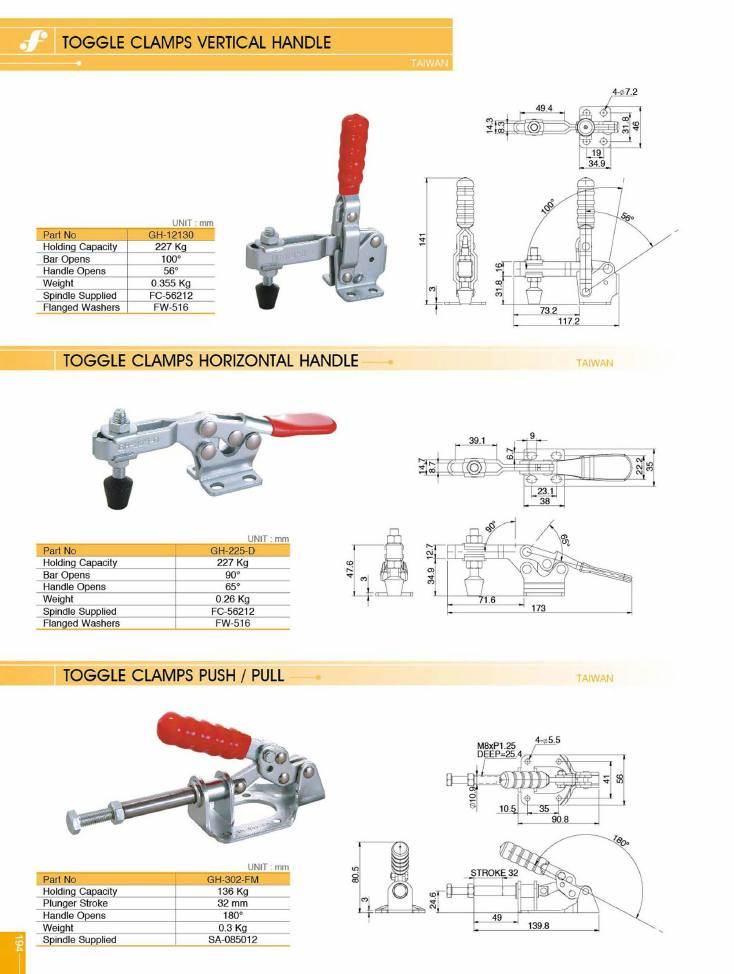

Frejoth accessory catalogue · Page 197
TOGGLE CLAMPS VERTICAL HANDLE
Models on this page
GH-12130GH-225-DGH-302-FM
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
TOGGLE CLAMPS VERTICAL HANDLE
GH · Taiwan
| part_no | holding_capacity | bar_opens | handle_opens | weight | spindle_supplied | flanged_washers |
|---|---|---|---|---|---|---|
| GH-12130 | 227 Kg | 100° | 56° | 0.355 Kg | FC-56212 | FW-516 |
| Code | Model |
|---|---|
| on request | GH-12130 |
Accompanied by dimension drawings only (no dimension table): 141, 3, 49.4, 14.3, 8.3, 4-ø7.2, 31.8, 46, 19, 34.9, 16, 31.8, 73.2, 117.2, bar opens 100°, handle opens 56°.
TOGGLE CLAMPS HORIZONTAL HANDLE
GH · Taiwan
| part_no | holding_capacity | bar_opens | handle_opens | weight | spindle_supplied | flanged_washers |
|---|---|---|---|---|---|---|
| GH-225-D | 227 Kg | 90° | 65° | 0.26 Kg | FC-56212 | FW-516 |
| Code | Model |
|---|---|
| on request | GH-225-D |
Accompanied by dimension drawings only (no dimension table): 39.1, 9, 14.7, 8.7, 6.7, 23.1, 38, 22.2, 35, 47.6, 3, 12.7, 34.9, 71.6, 173, bar opens 90°, handle opens 65°.
TOGGLE CLAMPS PUSH / PULL
GH · Taiwan
| part_no | holding_capacity | plunger_stroke | handle_opens | weight | spindle_supplied |
|---|---|---|---|---|---|
| GH-302-FM | 136 Kg | 32 mm | 180° | 0.3 Kg | SA-085012 |
| Code | Model |
|---|---|
| on request | GH-302-FM |
Accompanied by dimension drawings only (no dimension table): M8xP1.25 DEEP=25.4, 4-ø5.5, ø10.9, 10.5, 35, 90.8, 41, 56, 80.5, 3, 24.6, STROKE 32, 49, 139.8, handle opens 180°.
