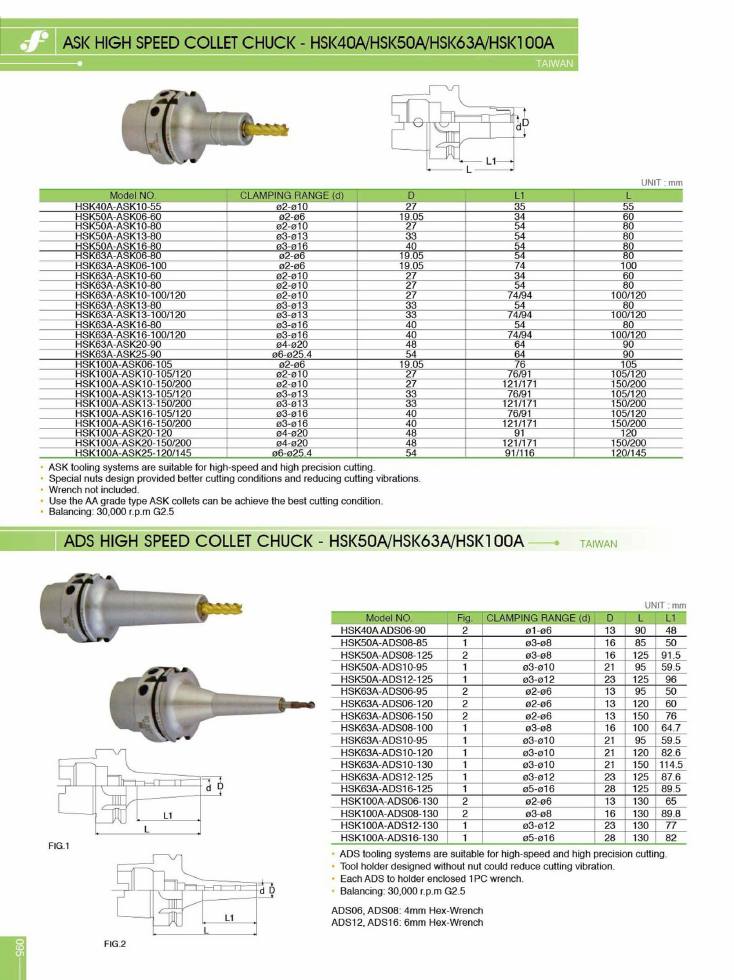

ASK High Speed Collet Chuck - HSK40A/HSK50A/HSK63A/HSK100A
ASK · Taiwan
- ASK tooling systems are suitable for high-speed and high precision cutting.
- Special nuts design provided better cutting conditions and reducing cutting vibrations.
- Wrench not included.
- Use the AA grade type ASK collets can be achieve the best cutting condition.
- Balancing: 30,000 r.p.m G2.5
| model_no | clamping_range_d | d | l1 | l |
|---|---|---|---|---|
| HSK40A-ASK10-55 | ø2-ø10 | 27 | 35 | 55 |
| HSK50A-ASK06-60 | ø2-ø6 | 19.05 | 34 | 60 |
| HSK50A-ASK10-80 | ø2-ø10 | 27 | 54 | 80 |
| HSK50A-ASK13-80 | ø3-ø13 | 33 | 54 | 80 |
| HSK50A-ASK16-80 | ø3-ø16 | 40 | 54 | 80 |
| HSK63A-ASK06-80 | ø2-ø6 | 19.05 | 54 | 80 |
| HSK63A-ASK06-100 | ø2-ø6 | 19.05 | 74 | 100 |
| HSK63A-ASK10-60 | ø2-ø10 | 27 | 34 | 60 |
| HSK63A-ASK10-80 | ø2-ø10 | 27 | 54 | 80 |
| HSK63A-ASK10-100/120 | ø2-ø10 | 27 | 74/94 | 100/120 |
| HSK63A-ASK13-80 | ø3-ø13 | 33 | 54 | 80 |
| HSK63A-ASK13-100/120 | ø3-ø13 | 33 | 74/94 | 100/120 |
| HSK63A-ASK16-80 | ø3-ø16 | 40 | 54 | 80 |
| HSK63A-ASK16-100/120 | ø3-ø16 | 40 | 74/94 | 100/120 |
| HSK63A-ASK20-90 | ø4-ø20 | 48 | 64 | 90 |
| HSK63A-ASK25-90 | ø6-ø25.4 | 54 | 64 | 90 |
| HSK100A-ASK06-105 | ø2-ø6 | 19.05 | 76 | 105 |
| HSK100A-ASK10-105/120 | ø2-ø10 | 27 | 76/91 | 105/120 |
| HSK100A-ASK10-150/200 | ø2-ø10 | 27 | 121/171 | 150/200 |
| HSK100A-ASK13-105/120 | ø3-ø13 | 33 | 76/91 | 105/120 |
| HSK100A-ASK13-150/200 | ø3-ø13 | 33 | 121/171 | 150/200 |
| HSK100A-ASK16-105/120 | ø3-ø16 | 40 | 76/91 | 105/120 |
| HSK100A-ASK16-150/200 | ø3-ø16 | 40 | 121/171 | 150/200 |
| HSK100A-ASK20-120 | ø4-ø20 | 48 | 91 | 120 |
| HSK100A-ASK20-150/200 | ø4-ø20 | 48 | 121/171 | 150/200 |
| HSK100A-ASK25-120/145 | ø6-ø25.4 | 54 | 91/116 | 120/145 |
| Code | Model |
|---|---|
| HSK40A-ASK10-55 | HSK40A-ASK10-55 |
| HSK50A-ASK06-60 | HSK50A-ASK06-60 |
| HSK50A-ASK10-80 | HSK50A-ASK10-80 |
| HSK50A-ASK13-80 | HSK50A-ASK13-80 |
| HSK50A-ASK16-80 | HSK50A-ASK16-80 |
| HSK63A-ASK06-80 | HSK63A-ASK06-80 |
| HSK63A-ASK06-100 | HSK63A-ASK06-100 |
| HSK63A-ASK10-60 | HSK63A-ASK10-60 |
| HSK63A-ASK10-80 | HSK63A-ASK10-80 |
| HSK63A-ASK10-100/120 | HSK63A-ASK10-100/120 |
| HSK63A-ASK13-80 | HSK63A-ASK13-80 |
| HSK63A-ASK13-100/120 | HSK63A-ASK13-100/120 |
| HSK63A-ASK16-80 | HSK63A-ASK16-80 |
| HSK63A-ASK16-100/120 | HSK63A-ASK16-100/120 |
| HSK63A-ASK20-90 | HSK63A-ASK20-90 |
| HSK63A-ASK25-90 | HSK63A-ASK25-90 |
| HSK100A-ASK06-105 | HSK100A-ASK06-105 |
| HSK100A-ASK10-105/120 | HSK100A-ASK10-105/120 |
| HSK100A-ASK10-150/200 | HSK100A-ASK10-150/200 |
| HSK100A-ASK13-105/120 | HSK100A-ASK13-105/120 |
| HSK100A-ASK13-150/200 | HSK100A-ASK13-150/200 |
| HSK100A-ASK16-105/120 | HSK100A-ASK16-105/120 |
| HSK100A-ASK16-150/200 | HSK100A-ASK16-150/200 |
| HSK100A-ASK20-120 | HSK100A-ASK20-120 |
| HSK100A-ASK20-150/200 | HSK100A-ASK20-150/200 |
| HSK100A-ASK25-120/145 | HSK100A-ASK25-120/145 |
ADS High Speed Collet Chuck - HSK50A/HSK63A/HSK100A
ADS · Taiwan
- ADS tooling systems are suitable for high-speed and high precision cutting.
- Tool holder designed without nut could reduce cutting vibration.
- Each ADS to holder enclosed 1PC wrench.
- Balancing: 30,000 r.p.m G2.5
| model_no | fig | clamping_range_d | d | l | l1 |
|---|---|---|---|---|---|
| HSK40A ADS06-90 | 2 | ø1-ø6 | 13 | 90 | 48 |
| HSK50A-ADS08-85 | 1 | ø3-ø8 | 16 | 85 | 50 |
| HSK50A-ADS08-125 | 2 | ø3-ø8 | 16 | 125 | 91.5 |
| HSK50A-ADS10-95 | 1 | ø3-ø10 | 21 | 95 | 59.5 |
| HSK50A-ADS12-125 | 1 | ø3-ø12 | 23 | 125 | 96 |
| HSK63A-ADS06-95 | 2 | ø2-ø6 | 13 | 95 | 50 |
| HSK63A-ADS06-120 | 2 | ø2-ø6 | 13 | 120 | 60 |
| HSK63A-ADS06-150 | 2 | ø2-ø6 | 13 | 150 | 76 |
| HSK63A-ADS08-100 | 1 | ø3-ø8 | 16 | 100 | 64.7 |
| HSK63A-ADS10-95 | 1 | ø3-ø10 | 21 | 95 | 59.5 |
| HSK63A-ADS10-120 | 1 | ø3-ø10 | 21 | 120 | 82.6 |
| HSK63A-ADS10-130 | 1 | ø3-ø10 | 21 | 150 | 114.5 |
| HSK63A-ADS12-125 | 1 | ø3-ø12 | 23 | 125 | 87.6 |
| HSK63A-ADS16-125 | 1 | ø5-ø16 | 28 | 125 | 89.5 |
| HSK100A-ADS06-130 | 2 | ø2-ø6 | 13 | 130 | 65 |
| HSK100A-ADS08-130 | 2 | ø3-ø8 | 16 | 130 | 89.8 |
| HSK100A-ADS12-130 | 1 | ø3-ø12 | 23 | 130 | 77 |
| HSK100A-ADS16-130 | 1 | ø5-ø16 | 28 | 130 | 82 |
| Code | Model |
|---|---|
| HSK40A ADS06-90 | HSK40A ADS06-90 |
| HSK50A-ADS08-85 | HSK50A-ADS08-85 |
| HSK50A-ADS08-125 | HSK50A-ADS08-125 |
| HSK50A-ADS10-95 | HSK50A-ADS10-95 |
| HSK50A-ADS12-125 | HSK50A-ADS12-125 |
| HSK63A-ADS06-95 | HSK63A-ADS06-95 |
| HSK63A-ADS06-120 | HSK63A-ADS06-120 |
| HSK63A-ADS06-150 | HSK63A-ADS06-150 |
| HSK63A-ADS08-100 | HSK63A-ADS08-100 |
| HSK63A-ADS10-95 | HSK63A-ADS10-95 |
| HSK63A-ADS10-120 | HSK63A-ADS10-120 |
| HSK63A-ADS10-130 | HSK63A-ADS10-130 |
| HSK63A-ADS12-125 | HSK63A-ADS12-125 |
| HSK63A-ADS16-125 | HSK63A-ADS16-125 |
| HSK100A-ADS06-130 | HSK100A-ADS06-130 |
| HSK100A-ADS08-130 | HSK100A-ADS08-130 |
| HSK100A-ADS12-130 | HSK100A-ADS12-130 |
| HSK100A-ADS16-130 | HSK100A-ADS16-130 |
ADS06, ADS08: 4mm Hex-Wrench. ADS12, ADS16: 6mm Hex-Wrench. Fig. column refers to FIG.1 / FIG.2 outline drawings on the page.
