Toolpost grinder & live center
Models on this page
BJ20-20LBJ2008-32BJ2010-40BJ2012-53BJ2016-68BJ2020-83BJ2025-96BJ2030-115BT40-CBH2084BT50-CBH2084DC-100DC-13DC-22DC-30DC-40DC-50DC-60DC-80G200G205G206G208G210G212G230G306G308G310G312G316G345MT4-CBH2084MT5-CBH2084NT30-CBH2084NT40-CBH2084NT50-CBH2084R8-CBH2084SK40-CBH2084SK50-CBH2
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

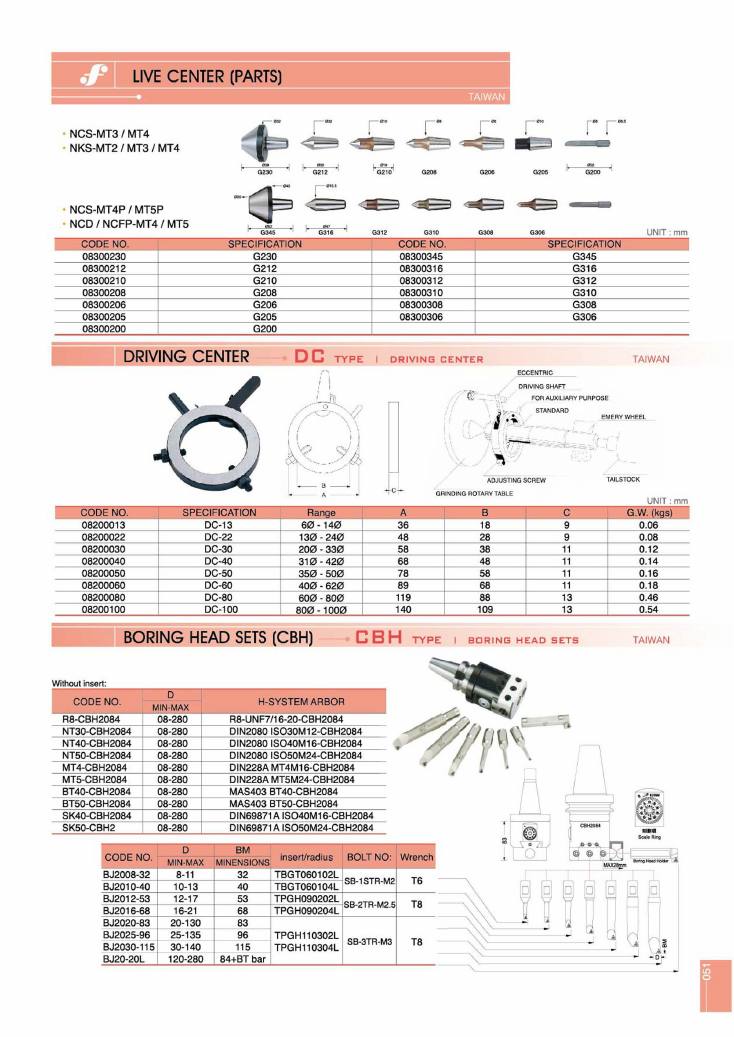

Live Center (Parts)
Taiwan
| code_no | specification |
|---|---|
| 08300230 | G230 |
| 08300212 | G212 |
| 08300210 | G210 |
| 08300208 | G208 |
| 08300206 | G206 |
| 08300205 | G205 |
| 08300200 | G200 |
| 08300345 | G345 |
| 08300316 | G316 |
| 08300312 | G312 |
| 08300310 | G310 |
| 08300308 | G308 |
| 08300306 | G306 |
| Code | Model |
|---|---|
| 08300230 | G230 |
| 08300212 | G212 |
| 08300210 | G210 |
| 08300208 | G208 |
| 08300206 | G206 |
| 08300205 | G205 |
| 08300200 | G200 |
| 08300345 | G345 |
| 08300316 | G316 |
| 08300312 | G312 |
| 08300310 | G310 |
| 08300308 | G308 |
| 08300306 | G306 |
Replacement point/insert parts for live centres. Fits NCS-MT3 / MT4, NKS-MT2 / MT3 / MT4, NCS-MT4P / MT5P, NCD / NCFP-MT4 / MT5.
Driving Center
DC · Taiwan
| code_no | specification | range | a | b | c | gw_kgs |
|---|---|---|---|---|---|---|
| 08200013 | DC-13 | 6ø - 14ø | 36 | 18 | 9 | 0.06 |
| 08200022 | DC-22 | 13ø - 24ø | 48 | 28 | 9 | 0.08 |
| 08200030 | DC-30 | 20ø - 33ø | 58 | 38 | 11 | 0.12 |
| 08200040 | DC-40 | 31ø - 42ø | 68 | 48 | 11 | 0.14 |
| 08200050 | DC-50 | 35ø - 50ø | 78 | 58 | 11 | 0.16 |
| 08200060 | DC-60 | 40ø - 62ø | 89 | 68 | 11 | 0.18 |
| 08200080 | DC-80 | 60ø - 80ø | 119 | 88 | 13 | 0.46 |
| 08200100 | DC-100 | 80ø - 100ø | 140 | 109 | 13 | 0.54 |
| Code | Model |
|---|---|
| 08200013 | DC-13 |
| 08200022 | DC-22 |
| 08200030 | DC-30 |
| 08200040 | DC-40 |
| 08200050 | DC-50 |
| 08200060 | DC-60 |
| 08200080 | DC-80 |
| 08200100 | DC-100 |
Boring Head Sets (CBH)
CBH · Taiwan
| code_no | d_min_max | h_system_arbor |
|---|---|---|
| R8-CBH2084 | 08-280 | R8-UNF7/16-20-CBH2084 |
| NT30-CBH2084 | 08-280 | DIN2080 ISO30M12-CBH2084 |
| NT40-CBH2084 | 08-280 | DIN2080 ISO40M16-CBH2084 |
| NT50-CBH2084 | 08-280 | DIN2080 ISO50M24-CBH2084 |
| MT4-CBH2084 | 08-280 | DIN228A MT4M16-CBH2084 |
| MT5-CBH2084 | 08-280 | DIN228A MT5M24-CBH2084 |
| BT40-CBH2084 | 08-280 | MAS403 BT40-CBH2084 |
| BT50-CBH2084 | 08-280 | MAS403 BT50-CBH2084 |
| SK40-CBH2084 | 08-280 | DIN69871A ISO40M16-CBH2084 |
| SK50-CBH2 | 08-280 | DIN69871A ISO50M24-CBH2084 |
| code_no | d_min_max | bm_dimensions | insert_radius | bolt_no | wrench |
|---|---|---|---|---|---|
| BJ2008-32 | 8-11 | 32 | TBGT060102L | SB-1STR-M2 | T6 |
| BJ2010-40 | 10-13 | 40 | TBGT060104L | SB-1STR-M2 | T6 |
| BJ2012-53 | 12-17 | 53 | TPGH090202L | SB-2TR-M2.5 | T8 |
| BJ2016-68 | 16-21 | 68 | TPGH090204L | SB-2TR-M2.5 | T8 |
| BJ2020-83 | 20-130 | 83 | — | SB-3TR-M3 | T8 |
| BJ2025-96 | 25-135 | 96 | TPGH110302L | SB-3TR-M3 | T8 |
| BJ2030-115 | 30-140 | 115 | TPGH110304L | SB-3TR-M3 | T8 |
| BJ20-20L | 120-280 | 84+BT bar | — | — | — |
| Code | Model |
|---|---|
| R8-CBH2084 | R8-CBH2084 |
| NT30-CBH2084 | NT30-CBH2084 |
| NT40-CBH2084 | NT40-CBH2084 |
| NT50-CBH2084 | NT50-CBH2084 |
| MT4-CBH2084 | MT4-CBH2084 |
| MT5-CBH2084 | MT5-CBH2084 |
| BT40-CBH2084 | BT40-CBH2084 |
| BT50-CBH2084 | BT50-CBH2084 |
| SK40-CBH2084 | SK40-CBH2084 |
| SK50-CBH2 | SK50-CBH2 |
| BJ2008-32 | BJ2008-32 |
| BJ2010-40 | BJ2010-40 |
| BJ2012-53 | BJ2012-53 |
| BJ2016-68 | BJ2016-68 |
| BJ2020-83 | BJ2020-83 |
| BJ2025-96 | BJ2025-96 |
| BJ2030-115 | BJ2030-115 |
| BJ20-20L | BJ20-20L |
Boring head sets with H-system arbor. Head CBH2084, scale ring graduated 0.01mm, MAX 28mm travel, height 83mm.
