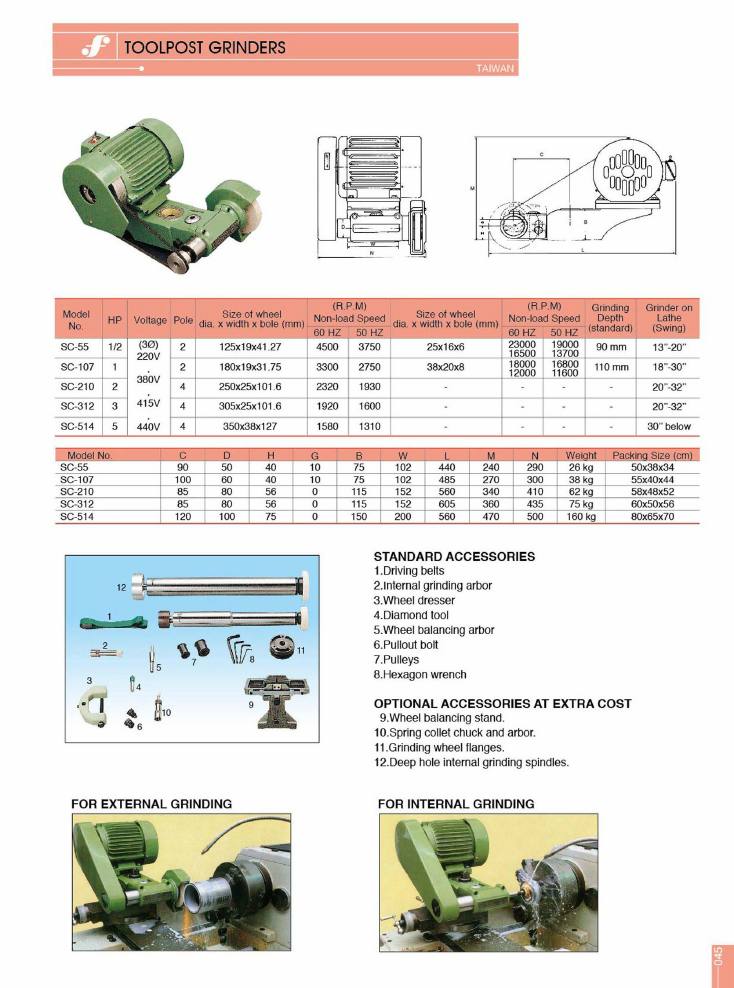

Frejoth accessory catalogue · Page 45
Toolpost grinders
Models on this page
SC-107SC-210SC-312SC-514SC-55
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Toolpost Grinders
SC · Taiwan
- Standard accessories: 1. Driving belts, 2. Internal grinding arbor, 3. Wheel dresser, 4. Diamond tool, 5. Wheel balancing arbor, 6. Pullout bolt, 7. Pulleys, 8. Hexagon wrench
- Optional accessories at extra cost: 9. Wheel balancing stand, 10. Spring collet chuck and arbor, 11. Grinding wheel flanges, 12. Deep hole internal grinding spindles
| model_no | hp | voltage | pole | external_wheel_size_dia_x_width_x_bore_mm | external_non_load_speed_rpm_60hz | external_non_load_speed_rpm_50hz | internal_wheel_size_dia_x_width_x_bore_mm | internal_non_load_speed_rpm_60hz | internal_non_load_speed_rpm_50hz | grinding_depth_standard | grinder_on_lathe_swing |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-55 | 1/2 | (3Ø) 220V, 380V, 415V, 440V | 2 | 125x19x41.27 | 4500 | 3750 | 25x16x6 | 23000 / 16500 | 19000 / 13700 | 90 mm | 13"-20" |
| SC-107 | 1 | (3Ø) 220V, 380V, 415V, 440V | 2 | 180x19x31.75 | 3300 | 2750 | 38x20x8 | 18000 / 12000 | 16800 / 11600 | 110 mm | 18"-30" |
| SC-210 | 2 | (3Ø) 220V, 380V, 415V, 440V | 4 | 250x25x101.6 | 2320 | 1930 | — | — | — | — | 20"-32" |
| SC-312 | 3 | (3Ø) 220V, 380V, 415V, 440V | 4 | 305x25x101.6 | 1920 | 1600 | — | — | — | — | 20"-32" |
| SC-514 | 5 | (3Ø) 220V, 380V, 415V, 440V | 4 | 350x38x127 | 1580 | 1310 | — | — | — | — | 30" below |
| model_no | c | d | h | g | b | w | l | m | n | weight_kg | packing_size_cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-55 | 90 | 50 | 40 | 10 | 75 | 102 | 440 | 240 | 290 | 26 | 50x38x34 |
| SC-107 | 100 | 60 | 40 | 10 | 75 | 102 | 485 | 270 | 300 | 38 | 55x40x44 |
| SC-210 | 85 | 80 | 56 | 0 | 115 | 152 | 560 | 340 | 410 | 62 | 58x48x52 |
| SC-312 | 85 | 80 | 56 | 0 | 115 | 152 | 605 | 360 | 435 | 75 | 60x50x56 |
| SC-514 | 120 | 100 | 75 | 0 | 150 | 200 | 560 | 470 | 500 | 160 | 80x65x70 |
| Code | Model |
|---|---|
| SC-55 | SC-55 |
| SC-107 | SC-107 |
| SC-210 | SC-210 |
| SC-312 | SC-312 |
| SC-514 | SC-514 |
Suitable for external grinding and internal grinding on a lathe. Voltage is printed as a single merged cell covering all models: (3Ø) 220V, 380V, 415V, 440V.
