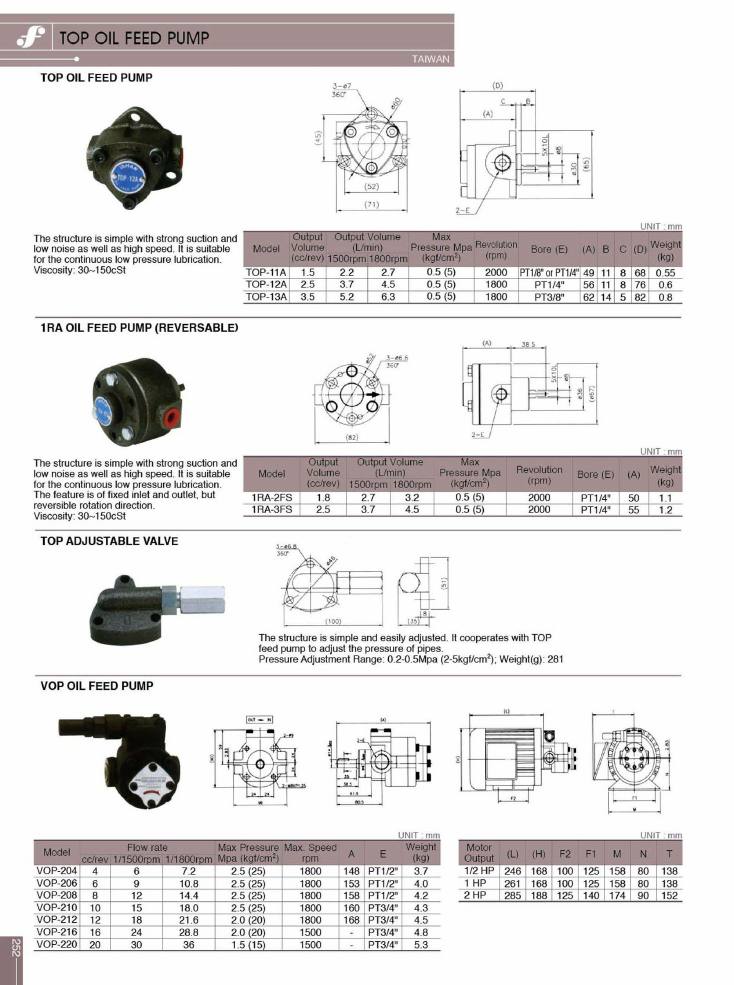

Frejoth accessory catalogue · Page 255
TOP OIL FEED PUMP
Models on this page
1RA-2FS1RA-3FSTOP-11ATOP-12ATOP-13AVOP-204VOP-206VOP-208VOP-210VOP-212VOP-216VOP-220
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
TOP OIL FEED PUMP
TOP · Taiwan
| model | output_volume_cc_rev | output_volume_l_min_1500rpm | output_volume_l_min_1800rpm | max_pressure_mpa_kgf_cm2 | revolution_rpm | bore_e | a | b | c | d | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TOP-11A | 1.5 | 2.2 | 2.7 | 0.5 (5) | 2000 | PT1/8" or PT1/4" | 49 | 11 | 8 | 68 | 0.55 |
| TOP-12A | 2.5 | 3.7 | 4.5 | 0.5 (5) | 1800 | PT1/4" | 56 | 11 | 8 | 76 | 0.6 |
| TOP-13A | 3.5 | 5.2 | 6.3 | 0.5 (5) | 1800 | PT3/8" | 62 | 14 | 5 | 82 | 0.8 |
| Code | Model |
|---|---|
| on request | TOP-11A |
| on request | TOP-12A |
| on request | TOP-13A |
The structure is simple with strong suction and low noise as well as high speed. It is suitable for the continuous low pressure lubrication. Viscosity: 30~150cSt
1RA OIL FEED PUMP (REVERSABLE)
1RA · Taiwan
| model | output_volume_cc_rev | output_volume_l_min_1500rpm | output_volume_l_min_1800rpm | max_pressure_mpa_kgf_cm2 | revolution_rpm | bore_e | a | weight_kg |
|---|---|---|---|---|---|---|---|---|
| 1RA-2FS | 1.8 | 2.7 | 3.2 | 0.5 (5) | 2000 | PT1/4" | 50 | 1.1 |
| 1RA-3FS | 2.5 | 3.7 | 4.5 | 0.5 (5) | 2000 | PT1/4" | 55 | 1.2 |
| Code | Model |
|---|---|
| on request | 1RA-2FS |
| on request | 1RA-3FS |
The structure is simple with strong suction and low noise as well as high speed. It is suitable for the continuous low pressure lubrication. The feature is of fixed inlet and outlet, but reversible rotation direction. Viscosity: 30~150cSt
TOP ADJUSTABLE VALVE
Taiwan
The structure is simple and easily adjusted. It cooperates with TOP feed pump to adjust the pressure of pipes. Pressure Adjustment Range: 0.2-0.5Mpa (2-5kgf/cm2); Weight(g): 281
VOP OIL FEED PUMP
VOP · Taiwan
| model | flow_rate_cc_rev | flow_rate_l_1500rpm | flow_rate_l_1800rpm | max_pressure_mpa_kgf_cm2 | max_speed_rpm | a | e | weight_kg |
|---|---|---|---|---|---|---|---|---|
| VOP-204 | 4 | 6 | 7.2 | 2.5 (25) | 1800 | 148 | PT1/2" | 3.7 |
| VOP-206 | 6 | 9 | 10.8 | 2.5 (25) | 1800 | 153 | PT1/2" | 4 |
| VOP-208 | 8 | 12 | 14.4 | 2.5 (25) | 1800 | 158 | PT1/2" | 4.2 |
| VOP-210 | 10 | 15 | 18 | 2.5 (25) | 1800 | 160 | PT3/4" | 4.3 |
| VOP-212 | 12 | 18 | 21.6 | 2.0 (20) | 1800 | 168 | PT3/4" | 4.5 |
| VOP-216 | 16 | 24 | 28.8 | 2.0 (20) | 1500 | — | PT3/4" | 4.8 |
| VOP-220 | 20 | 30 | 36 | 1.5 (15) | 1500 | — | PT3/4" | 5.3 |
| motor_output | l | h | f2 | f1 | m | n | t |
|---|---|---|---|---|---|---|---|
| 1/2 HP | 246 | 168 | 100 | 125 | 158 | 80 | 138 |
| 1 HP | 261 | 168 | 100 | 125 | 158 | 80 | 138 |
| 2 HP | 285 | 188 | 125 | 140 | 174 | 90 | 152 |
| Code | Model |
|---|---|
| on request | VOP-204 |
| on request | VOP-206 |
| on request | VOP-208 |
| on request | VOP-210 |
| on request | VOP-212 |
| on request | VOP-216 |
| on request | VOP-220 |
