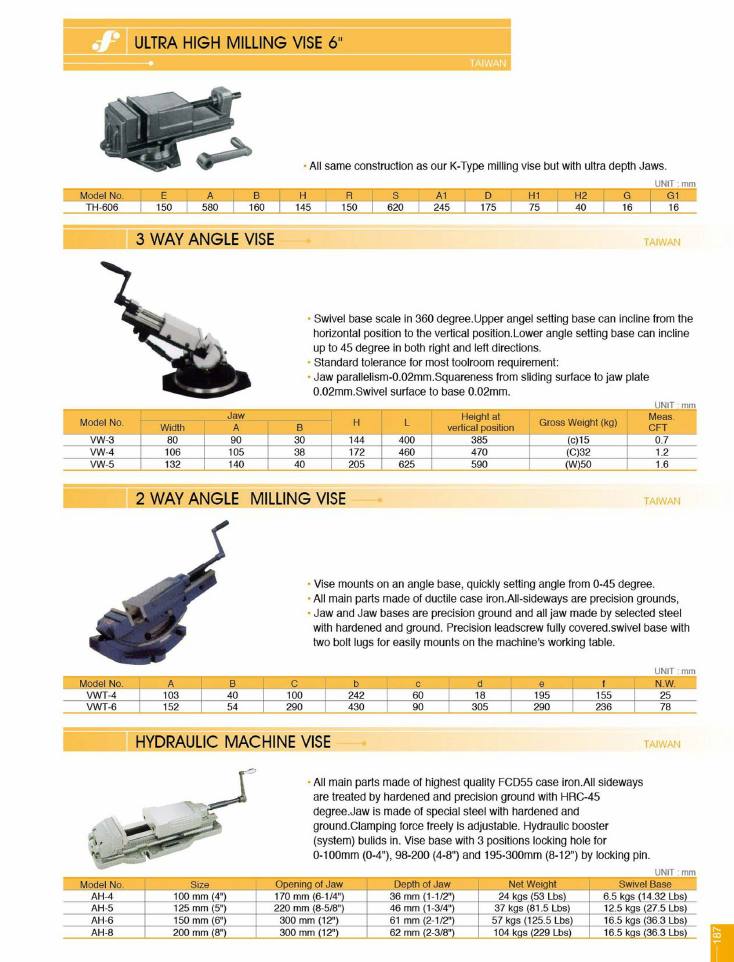

Frejoth accessory catalogue · Page 187
Ultra High Milling Vise 6"
Models on this page
AH-4AH-5AH-6AH-8TH-606VW-3VW-4VW-5VWT-4VWT-6
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Ultra High Milling Vise 6"
TH-606 · Taiwan
- All same construction as our K-Type milling vise but with ultra depth jaws.
| model_no | e | a | b | h | r | s | a1 | d | h1 | h2 | g | g1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TH-606 | 150 | 580 | 160 | 145 | 150 | 620 | 245 | 175 | 75 | 40 | 16 | 16 |
| Code | Model |
|---|---|
| on request | TH-606 |
3 Way Angle Vise
VW · Taiwan
- Swivel base scale in 360 degree. Upper angle setting base can incline from the horizontal position to the vertical position. Lower angle setting base can incline up to 45 degree in both right and left directions.
- Standard tolerance for most toolroom requirement:
- Jaw parallelism 0.02mm. Squareness from sliding surface to jaw plate 0.02mm. Swivel surface to base 0.02mm.
| model_no | jaw_width | jaw_a | jaw_b | h | l | height_at_vertical_position | gross_weight_kg | meas_cft |
|---|---|---|---|---|---|---|---|---|
| VW-3 | 80 | 90 | 30 | 144 | 400 | 385 | (c)15 | 0.7 |
| VW-4 | 106 | 105 | 38 | 172 | 460 | 470 | (C)32 | 1.2 |
| VW-5 | 132 | 140 | 40 | 205 | 625 | 590 | (W)50 | 1.6 |
| Code | Model |
|---|---|
| on request | VW-3 |
| on request | VW-4 |
| on request | VW-5 |
Jaw Width / A / B sit under a spanning 'Jaw' header; snake_cased to jaw_width / jaw_a / jaw_b. Gross weight cells carry a packing-type prefix in brackets, kept verbatim.
2 Way Angle Milling Vise
VWT · Taiwan
- Vise mounts on an angle base, quickly setting angle from 0-45 degree.
- All main parts made of ductile case iron. All sideways are precision ground.
- Jaw and jaw bases are precision ground and all jaw made by selected steel with hardened and ground. Precision leadscrew fully covered. Swivel base with two bolt lugs for easily mounts on the machine's working table.
| model_no | a | b | c_upper | b_lower | c_lower | d | e | f | n_w |
|---|---|---|---|---|---|---|---|---|---|
| VWT-4 | 103 | 40 | 100 | 242 | 60 | 18 | 195 | 155 | 25 |
| VWT-6 | 152 | 54 | 290 | 430 | 90 | 305 | 290 | 236 | 78 |
| Code | Model |
|---|---|
| on request | VWT-4 |
| on request | VWT-6 |
The page prints both upper-case (A, B, C) and lower-case (b, c, d, e, f) column letters as distinct columns; disambiguated here as c_upper / b_lower / c_lower.
Hydraulic Machine Vise
AH · Taiwan
- All main parts made of highest quality FCD55 case iron. All sideways are treated by hardened and precision ground with HRC-45 degree.
- Jaw is made of special steel with hardened and ground.
- Clamping force freely is adjustable. Hydraulic booster (system) builds in.
- Vise base with 3 positions locking hole for 0-100mm (0-4"), 98-200 (4-8") and 195-300mm (8-12") by locking pin.
| model_no | size | opening_of_jaw | depth_of_jaw | net_weight | swivel_base |
|---|---|---|---|---|---|
| AH-4 | 100 mm (4") | 170 mm (6-1/4") | 36 mm (1-1/2") | 24 kgs (53 Lbs) | 6.5 kgs (14.32 Lbs) |
| AH-5 | 125 mm (5") | 220 mm (8-5/8") | 46 mm (1-3/4") | 37 kgs (81.5 Lbs) | 12.5 kgs (27.5 Lbs) |
| AH-6 | 150 mm (6") | 300 mm (12") | 61 mm (2-1/2") | 57 kgs (125.5 Lbs) | 16.5 kgs (36.3 Lbs) |
| AH-8 | 200 mm (8") | 300 mm (12") | 62 mm (2-3/8") | 104 kgs (229 Lbs) | 16.5 kgs (36.3 Lbs) |
| Code | Model |
|---|---|
| on request | AH-4 |
| on request | AH-5 |
| on request | AH-6 |
| on request | AH-8 |
All cells print metric with the imperial equivalent in brackets; kept as printed strings.
