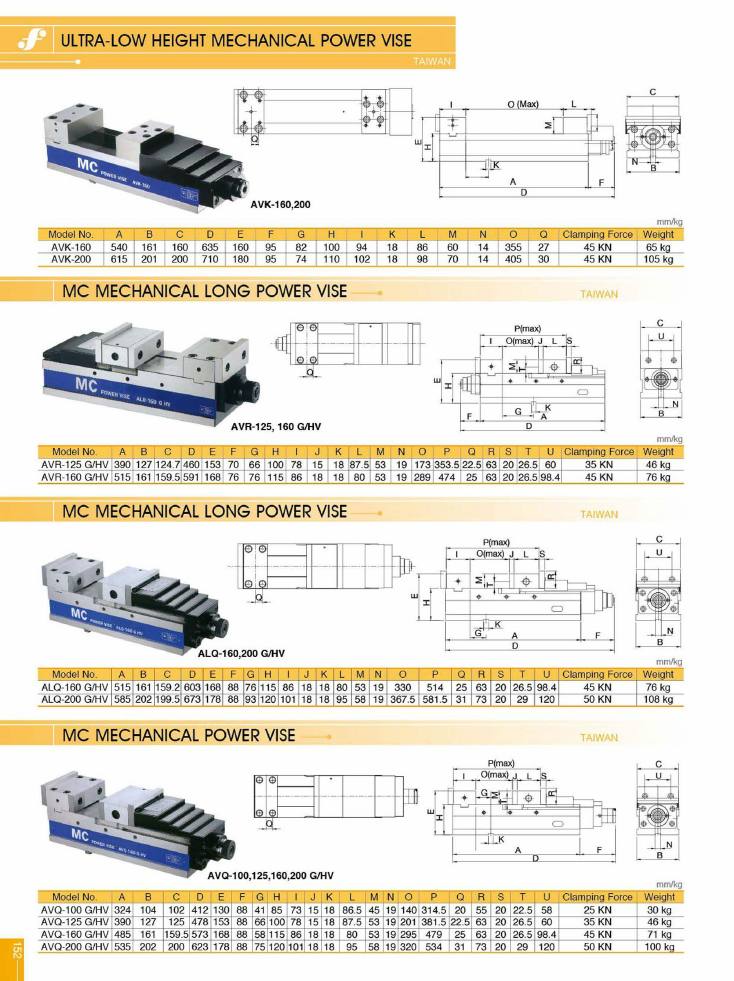

Ultra-Low Height Mechanical Power Vise

Models on this page

ALQ-160 G/HVALQ-200 G/HVAVK-160AVK-200AVQ-100 G/HVAVQ-125 G/HVAVQ-160 G/HVAVQ-200 G/HVAVR-125 G/HVAVR-160 G/HV

Send us your details and we'll come back with pricing, availability and specifications.

AVK · Taiwan

specifications (mm/kg)
model_no	a	b	c	d	e	f	g	h	i	k	l	m	n	o	q	clamping_force_kn	weight_kg
AVK-160	540	161	160	635	160	95	82	100	94	18	86	60	14	355	27	45	65
AVK-200	615	201	200	710	180	95	74	110	102	18	98	70	14	405	30	45	105

Order references
Code	Model
on request	AVK-160
on request	AVK-200

Illustrated variants: AVK-160,200. Drawing labels O (Max).

AVR · Taiwan

specifications (mm/kg)
model_no	a	b	c	d	e	f	g	h	i	j	k	l	m	n	o	p	q	r	s	t	u	clamping_force_kn	weight_kg
AVR-125 G/HV	390	127	124.7	460	153	70	66	100	78	15	18	87.5	53	19	173	353.5	22.5	63	20	26.5	60	35	46
AVR-160 G/HV	515	161	159.5	591	168	76	76	115	86	18	18	80	53	19	289	474	25	63	20	26.5	98.4	45	76

Illustrated variants: AVR-125, 160 G/HV. Drawing labels O(max) and P(max).

ALQ · Taiwan

specifications (mm/kg)
model_no	a	b	c	d	e	f	g	h	i	j	k	l	m	n	o	p	q	r	s	t	u	clamping_force_kn	weight_kg
ALQ-160 G/HV	515	161	159.2	603	168	88	76	115	86	18	18	80	53	19	330	514	25	63	20	26.5	98.4	45	76
ALQ-200 G/HV	585	202	199.5	673	178	88	93	120	101	18	18	95	58	19	367.5	581.5	31	73	20	29	120	50	108

Illustrated variants: ALQ-160,200 G/HV. Drawing labels O(max) and P(max).

AVQ · Taiwan

specifications (mm/kg)
model_no	a	b	c	d	e	f	g	h	i	j	k	l	m	n	o	p	q	r	s	t	u	clamping_force_kn	weight_kg
AVQ-100 G/HV	324	104	102	412	130	88	41	85	73	15	18	86.5	45	19	140	314.5	20	55	20	22.5	58	25	30
AVQ-125 G/HV	390	127	125	478	153	88	66	100	78	15	18	87.5	53	19	201	381.5	22.5	63	20	26.5	60	35	46
AVQ-160 G/HV	485	161	159.5	573	168	88	58	115	86	18	18	80	53	19	295	479	25	63	20	26.5	98.4	45	71
AVQ-200 G/HV	535	202	200	623	178	88	75	120	101	18	18	95	58	19	320	534	31	73	20	29	120	50	100

Illustrated variants: AVQ-100,125,160,200 G/HV. Drawing labels O(max) and P(max).
