UNIVERSAL BITS HOLDER FOR ANY SIZES OF CNC BITS

THD · Taiwan

CUTTING TOOL STORAGE CABINETS WITH DOOR
Lockable door.
3 tiers can be placed horizontal or at 25˚ angle.

storage_unit_dimensions (mm)
model	dimensions_as_printed	width_w	depth_d	height_h
TW-1F	892W x 634D x 1704H mm	892	634	1704
TW-2F	892W x 634D x 1704H mm	892	634	1704
THD-3B	880W x 400D x 880H mm	880	400	880

tool_cart_holder_dimensions (mm)
model	dimensions_as_printed	width_w	depth_d	height_h
BT-30	64W x 137D x 48H mm	64	137	48
BT-40	74W x 137D x 63H mm	74	137	63
BT-50	104W x 137D x 93H mm	104	137	93
HSK-63	84W x 137D x 49H mm	84	137	49

holder_capacity (pcs)
model_no	single_row	tw_1f	tw_2f	thd3b
BT-30	8	64	128	11
BT-40	7	56	112	10
BT-50	5	40	80	7
HSK-63	6	48	96	9

Order references
Code	Model
on request	TW-1F
on request	TW-2F
on request	THD-3B
on request	BT-30
on request	BT-40
on request	BT-50
on request	HSK-63

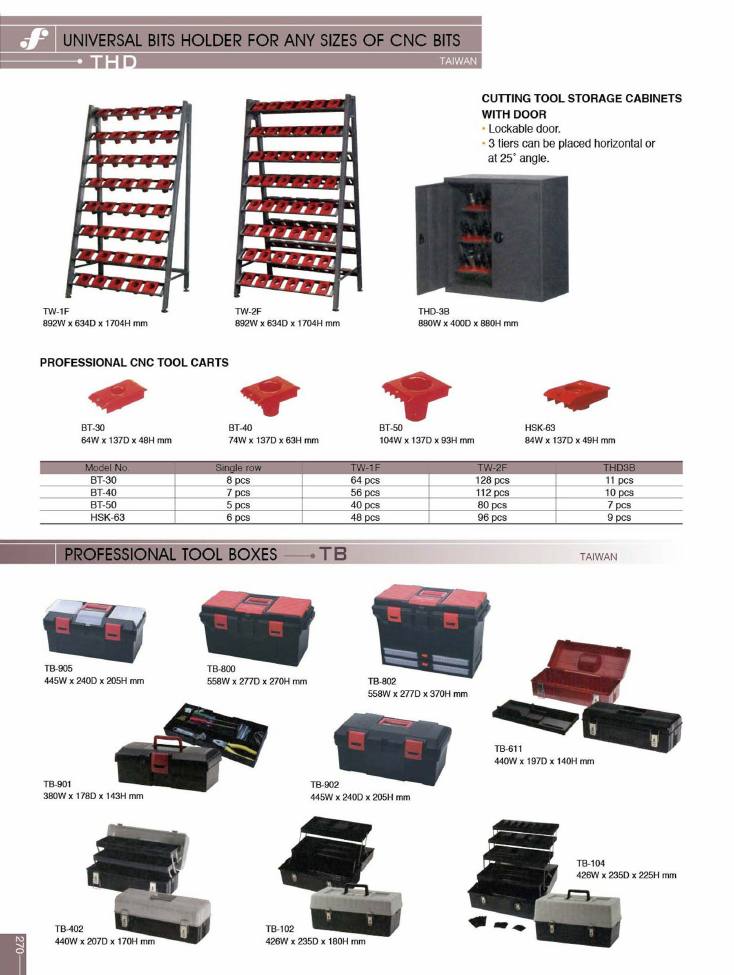

Racks TW-1F and TW-2F plus lockable cabinet THD-3B, followed by a sub-heading 'PROFESSIONAL CNC TOOL CARTS' over four taper-holder inserts (BT-30, BT-40, BT-50, HSK-63) and a capacity table giving how many of each holder fit a single row, TW-1F, TW-2F and THD3B.

PROFESSIONAL TOOL BOXES

TB · Taiwan

tool_box_dimensions (mm)
model	dimensions_as_printed	width_w	depth_d	height_h
TB-905	445W x 240D x 205H mm	445	240	205
TB-800	558W x 277D x 270H mm	558	277	270
TB-802	558W x 277D x 370H mm	558	277	370
TB-611	440W x 197D x 140H mm	440	197	140
TB-901	380W x 178D x 143H mm	380	178	143
TB-902	445W x 240D x 205H mm	445	240	205
TB-402	440W x 207D x 170H mm	440	207	170
TB-102	426W x 235D x 180H mm	426	235	180
TB-104	426W x 235D x 225H mm	426	235	225

Order references
Code	Model
on request	TB-905
on request	TB-800
on request	TB-802
on request	TB-611
on request	TB-901
on request	TB-902
on request	TB-402
on request	TB-102
on request	TB-104

Photo spread of plastic tool boxes; each carries only a model number and overall dimensions. No order codes and no spec table beyond dimensions.
