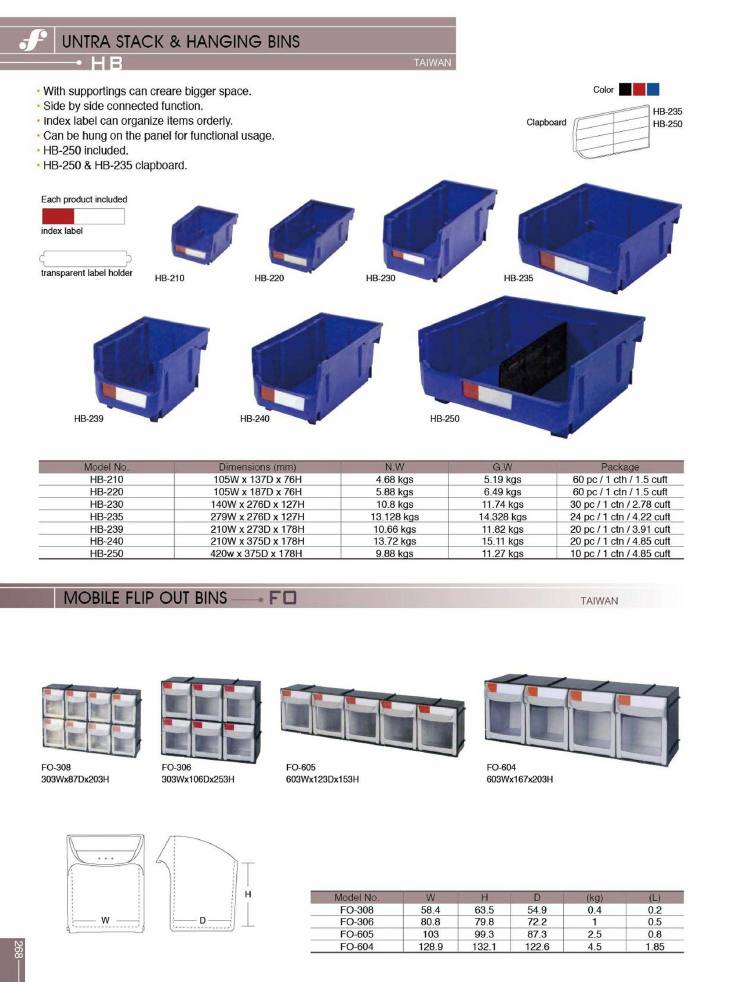

Frejoth accessory catalogue · Page 271
UNTRA STACK & HANGING BINS
Models on this page
FO-306FO-308FO-604FO-605HB-210HB-220HB-230HB-235HB-239HB-240HB-250
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
UNTRA STACK & HANGING BINS
HB · TAIWAN
- With supportings can creare bigger space.
- Side by side connected function.
- Index label can organize items orderly.
- Can be hung on the panel for functional usage.
- HB-250 included.
- HB-250 & HB-235 clapboard.
| model_no | dimensions_mm | nw | gw | package |
|---|---|---|---|---|
| HB-210 | 105W x 137D x 76H | 4.68 kgs | 5.19 kgs | 60 pc / 1 cth / 1.5 cuft |
| HB-220 | 105W x 187D x 76H | 5.88 kgs | 6.49 kgs | 60 pc / 1 ctn / 1.5 cuft |
| HB-230 | 140W x 276D x 127H | 10.8 kgs | 11.74 kgs | 30 pc / 1 ctn / 2.78 cuft |
| HB-235 | 279W x 276D x 127H | 13.128 kgs | 14.328 kgs | 24 pc / 1 ctn / 4.22 cuft |
| HB-239 | 210W x 273D x 178H | 10.66 kgs | 11.82 kgs | 20 pc / 1 ctn / 3.91 cuft |
| HB-240 | 210W x 375D x 178H | 13.72 kgs | 15.11 kgs | 20 pc / 1 ctn / 4.85 cuft |
| HB-250 | 420w x 375D x 178H | 9.88 kgs | 11.27 kgs | 10 pc / 1 ctn / 4.85 cuft |
| Code | Model |
|---|---|
| on request | HB-210 |
| on request | HB-220 |
| on request | HB-230 |
| on request | HB-235 |
| on request | HB-239 |
| on request | HB-240 |
| on request | HB-250 |
Available in three colours (black, red, blue). Each product includes an index label and a transparent label holder. A clapboard (divider) is shown for HB-235 and HB-250.
MOBILE FLIP OUT BINS
FO · TAIWAN
| model_no | overall_size |
|---|---|
| FO-308 | 303Wx87Dx203H |
| FO-306 | 303Wx106Dx253H |
| FO-605 | 603Wx123Dx153H |
| FO-604 | 603Wx167x203H |
| model_no | w | h | d | kg | l |
|---|---|---|---|---|---|
| FO-308 | 58.4 | 63.5 | 54.9 | 0.4 | 0.2 |
| FO-306 | 80.8 | 79.8 | 72.2 | 1 | 0.5 |
| FO-605 | 103 | 99.3 | 87.3 | 2.5 | 0.8 |
| FO-604 | 128.9 | 132.1 | 122.6 | 4.5 | 1.85 |
| Code | Model |
|---|---|
| on request | FO-308 |
| on request | FO-306 |
| on request | FO-605 |
| on request | FO-604 |
Overall cabinet sizes are printed as captions under each photograph; the table gives the individual drawer W / H / D with weight and volume.
