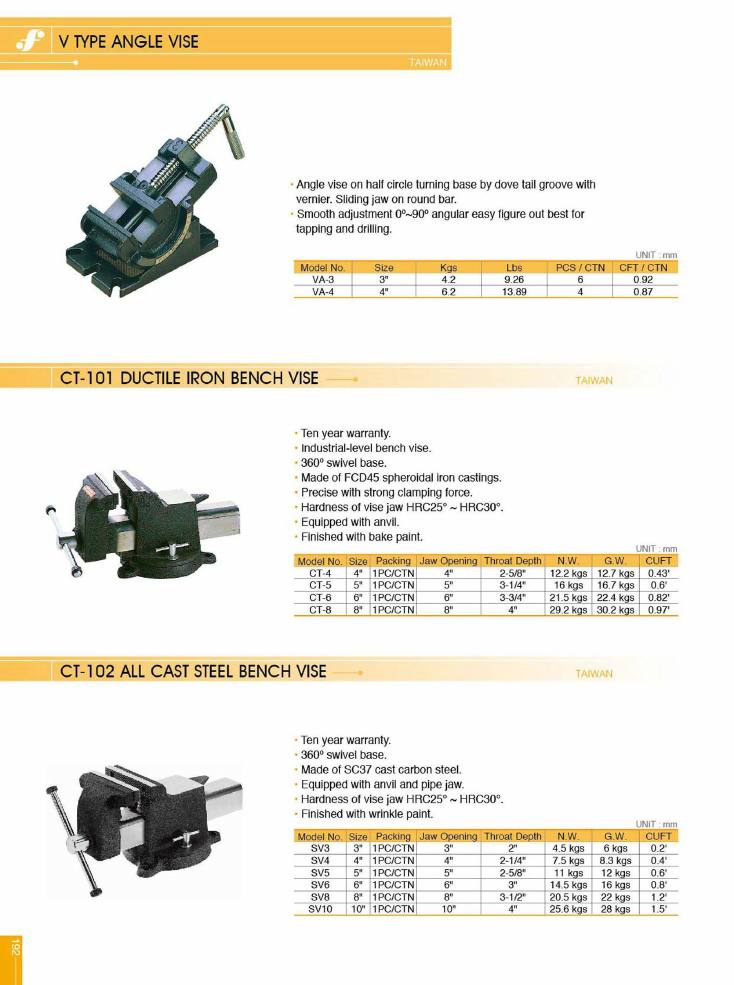

Frejoth accessory catalogue · Page 195
V TYPE ANGLE VISE
Models on this page
CT-4CT-5CT-6CT-8SV10SV3SV4SV5SV6SV8VA-3VA-4
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
V TYPE ANGLE VISE
VA · Taiwan
- Angle vise on half circle turning base by dove tail groove with vernier. Sliding jaw on round bar.
- Smooth adjustment 0º~90º angular easy figure out best for tapping and drilling.
| model_no | size | kgs | lbs | pcs_ctn | cft_ctn |
|---|---|---|---|---|---|
| VA-3 | 3" | 4.2 | 9.26 | 6 | 0.92 |
| VA-4 | 4" | 6.2 | 13.89 | 4 | 0.87 |
| Code | Model |
|---|---|
| on request | VA-3 |
| on request | VA-4 |
CT-101 DUCTILE IRON BENCH VISE
CT · Taiwan
- Ten year warranty.
- Industrial-level bench vise.
- 360º swivel base.
- Made of FCD45 spheroidal iron castings.
- Precise with strong clamping force.
- Hardness of vise jaw HRC25° ~ HRC30°.
- Equipped with anvil.
- Finished with bake paint.
| model_no | size | packing | jaw_opening | throat_depth | nw_kgs | gw_kgs | cuft |
|---|---|---|---|---|---|---|---|
| CT-4 | 4" | 1PC/CTN | 4" | 2-5/8" | 12.2 | 12.7 | 0.43 |
| CT-5 | 5" | 1PC/CTN | 5" | 3-1/4" | 16 | 16.7 | 0.6 |
| CT-6 | 6" | 1PC/CTN | 6" | 3-3/4" | 21.5 | 22.4 | 0.82 |
| CT-8 | 8" | 1PC/CTN | 8" | 4" | 29.2 | 30.2 | 0.97 |
| Code | Model |
|---|---|
| on request | CT-4 |
| on request | CT-5 |
| on request | CT-6 |
| on request | CT-8 |
CT-102 ALL CAST STEEL BENCH VISE
SV · Taiwan
- Ten year warranty.
- 360º swivel base.
- Made of SC37 cast carbon steel.
- Equipped with anvil and pipe jaw.
- Hardness of vise jaw HRC25° ~ HRC30°.
- Finished with wrinkle paint.
| model_no | size | packing | jaw_opening | throat_depth | nw_kgs | gw_kgs | cuft |
|---|---|---|---|---|---|---|---|
| SV3 | 3" | 1PC/CTN | 3" | 2" | 4.5 | 6 | 0.2 |
| SV4 | 4" | 1PC/CTN | 4" | 2-1/4" | 7.5 | 8.3 | 0.4 |
| SV5 | 5" | 1PC/CTN | 5" | 2-5/8" | 11 | 12 | 0.6 |
| SV6 | 6" | 1PC/CTN | 6" | 3" | 14.5 | 16 | 0.8 |
| SV8 | 8" | 1PC/CTN | 8" | 3-1/2" | 20.5 | 22 | 1.2 |
| SV10 | 10" | 1PC/CTN | 10" | 4" | 25.6 | 28 | 1.5 |
| Code | Model |
|---|---|
| on request | SV3 |
| on request | SV4 |
| on request | SV5 |
| on request | SV6 |
| on request | SV8 |
| on request | SV10 |
