Vertical Dovetail Slide Table, Vertical Dovetail Slide Table (Straight), Vertical Dovetail Slide Table (Crosswise)
Models on this page
STD-100STD-130STD-150STD-200STD-2075STD-250STDC-100STDC-150STDS-100STDS-150
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Vertical Dovetail Slide Table, Vertical Dovetail Slide Table (Straight), Vertical Dovetail Slide Table (Crosswise)
STD/STDS/STDC · Taiwan
- Material: over FC-30.
- Precision: // L 0.015MM(300L).
- Feature: The sliding surfaces are treated by Heat-treatment & precision grind.
| model | a | b | c | d | e | f | g | h | i | j | k | l | roller_and_dial_graduation | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STD-100 | 100 | 255 | 150 | 35 | 130 | 70 | 60 | 134 | 15 | 15 | 26 | Ø11 x 4 | — | 14 |
| STD-130 | 130 | 265 | 165 | 40 | 135 | 100 | 60 | 134 | 20 | 15 | 28 | Ø11 x 4 | — | 18 |
| STD-150 | 150 | 385 | 200 | 40 | 185 | 110 | 90 | 165 | 20 | 20 | 35 | Ø13 x 4 | — | 34 |
| STD-200 | 200 | 510 | 250 | 60 | 212 | 160 | 130 | 165 | 20 | 20 | 40 | Ø17 x 4 | — | 67 |
| STD-2075 | 200 | 750 | 250 | 60 | 212 | 160 | 130 | 165 | 20 | 20 | 40 | Ø17 x 4 | — | — |
| STD-250 | 250 | 600 | 300 | 60 | 280 | 200 | 160 | 190 | 25 | 25 | 40 | Ø17 x 4 | — | 100 |
| STDS-100 | 100 | 270 | 150 | 35 | 130 | 45 | 65 | 290 | — | — | 117.5 | 300↑ | Ø19 x 4mm / 0.02mm | 23 |
| STDS-150 | 150 | 400 | 200 | 40 | 185 | 50 | 75 | 425 | — | — | 166.5 | 300↑ | Ø22 x 4mm / 0.02mm | 46 |
| STDC-100 | 100 | 270 | 150 | 35 | 125 | 45 | 65 | 290 | — | — | 117.5 | 300↑ | Ø19 x 4mm / 0.02mm | 25 |
| STDC-150 | 150 | 400 | 200 | 40 | 185 | 50 | 80 | 430 | — | — | 166.5 | 300↑ | Ø22 x 4mm / 0.02mm | 51 |
| Code | Model |
|---|---|
| on request | STD-100 |
| on request | STD-130 |
| on request | STD-150 |
| on request | STD-200 |
| on request | STD-2075 |
| on request | STD-250 |
| on request | STDS-100 |
| on request | STDS-150 |
| on request | STDC-100 |
| on request | STDC-150 |

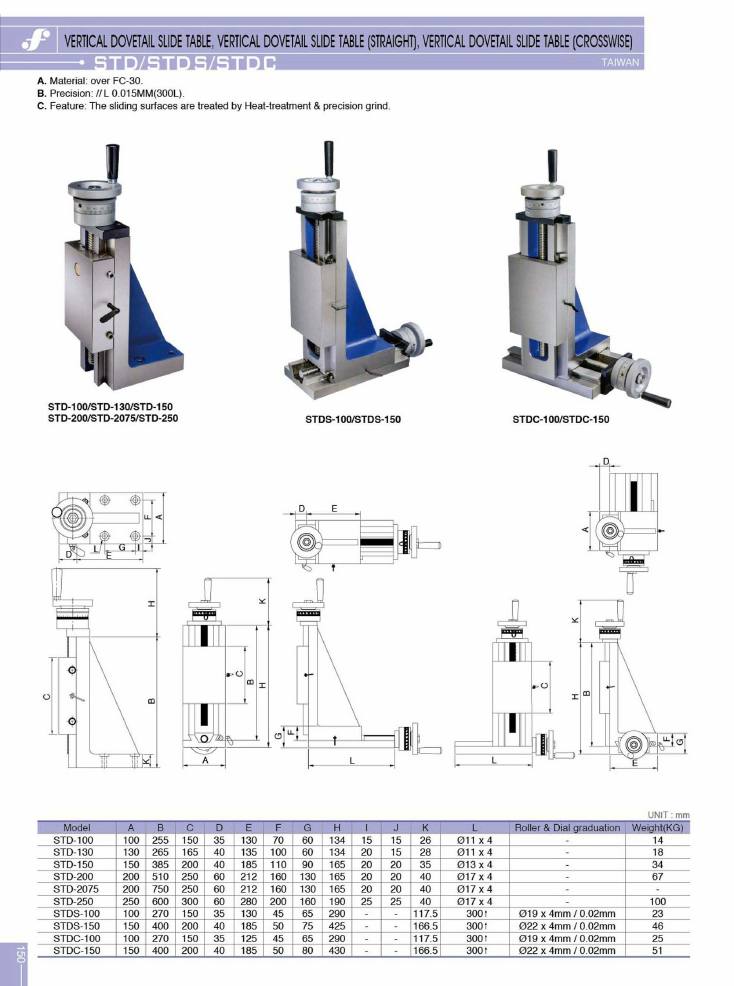

Illustrated variants: STD-100/STD-130/STD-150 and STD-200/STD-2075/STD-250 (vertical dovetail); STDS-100/STDS-150 (straight); STDC-100/STDC-150 (crosswise).
