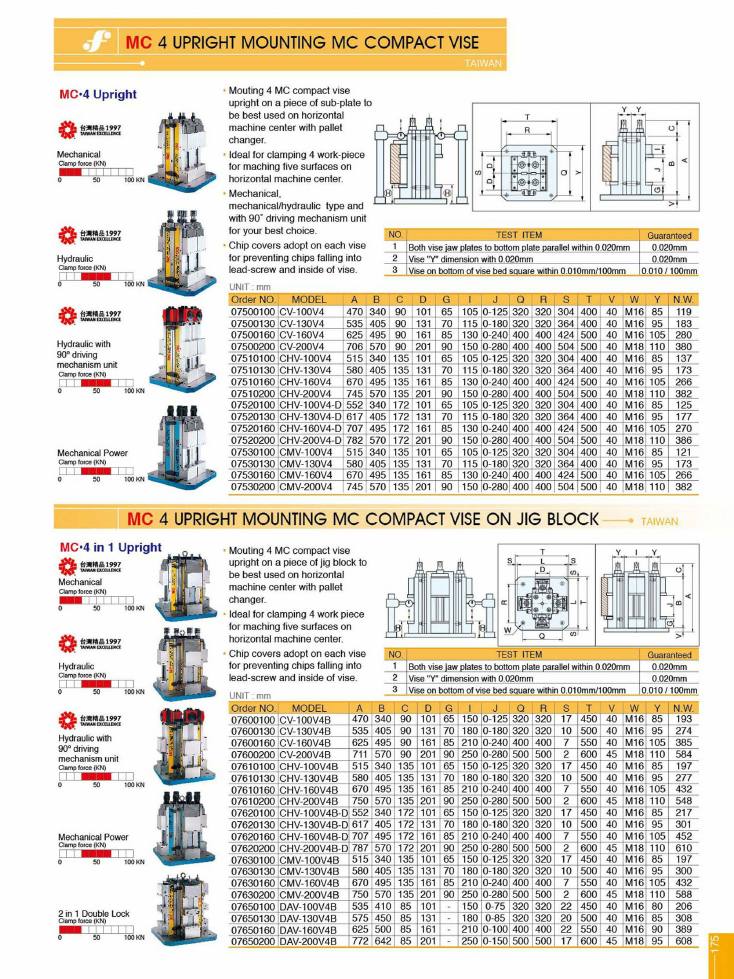

MC 4 Upright Mounting MC Compact Vise

MC·4 Upright · Taiwan

Mouting 4 MC compact vise upright on a piece of sub-plate to be best used on horizontal machine center with pallet changer.
Ideal for clamping 4 work-piece for maching five surfaces on horizontal machine center.
Mechanical, mechanical/hydraulic type and with 90° driving mechanism unit for your best choice.
Chip covers adopt on each vise for preventing chips falling into lead-screw and inside of vise.

dimensions (mm)
order_no	model	a	b	c	d	g	i	j	q	r	s	t	v	w	y	n_w
07500100	CV-100V4	470	340	90	101	65	105	0-125	320	320	304	400	40	M16	85	119
07500130	CV-130V4	535	405	90	131	70	115	0-180	320	320	364	400	40	M16	95	183
07500160	CV-160V4	625	495	90	161	85	130	0-240	400	400	424	500	40	M16	105	280
07500200	CV-200V4	706	570	90	201	90	150	0-280	400	400	504	500	40	M18	110	380
07510100	CHV-100V4	515	340	135	101	65	105	0-125	320	320	304	400	40	M16	85	137
07510130	CHV-130V4	580	405	135	131	70	115	0-180	320	320	364	400	40	M16	95	173
07510160	CHV-160V4	670	495	135	161	85	130	0-240	400	400	424	500	40	M16	105	266
07510200	CHV-200V4	745	570	135	201	90	150	0-280	400	400	504	500	40	M18	110	382
07520100	CHV-100V4-D	552	340	172	101	65	105	0-125	320	320	304	400	40	M16	85	125
07520130	CHV-130V4-D	617	405	172	131	70	115	0-180	320	320	364	400	40	M16	95	177
07520160	CHV-160V4-D	707	495	172	161	85	130	0-240	400	400	424	500	40	M16	105	270
07520200	CHV-200V4-D	782	570	172	201	90	150	0-280	400	400	504	500	40	M18	110	386
07530100	CMV-100V4	515	340	135	101	65	105	0-125	320	320	304	400	40	M16	85	121
07530130	CMV-130V4	580	405	135	131	70	115	0-180	320	320	364	400	40	M16	95	173
07530160	CMV-160V4	670	495	135	161	85	130	0-240	400	400	424	500	40	M16	105	266
07530200	CMV-200V4	745	570	135	201	90	150	0-280	400	400	504	500	40	M18	110	382

test_items
no	test_item	guaranteed
1	Both vise jaw plates to bottom plate parallel within 0.020mm	0.020mm
2	Vise "Y" dimension with 0.020mm	0.020mm
3	Vise on bottom of vise bed square within 0.010mm/100mm	0.010 / 100mm

Order references
Code	Model
07500100	CV-100V4
07500130	CV-130V4
07500160	CV-160V4
07500200	CV-200V4
07510100	CHV-100V4
07510130	CHV-130V4
07510160	CHV-160V4
07510200	CHV-200V4
07520100	CHV-100V4-D
07520130	CHV-130V4-D
07520160	CHV-160V4-D
07520200	CHV-200V4-D
07530100	CMV-100V4
07530130	CMV-130V4
07530160	CMV-160V4
07530200	CMV-200V4

Clamp force 100 KN. Variants illustrated: Mechanical, Hydraulic, Hydraulic with 90° driving mechanism unit, Mechanical Power.

MC 4 Upright Mounting MC Compact Vise on Jig Block

MC·4 in 1 Upright · Taiwan

Mouting 4 MC compact vise upright on a piece of jig block to be best used on horizontal machine center with pallet changer.
Ideal for clamping 4 work piece for maching five surfaces on horizontal machine center.
Chip covers adopt on each vise for preventing chips falling into lead-screw and inside of vise.

dimensions (mm)
order_no	model	a	b	c	d	g	i	j	q	r	s	t	v	w	y	n_w
07600100	CV-100V4B	470	340	90	101	65	150	0-125	320	320	17	450	40	M16	85	193
07600130	CV-130V4B	535	405	90	131	70	180	0-180	320	320	10	500	40	M16	95	274
07600160	CV-160V4B	625	495	90	161	85	210	0-240	400	400	7	550	40	M16	105	385
07600200	CV-200V4B	711	570	90	201	90	250	0-280	500	500	2	600	45	M18	110	584
07610100	CHV-100V4B	515	340	135	101	65	150	0-125	320	320	17	450	40	M16	85	197
07610130	CHV-130V4B	580	405	135	131	70	180	0-180	320	320	10	500	40	M16	95	277
07610160	CHV-160V4B	670	495	135	161	85	210	0-240	400	400	7	550	40	M16	105	432
07610200	CHV-200V4B	750	570	135	201	90	250	0-280	500	500	2	600	45	M18	110	548
07620100	CHV-100V4B-D	552	340	172	101	65	150	0-125	320	320	17	450	40	M16	85	217
07620130	CHV-130V4B-D	617	405	172	131	70	180	0-180	320	320	10	500	40	M16	95	301
07620160	CHV-160V4B-D	707	495	172	161	85	210	0-240	400	400	7	550	40	M16	105	452
07620200	CHV-200V4B-D	787	570	172	201	90	250	0-280	500	500	2	600	45	M18	110	610
07630100	CMV-100V4B	515	340	135	101	65	150	0-125	320	320	17	450	40	M16	85	197
07630130	CMV-130V4B	580	405	135	131	70	180	0-180	320	320	10	500	40	M16	95	300
07630160	CMV-160V4B	670	495	135	161	85	210	0-240	400	400	7	550	40	M16	105	432
07630200	CMV-200V4B	750	570	135	201	90	250	0-280	500	500	2	600	45	M18	110	588
07650100	DAV-100V4B	535	410	85	101	—	150	0-75	320	320	22	450	40	M16	80	206
07650130	DAV-130V4B	575	450	85	131	—	180	0-85	320	320	20	500	40	M16	85	308
07650160	DAV-160V4B	625	500	85	161	—	210	0-100	400	400	22	550	40	M16	90	389
07650200	DAV-200V4B	772	642	85	201	—	250	0-150	500	500	17	600	45	M18	95	608

test_items
no	test_item	guaranteed
1	Both vise jaw plates to bottom plate parallel within 0.020mm	0.020mm
2	Vise "Y" dimension with 0.020mm	0.020mm
3	Vise on bottom of vise bed square within 0.010mm/100mm	0.010 / 100mm

Order references
Code	Model
07600100	CV-100V4B
07600130	CV-130V4B
07600160	CV-160V4B
07600200	CV-200V4B
07610100	CHV-100V4B
07610130	CHV-130V4B
07610160	CHV-160V4B
07610200	CHV-200V4B
07620100	CHV-100V4B-D
07620130	CHV-130V4B-D
07620160	CHV-160V4B-D
07620200	CHV-200V4B-D
07630100	CMV-100V4B
07630130	CMV-130V4B
07630160	CMV-160V4B
07630200	CMV-200V4B
07650100	DAV-100V4B
07650130	DAV-130V4B
07650160	DAV-160V4B
07650200	DAV-200V4B

Clamp force 100 KN. Variants illustrated: Mechanical, Hydraulic, Hydraulic with 90° driving mechanism unit, Mechanical Power, 2 in 1 Double Lock.
