Waterproof LED work lamps

Models on this page

GS-102GS-103GS-104GS-108GWL-113GWL-118GWL-124GWL-136GWL-140GWL-L113GWL-L118GWL-L124GWL-L136GWL-L140

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

GWL-L Waterproof Projector LED Lamp

GWL-L · Taiwan

illumination_distance
type	illumination_distance
GWL-L113	1.4m / 500 Lux
GWL-L118	1.6m / 500 Lux
GWL-L124	2.0m / 500 Lux
GWL-L136	2.2m / 500 Lux
GWL-L140	5.0m / 500 Lux

specifications (mm)
type	material	lamp_length_a	lamp_length_b	lamp_length_c	w	v	enclosure_ip
GWL-L113	G / A	449	414	464	9W	DC 24V / AC 100V-240V	IP67
GWL-L118	G / A	520	485	535	9W	DC 24V / AC 100V-240V	IP67
GWL-L124	G / A	670	635	685	18W	DC 24V / AC 100V-240V	IP67
GWL-L136	G / A	735	700	750	18W	DC 24V / AC 100V-240V	IP67
GWL-L140	G / A	1265	1230	1280	36W	DC 24V / AC 100V-240V	IP67

cable_gland_options
ref	description
A	Metal cable gland
B	Nylon quick connectors
C	90° Metal cable gland
D	Ordinary cable gland

Order references
Code	Model
on request	GWL-L113
on request	GWL-L118
on request	GWL-L124
on request	GWL-L136
on request	GWL-L140

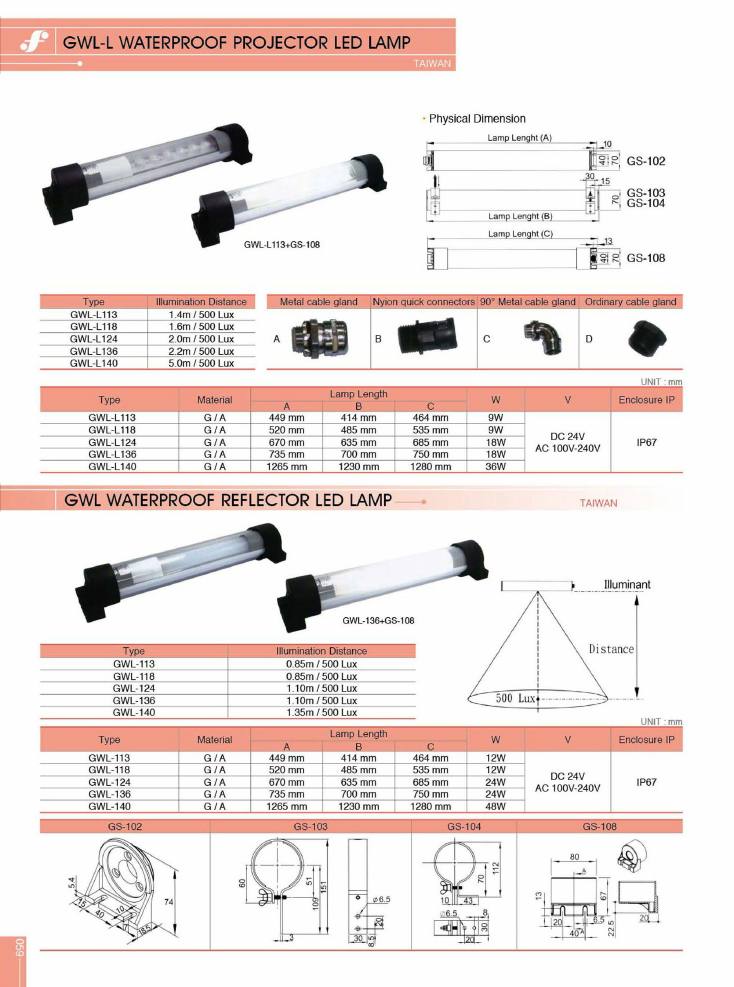

Shown as GWL-L113+GS-108. Lamp length depends on mounting bracket: A = with GS-102, B = with GS-103 / GS-104, C = with GS-108. Bracket end-plate projections: GS-102 10 mm, GS-103/GS-104 30 and 15 mm, GS-108 13 mm; lamp body 40 mm within 70 mm overall height. Cable gland options: A Metal cable gland, B Nylon quick connectors, C 90° Metal cable gland, D Ordinary cable gland.

GWL Waterproof Reflector LED Lamp

GWL · Taiwan

illumination_distance
type	illumination_distance
GWL-113	0.85m / 500 Lux
GWL-118	0.85m / 500 Lux
GWL-124	1.10m / 500 Lux
GWL-136	1.10m / 500 Lux
GWL-140	1.35m / 500 Lux

specifications (mm)
type	material	lamp_length_a	lamp_length_b	lamp_length_c	w	v	enclosure_ip
GWL-113	G / A	449	414	464	12W	DC 24V / AC 100V-240V	IP67
GWL-118	G / A	520	485	535	12W	DC 24V / AC 100V-240V	IP67
GWL-124	G / A	670	635	685	24W	DC 24V / AC 100V-240V	IP67
GWL-136	G / A	735	700	750	24W	DC 24V / AC 100V-240V	IP67
GWL-140	G / A	1265	1230	1280	48W	DC 24V / AC 100V-240V	IP67

Order references
Code	Model
on request	GWL-113
on request	GWL-118
on request	GWL-124
on request	GWL-136
on request	GWL-140

Shown as GWL-136+GS-108. Illumination distance measured to the 500 Lux cone from the illuminant. Lamp length A/B/C as per the mounting bracket, same as the GWL-L series.

GS mounting brackets for GWL / GWL-L lamps

GS · Taiwan

bracket_types
type	lamp_length_column_used
GS-102	A
GS-103	B
GS-104	B
GS-108	C

Order references
Code	Model
on request	GS-102
on request	GS-103
on request	GS-104
on request	GS-108

Four bracket types drawn at the foot of the page. GS-102 flange base: 5.4, 15, 40, 10, 18.5, height 74. GS-103 clamp: 60, 51, 151, 109, ø6.5, 30, 8.5, 20, 3. GS-104 clamp: 70, 112, 10, 43, ø6.5, 8, 30, 20. GS-108 end cap: 80, 13, 67, 20, 6.5, 40, 22.5, 20.
