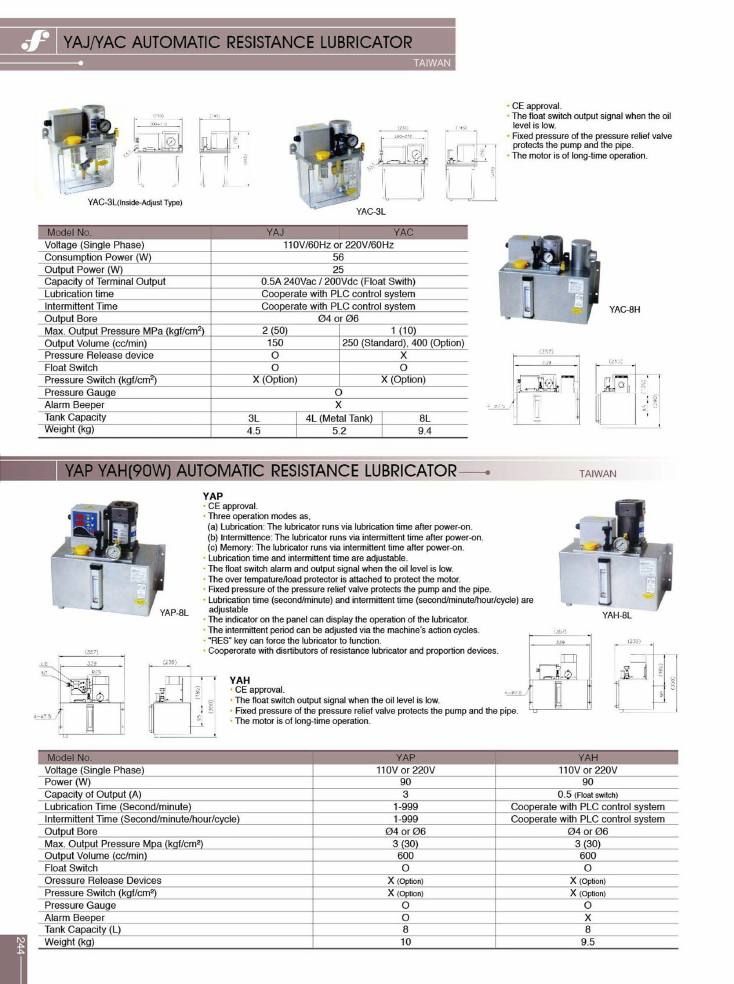

Frejoth accessory catalogue · Page 247
YAJ/YAC AUTOMATIC RESISTANCE LUBRICATOR
Models on this page
YACYAHYAJYAP
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
YAJ/YAC AUTOMATIC RESISTANCE LUBRICATOR
YAJ/YAC · TAIWAN
- CE approval.
- The float switch output signal when the oil level is low.
- Fixed pressure of the pressure relief valve protects the pump and the pipe.
- The motor is of long-time operation.
| model_no | voltage_single_phase | consumption_power_w | output_power_w | capacity_of_terminal_output | lubrication_time | intermittent_time | output_bore | max_output_pressure_mpa_kgf_cm2 | output_volume_cc_min | pressure_release_device | float_switch | pressure_switch_kgf_cm2 | pressure_gauge | alarm_beeper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YAJ | 110V/60Hz or 220V/60Hz | 56 | 25 | 0.5A 240Vac / 200Vdc (Float Swith) | Cooperate with PLC control system | Cooperate with PLC control system | Ø4 or Ø6 | 2 (50) | 150 | O | O | X (Option) | O | X |
| YAC | 110V/60Hz or 220V/60Hz | 56 | 25 | 0.5A 240Vac / 200Vdc (Float Swith) | Cooperate with PLC control system | Cooperate with PLC control system | Ø4 or Ø6 | 1 (10) | 250 (Standard), 400 (Option) | X | O | X (Option) | O | X |
| tank_capacity | weight_kg |
|---|---|
| 3L | 4.5 |
| 4L (Metal Tank) | 5.2 |
| 8L | 9.4 |
| Code | Model |
|---|---|
| on request | YAJ |
| on request | YAC |
Photographs captioned YAC-3L(Inside-Adjust Type), YAC-3L and YAC-8H. Dimension drawings shown for the 3L bodies ((230) / 200~210 / (145) / (78) / (262)) and for the 8H body ((357) / 339 / (215) / (245) / (290) / 95 / 4-ø7.5).
YAP YAH(90W) AUTOMATIC RESISTANCE LUBRICATOR
YAP/YAH · TAIWAN
- YAP: CE approval.
- YAP: Three operation modes as, (a) Lubrication: The lubricator runs via lubrication time after power-on. (b) Intermittence: The lubricator runs via intermittent time after power-on. (c) Memory: The lubricator runs via intermittent time after power-on.
- YAP: Lubrication time and intermittent time are adjustable.
- YAP: The float switch alarm and output signal when the oil level is low.
- YAP: The over tempature/load protector is attached to protect the motor.
- YAP: Fixed pressure of the pressure relief valve protects the pump and the pipe.
- YAP: Lubrication time (second/minute) and intermittent time (second/minute/hour/cycle) are adjustable
- YAP: The indicator on the panel can display the operation of the lubricator.
- YAP: The intermittent period can be adjusted via the machine's action cycles.
- YAP: "RES" key can force the lubricator to function.
- YAP: Cooperorate with disrtibutors of resistance lubricator and proportion devices.
- YAH: CE approval.
- YAH: The float switch output signal when the oil level is low.
- YAH: Fixed pressure of the pressure relief valve protects the pump and the pipe.
- YAH: The motor is of long-time operation.
| model_no | voltage_single_phase | power_w | capacity_of_output_a | lubrication_time_second_minute | intermittent_time_second_minute_hour_cycle | output_bore | max_output_pressure_mpa_kgf_cm2 | output_volume_cc_min | float_switch | oressure_release_devices | pressure_switch_kgf_cm2 | pressure_gauge | alarm_beeper | tank_capacity_l | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YAP | 110V or 220V | 90 | 3 | 1-999 | 1-999 | Ø4 or Ø6 | 3 (30) | 600 | O | X (Option) | X (Option) | O | O | 8 | 10 |
| YAH | 110V or 220V | 90 | 0.5 (Float switch) | Cooperate with PLC control system | Cooperate with PLC control system | Ø4 or Ø6 | 3 (30) | 600 | O | X (Option) | X (Option) | O | X | 8 | 9.5 |
| Code | Model |
|---|---|
| on request | YAP |
| on request | YAH |
Photographs captioned YAP-8L and YAH-8L. Both are given the same dimension drawing set: (357) / 329 / (235) / (185) / (350) / 95 / 4-ø7.5 for YAP and (357) / 339 / (235) / (185) / (350) / 95 / 4-ø7.0 for YAH.
