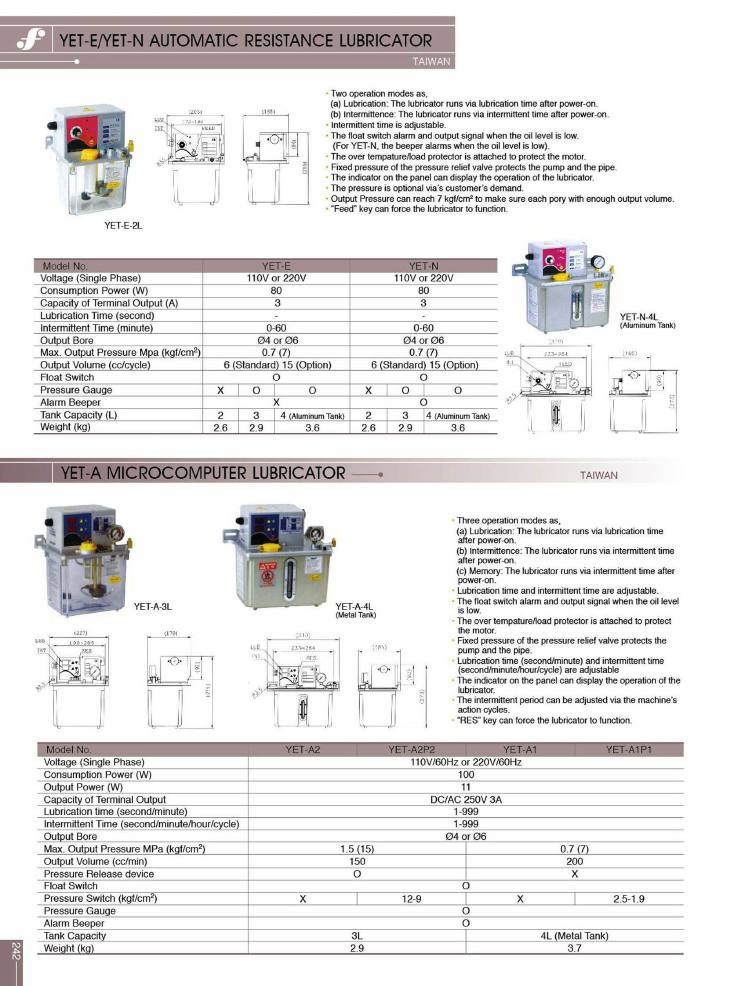

Frejoth accessory catalogue · Page 245
YET-E/YET-N AUTOMATIC RESISTANCE LUBRICATOR
Models on this page
YET-A1YET-A1P1YET-A2YET-A2P2YET-EYET-N
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
YET-E/YET-N AUTOMATIC RESISTANCE LUBRICATOR
YET-E/YET-N · TAIWAN
- Two operation modes as, (a) Lubrication: The lubricator runs via lubrication time after power-on. (b) Intermittence: The lubricator runs via intermittent time after power-on.
- Intermittent time is adjustable.
- The float switch alarm and output signal when the oil level is low. (For YET-N, the beeper alarms when the oil level is low).
- The over tempature/load protector is attached to protect the motor.
- Fixed pressure of the pressure relief valve protects the pump and the pipe.
- The indicator on the panel can display the operation of the lubricator.
- The pressure is optional via's customer's demand.
- Output Pressure can reach 7 kgf/cm² to make sure each pory with enough output volume.
- "Feed" key can force the lubricator to function.
| model_no | voltage_single_phase | consumption_power_w | capacity_of_terminal_output_a | lubrication_time_second | intermittent_time_minute | output_bore | max_output_pressure_mpa_kgf_cm2 | output_volume_cc_cycle | float_switch | alarm_beeper |
|---|---|---|---|---|---|---|---|---|---|---|
| YET-E | 110V or 220V | 80 | 3 | - | 0-60 | Ø4 or Ø6 | 0.7 (7) | 6 (Standard) 15 (Option) | O | X |
| YET-N | 110V or 220V | 80 | 3 | - | 0-60 | Ø4 or Ø6 | 0.7 (7) | 6 (Standard) 15 (Option) | O | O |
| model_no | tank_capacity_l | tank_material_note | pressure_gauge | weight_kg |
|---|---|---|---|---|
| YET-E | 2 | — | X | 2.6 |
| YET-E | 3 | — | O | 2.9 |
| YET-E | 4 | Aluminum Tank | O | 3.6 |
| YET-N | 2 | — | X | 2.6 |
| YET-N | 3 | — | O | 2.9 |
| YET-N | 4 | Aluminum Tank | O | 3.6 |
| Code | Model |
|---|---|
| on request | YET-E |
| on request | YET-N |
Photographs captioned YET-E-2L and YET-N-4L (Aluminum Tank). Dimension drawings shown for both bodies: (205) / 172~180 / (194) / (255) for the 2L body and (510) / 233~284 / (185) / (90) / (275) for the 4L body.
YET-A MICROCOMPUTER LUBRICATOR
YET-A · TAIWAN
- Three operation modes as, (a) Lubrication: The lubricator runs via lubrication time after power-on. (b) Intermittence: The lubricator runs via intermittent time after power-on. (c) Memory: The lubricator runs via intermittent time after power-on.
- Lubrication time and intermittent time are adjustable.
- The float switch alarm and output signal when the oil level is low.
- The over tempature/load protector is attached to protect the motor.
- Fixed pressure of the pressure relief valve protects the pump and the pipe.
- Lubrication time (second/minute) and intermittent time (second/minute/hour/cycle) are adjustable
- The indicator on the panel can display the operation of the lubricator.
- The intermittent period can be adjusted via the machine's action cycles.
- "RES" key can force the lubricator to function.
| model_no | voltage_single_phase | consumption_power_w | output_power_w | capacity_of_terminal_output | lubrication_time_second_minute | intermittent_time_second_minute_hour_cycle | output_bore | max_output_pressure_mpa_kgf_cm2 | output_volume_cc_min | pressure_release_device | float_switch | pressure_switch_kgf_cm2 | pressure_gauge | alarm_beeper | tank_capacity | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YET-A2 | 110V/60Hz or 220V/60Hz | 100 | 11 | DC/AC 250V 3A | 1-999 | 1-999 | Ø4 or Ø6 | 1.5 (15) | 150 | O | O | X | O | O | 3L | 2.9 |
| YET-A2P2 | 110V/60Hz or 220V/60Hz | 100 | 11 | DC/AC 250V 3A | 1-999 | 1-999 | Ø4 or Ø6 | 1.5 (15) | 150 | O | O | 12-9 | O | O | 3L | 2.9 |
| YET-A1 | 110V/60Hz or 220V/60Hz | 100 | 11 | DC/AC 250V 3A | 1-999 | 1-999 | Ø4 or Ø6 | 0.7 (7) | 200 | X | O | X | O | O | 4L (Metal Tank) | 3.7 |
| YET-A1P1 | 110V/60Hz or 220V/60Hz | 100 | 11 | DC/AC 250V 3A | 1-999 | 1-999 | Ø4 or Ø6 | 0.7 (7) | 200 | X | O | 2.5-1.9 | O | O | 4L (Metal Tank) | 3.7 |
| Code | Model |
|---|---|
| on request | YET-A2 |
| on request | YET-A2P2 |
| on request | YET-A1 |
| on request | YET-A1P1 |
Photographs captioned YET-A-3L and YET-A-4L (Metal Tank). Dimension drawings shown for both bodies: (227) / 190~205 / (170) / (90) / (275) for the 3L body and (510) / 233~284 / (185) / (90) / (273) for the 4L body.
