Product Details...
FMax 1500

FMax 1500


Working Ranges - FMax 1500 from 400mm to 1500mm diameter

  • MILLING
  • CONTOURING
  • CALIBRATED DRILLING WORKS
  • CREATION OF CIRCULAR POCKETS
  • CIRCULAR MIG WELDING
  • CIRCULAR OXYGEN CUTTING
  • TURNING OPERATIONS
  • TAPPING

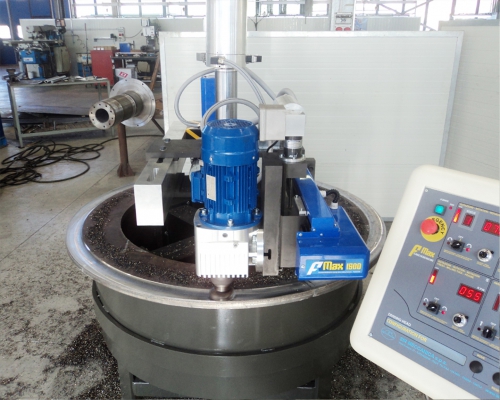

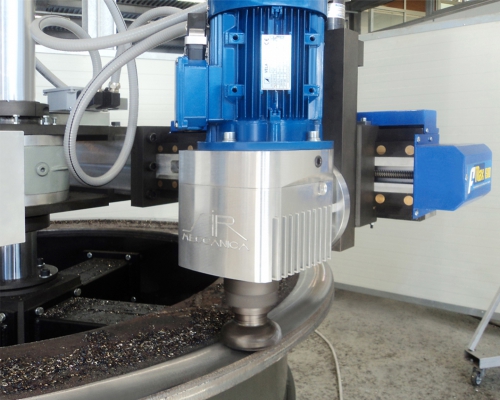

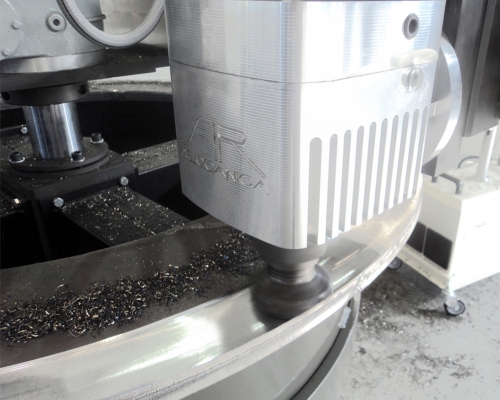

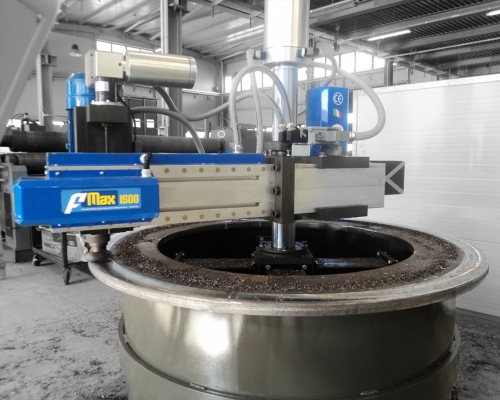

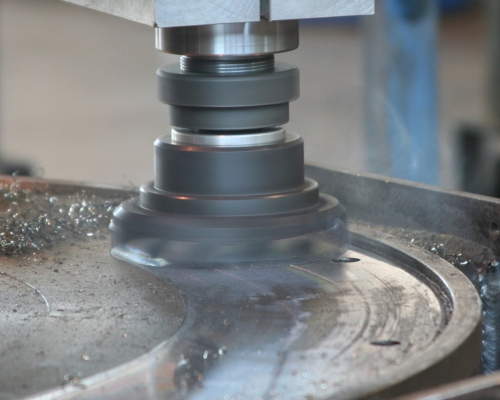

The FMax, has been created to carry out operations such as facing, internal and external beveling, the creation of concentric and/or spiral cylindrical shape grooves, as well as the preparation of edges and chamfers for welding.

Operation is possible in any position: horizontal, vertical or inclined. Its innovative construction compensates for radial and axial stress and tilting moment, minimising harmful vibration. FMax may also be used as a precision drilling/tapping machine.

SINGLE PHASE POWER
220 V – 50 Hz
DIAMETER OF FACING mm 400 - 1500
CENTRING AND SUPPORTING AXIS DIAMETER mm 100
TOOL HOLDER ARM mm 800
RADIAL STROKE mm 400
AXIAL STROKE mm 150
ROTATION MOTOR OF THE ARM
DC CONFORM TO EC NORMS
ROTATION MOTOR OF THE MILLING TOOL
AC CONFORM TO EC NORMS
AXIAL MOVEMENT SYSTEM
DC CONFORM TO EC NORMS
RADIAL MOVEMENT SYSTEM
DC CONFORM TO EC NORMS
MAX. ROTATION TORQUE OF THE TOOL HOLDER ARM
14000 Nm (0.87 rpm)
MAX. ROTATION TORQUE ON AXIS OF MILLING TOOL
30 Nm (700 rpm)
MAX. ROTATION SPEED Rpm 0.87
ROUGHNESS um 1,6
HEAD ROLL
360°
DIGITAL POSITIONER AND VISUALIZATION OF RADIAL AND AXIAL STROKES
