Working ranges - FMax 4000 from 1500mm to 4700mm diameter.
- MILLING
- TURNING OPERATIONS
- CONTOURING
- CALIBRATED DRILLING ON CIRCULAR SERIES
- TAPPING ON CIRCULAR SERIES
- CREATION OF CIRCULAR POCKETS
- CIRCULAR MIG WELDING
- CIRCULAR OXYGEN CUTTING

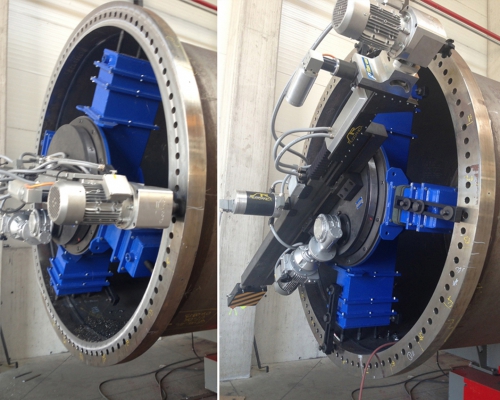

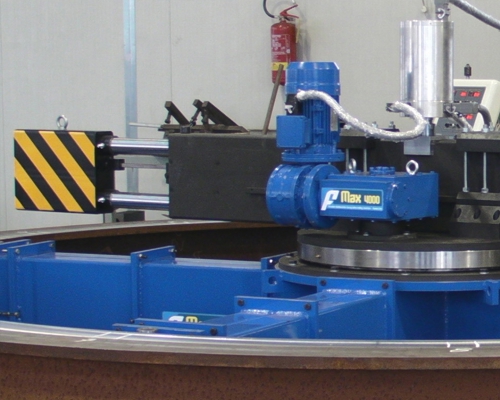

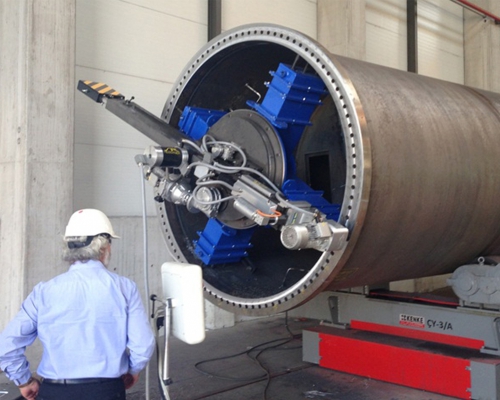

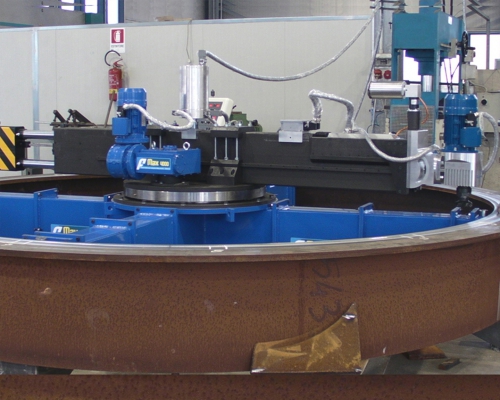

The FMax, has been created to carry out operations such as facing, internal and external beveling, the creation of concentric and/or spiral cylindrical shape grooves, as well as the preparation of edges and chamfers for welding. Operation is possible in any position: horizontal, vertical or inclined. Its innovative construction compensates for radial and axial stress and tilting moment, minimising harmful vibration. FMax may also be used as a precision drilling/tapping machine. Once the diameter and number of holes to be drilled has been set, the electronic controller automatically determines all drilling positions like an electronic indexing head.
| SINGLE PHASE POWER |
|
220 V - 50 Hz |
| MODULAR CENTRING FOR FASTENING AND SUPPORT |
mm |
1400-4500 |
| TOOL HOLDER ARM |
mm |
MAX 2000 |
| DIAMETER OF FACING |
mm |
1500 - 4700 |
| RADIAL STROKE |
mm |
250 |
| AXIAL STROKE |
mm |
200 |
| ROTATION MOTOR OF THE ARM |
|
AC/THREE-PHASE CONFORM TO EC NORMS |
| ROTATION MOTOR OF THE MILLING TOOL |
|
AC/THREE-PHASE CONFORM TO EC NORMS |
| AXIAL MOVEMENT SYSTEM |
|
DC CONFORM TO EC NORMS |
| RADIAL MOVEMENT SYSTEM |
|
DC CONFORM TO EC NORMS |
| MAX. ROTATION TORQUE OF THE TOOL HOLDER ARM |
|
20000 Nm (0.9 rpm) |
| MAX. ROTATION TORQUE ON AXIS OF MILLING TOOL |
|
30 Nm (700 rpm) |
| MAX ROTATION SPEED |
rpm |
0.9 |
| HEAD PITCH |
|
-45° - +20° |
| HEAD ROLL |
|
360° |

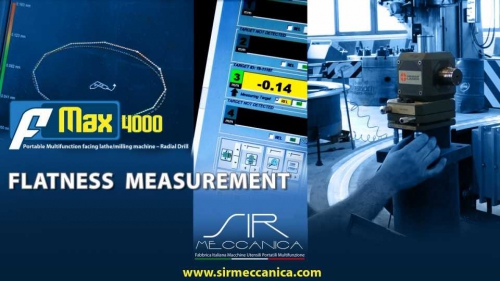

| FLATNESS TOLERANCES |
mm |
0,3 |
| RADIAL OSCILLATION TOLERANCES |
mm |
0,05 |
| ROUGHNESS |
um |
1,6 |
| DIGITAL POSITIONER AND VISUALIZATION OF RADIAL AND AXIAL STROKES |
|
|
