Image 1 of 61150mm KINWA

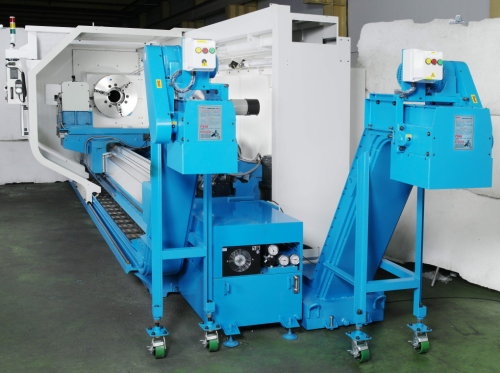

This heavy-duty CNC turning centre offers an 1150mm swing and turning lengths from 2000mm to 7000mm for large work pieces.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

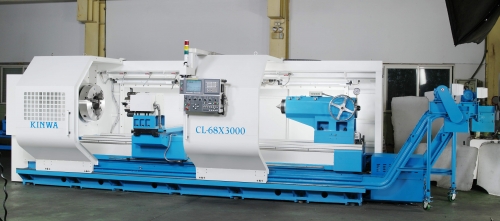

Kinwa CL68 Series 1150mm Swing with lengths from 2000mm up to 7000mm
The Chin Hung Machinery Company of Taiwan was established in 1968 and has manufactured the Kinwa range of metal working lathes since 1973. These high quality lathes are manufactured in Taiwan in line with ISO9001 and CE Standards, providing a very high level of accuracy, performance, finish, and longevity at a realistic price.

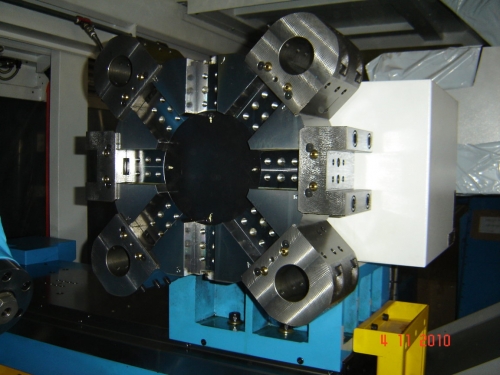

The Kinwa CL68 range of CNC Lathes are powerful, heavy-duty CNC turning centres with flat bed construction for general turning applications of large work pieces. With spindle bores from 181mm up to 530mm and a choice of V8, H4, H6, and Live Tool turrets (or front and rear combinations of these), the Kinwa CL68 is a highly versatile workhorse.
Available in 1150mm swing x 2000mm up to 7000mm turning length, all CL68 series machines come standard with high torque 60hp / 50hp spindle motors which run through a 2-speed range gear box. This power combined with the machine's impressive rigidity and build quality makes the CL68 suitable for the most demanding of applications.
