Image 1 of 61500mm KINWA
CNC lathe for heavy-duty turning of large workpieces, manufactured in Taiwan to ISO9001 and CE standards.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
The Chin Hung Machinery Company of Taiwan was established in 1968 and has manufactured the Kinwa range of metal working lathes since 1973. These high quality lathes are manufactured in Taiwan in line with ISO9001 and CE Standards, providing a very high level of accuracy, performance, finish, and longevity at a realistic price.

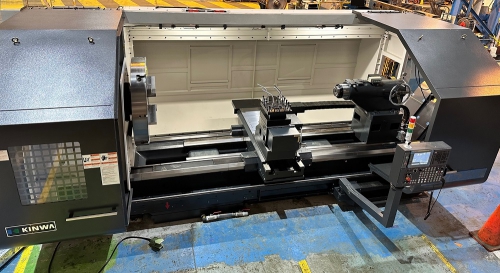

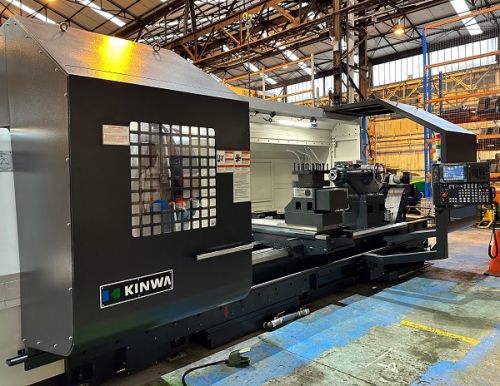

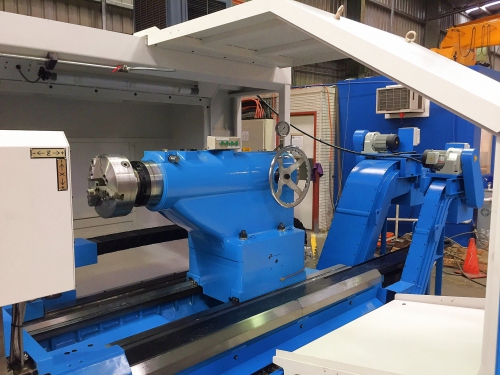

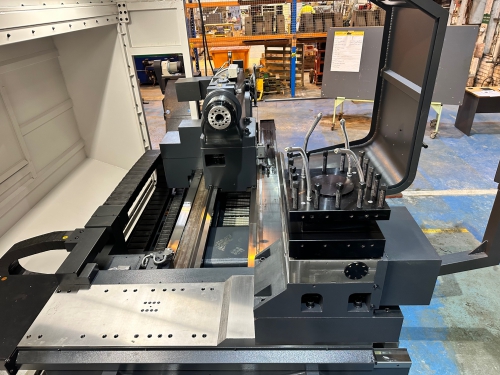

The Kinwa CL78 range of CNC Lathes are powerful, heavy-duty CNC turning centers with flat bed construction for general turning applications of large work pieces.
With spindle bores up to 530mm and a choice of H4 and V8 tool turrets, the Kinwa CL78 is a highly versatile workhorse.
Available with 1500mm swing x 2000mm up to 6000mm turning length, all CL78 series machines come standard with high torque 60hp / 50hp spindle motors which run through a 2-speed range gear box. This power combined with the machine's impressive rigidity and build quality makes the CL78 suitable for the most demanding of applications.
