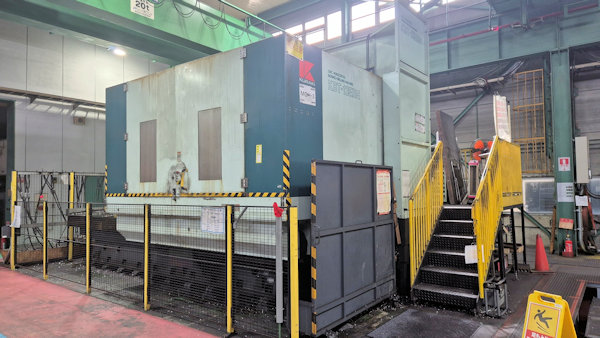

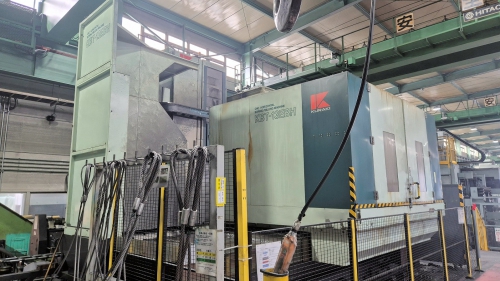

Image 1 of 52006 Kuraki KBT 13EBH
CNC horizontal borer with 3000mm X-axis travel, 20-ton capacity table, and 130mm spindle diameter for heavy-duty machining.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
Kuraki KBT 13EBH CNC Horizontal Borer
| Model | KBT 13EBH |
|---|---|
| Date of manufacture | December 2006 |
| Travels X/Y/Z/W | 3000mm x 2300mm x 1600mm x 650mm |

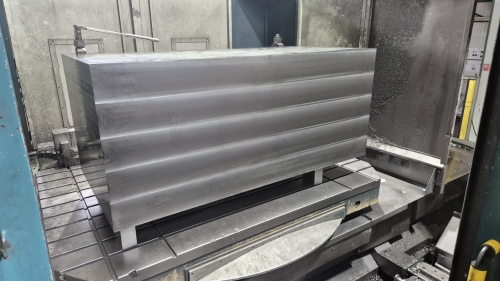

| Table | 2000mm x 2500mm / 20 ton load / 0.001 degree indexing |

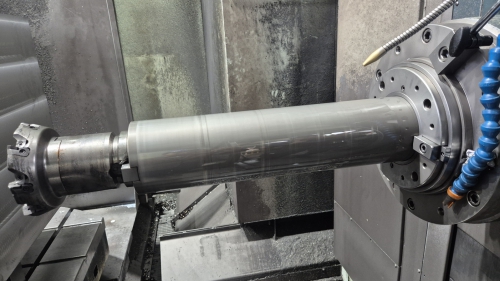

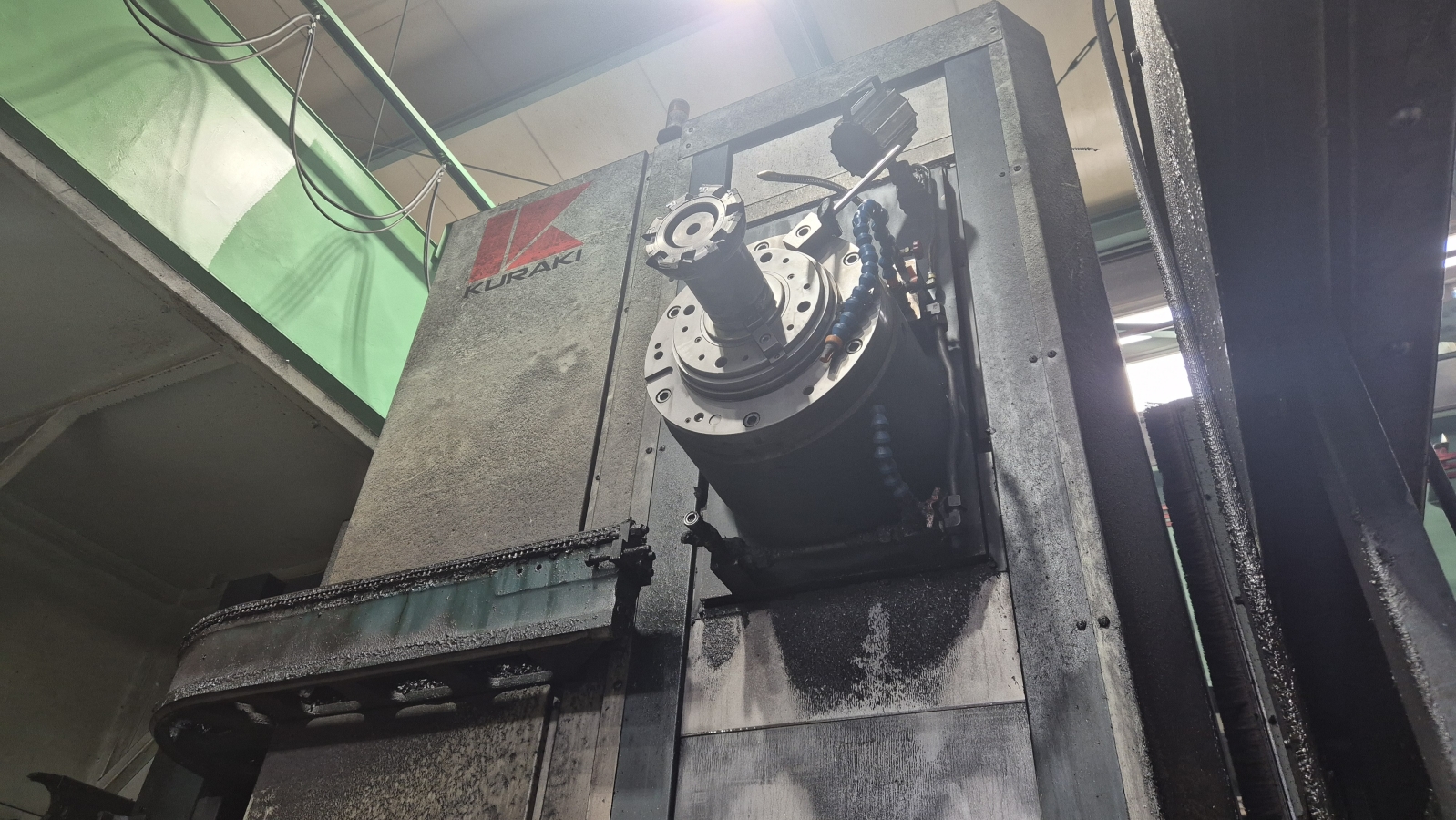

| Spindle diameter | 130mm |
| Spindle taper | BT50 |
| Spindle speed | 5-4000rpm (4 steps) |
| Motor | 37/45kw |

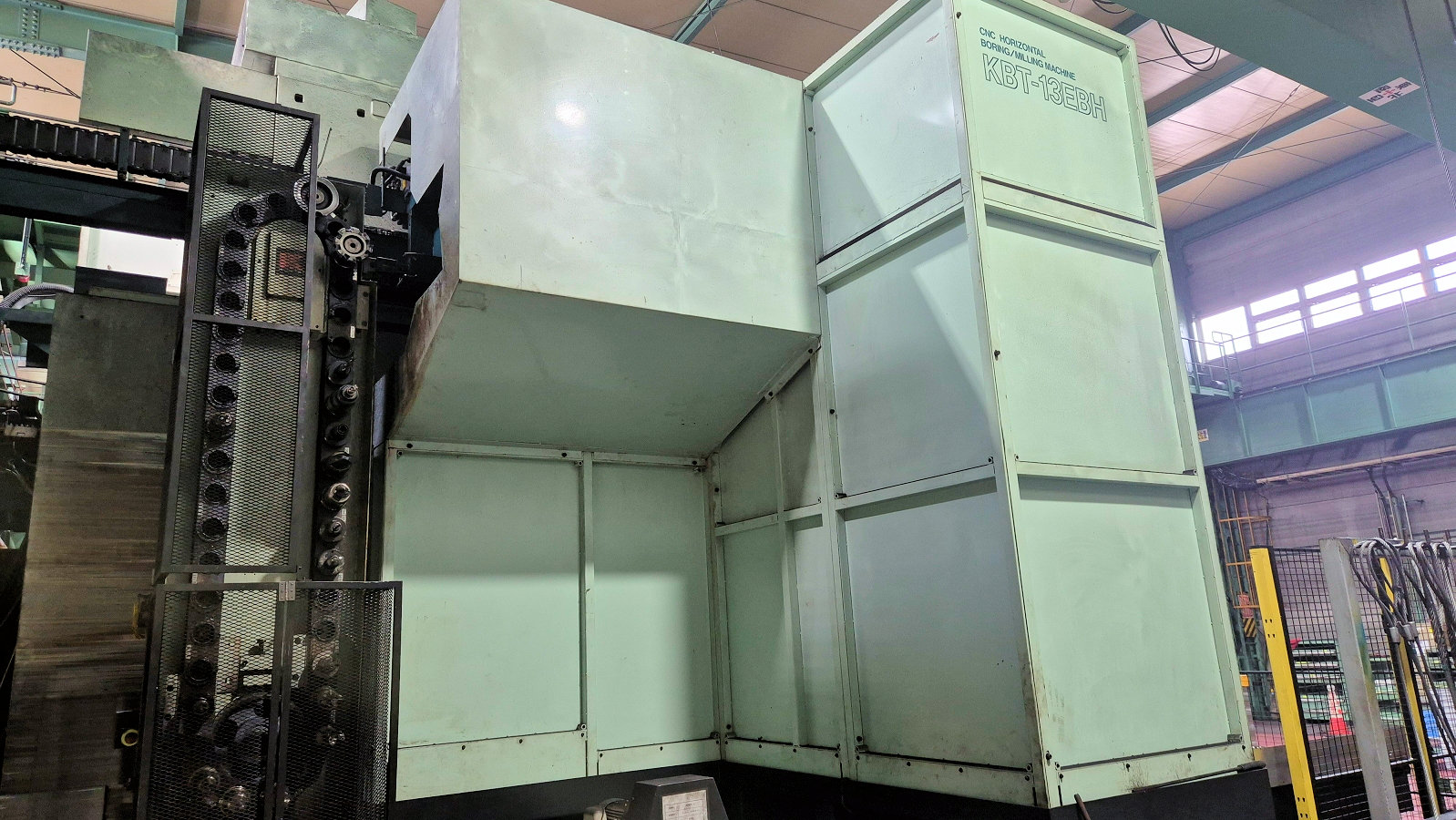

| ATC | 40 tool |

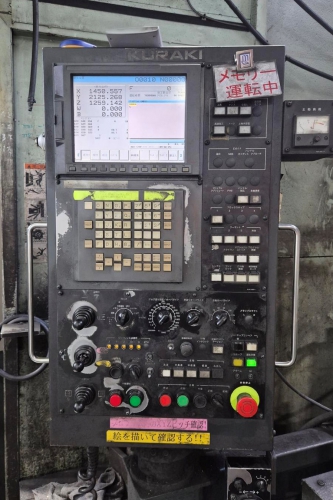

| Control | Fanuc 16iMB |

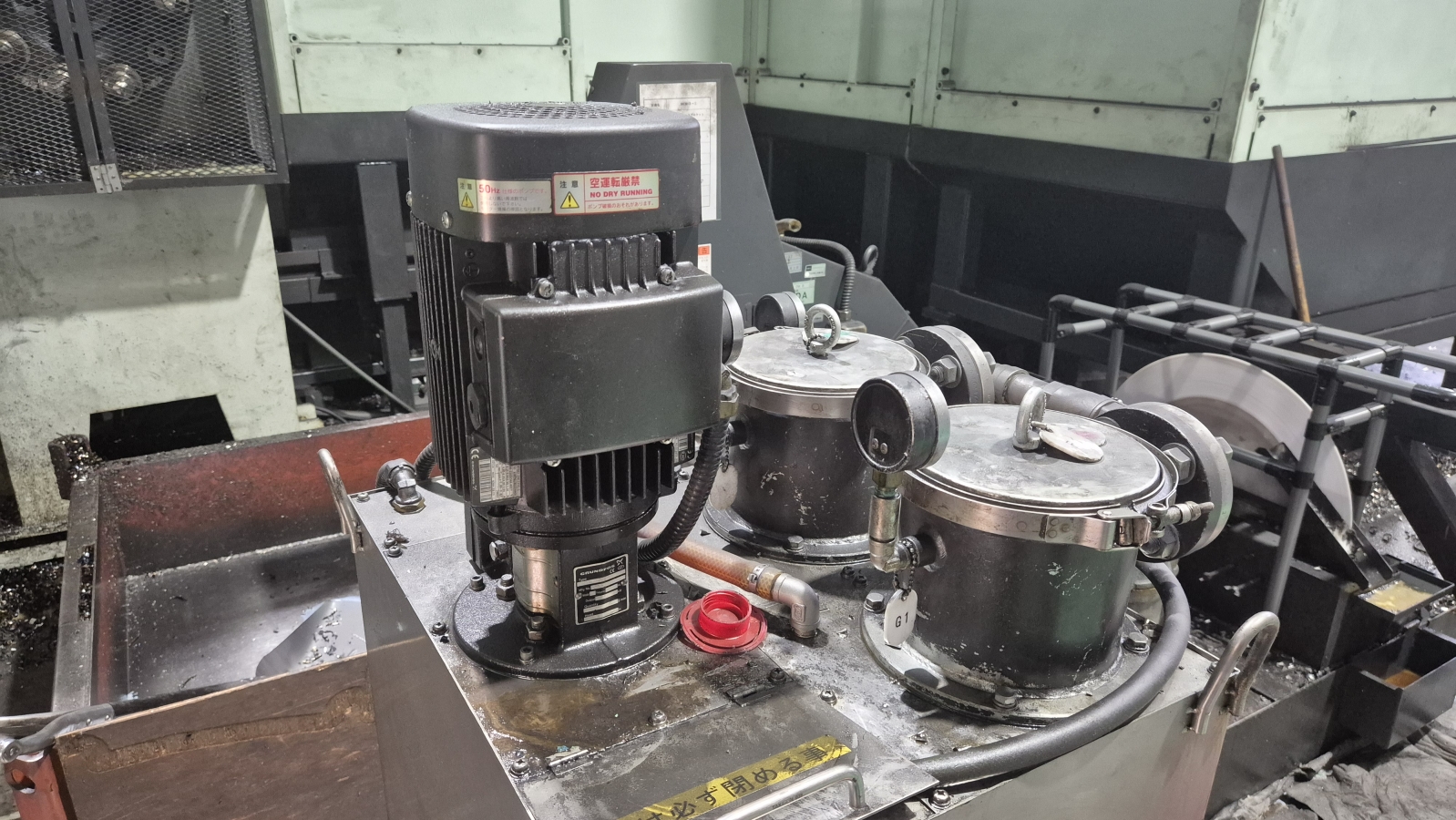

- Through spindle coolant
- Chip conveyor
A new spindle was fitted in 2020 by Kuraki. The machine is currently dismantled and stored.
