Image 1 of 62011 Kiheung Kombi U11
Universal Bed Mill XYZ : 3200x1400x1200mm
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
More detailed specifications for this product are being added — please contact us for full information.
Overview

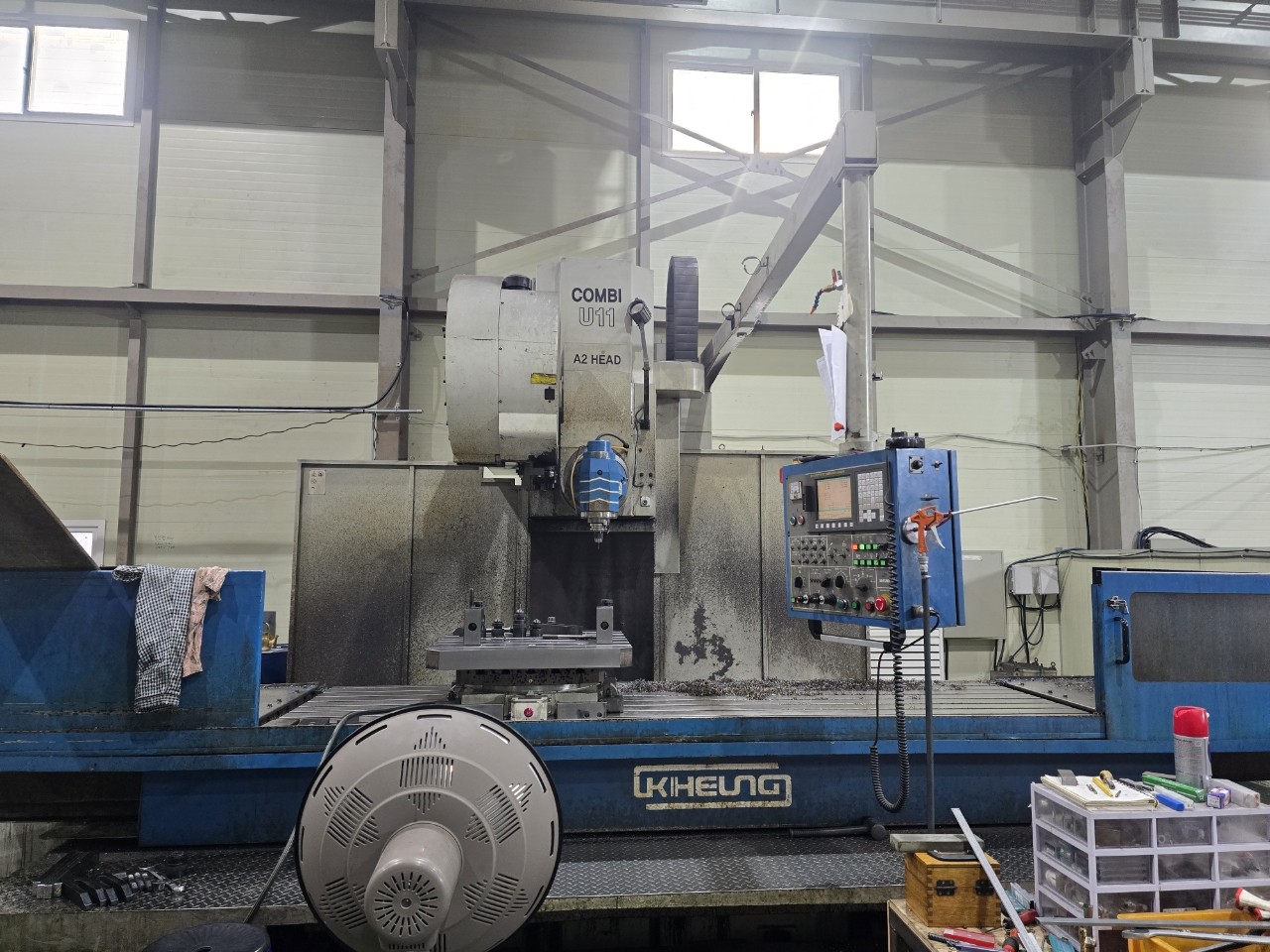

Kiheung Model : Combi U11 CNC Bed Mill
Year of manufacture : 2011
Table size : 3140mm x 1100mm / 4000kg load
Travels X/Y/Z : 3200mm x 1400mm x 1200mm
Spindle speed : 2000rpm
18.5/22kw motor
BT50 spindle taper

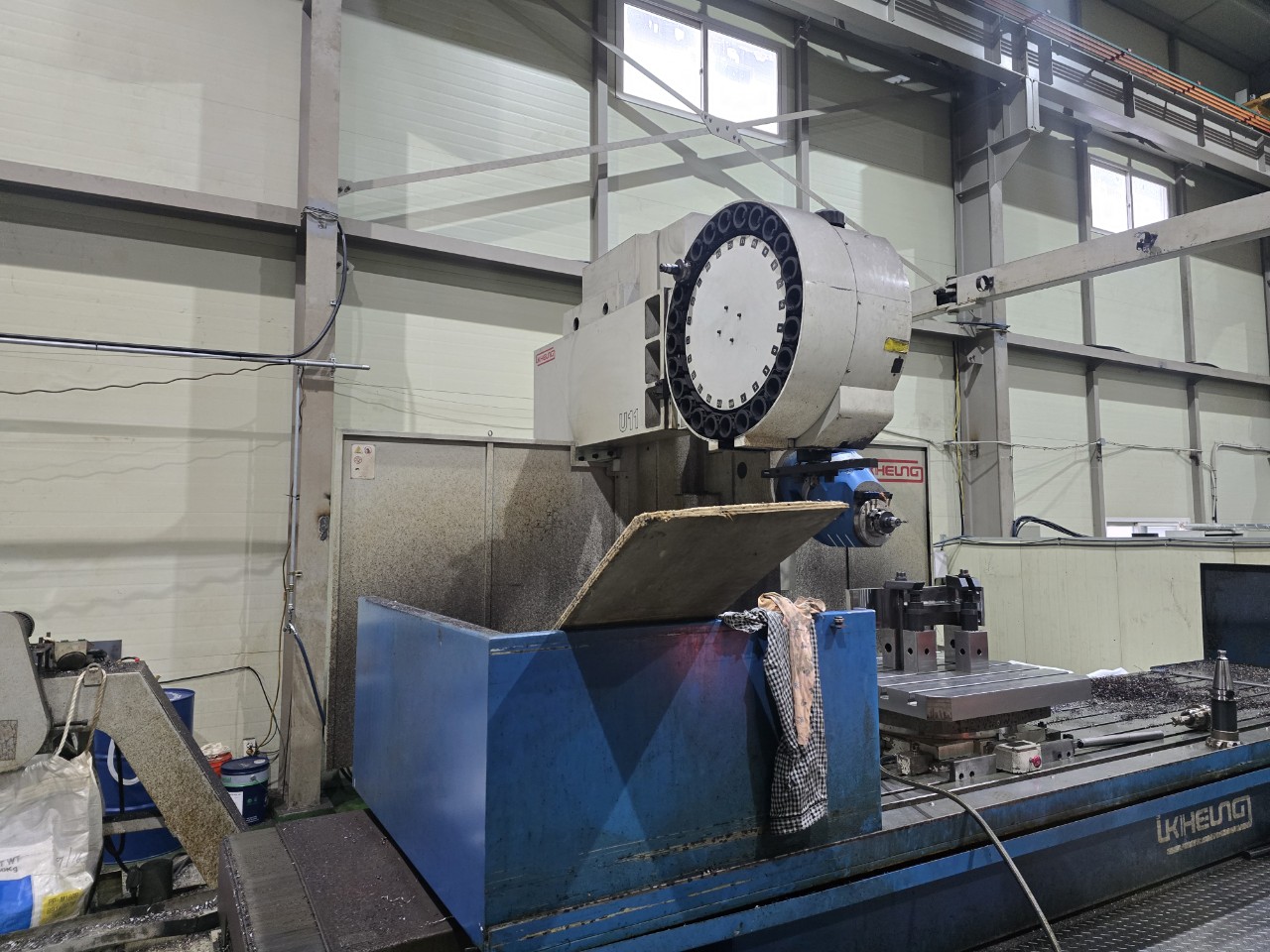

A2 Horizontal/Vertical head auto rotating
Scale Y/Z axis
24 tool ATC
Chip conveyor

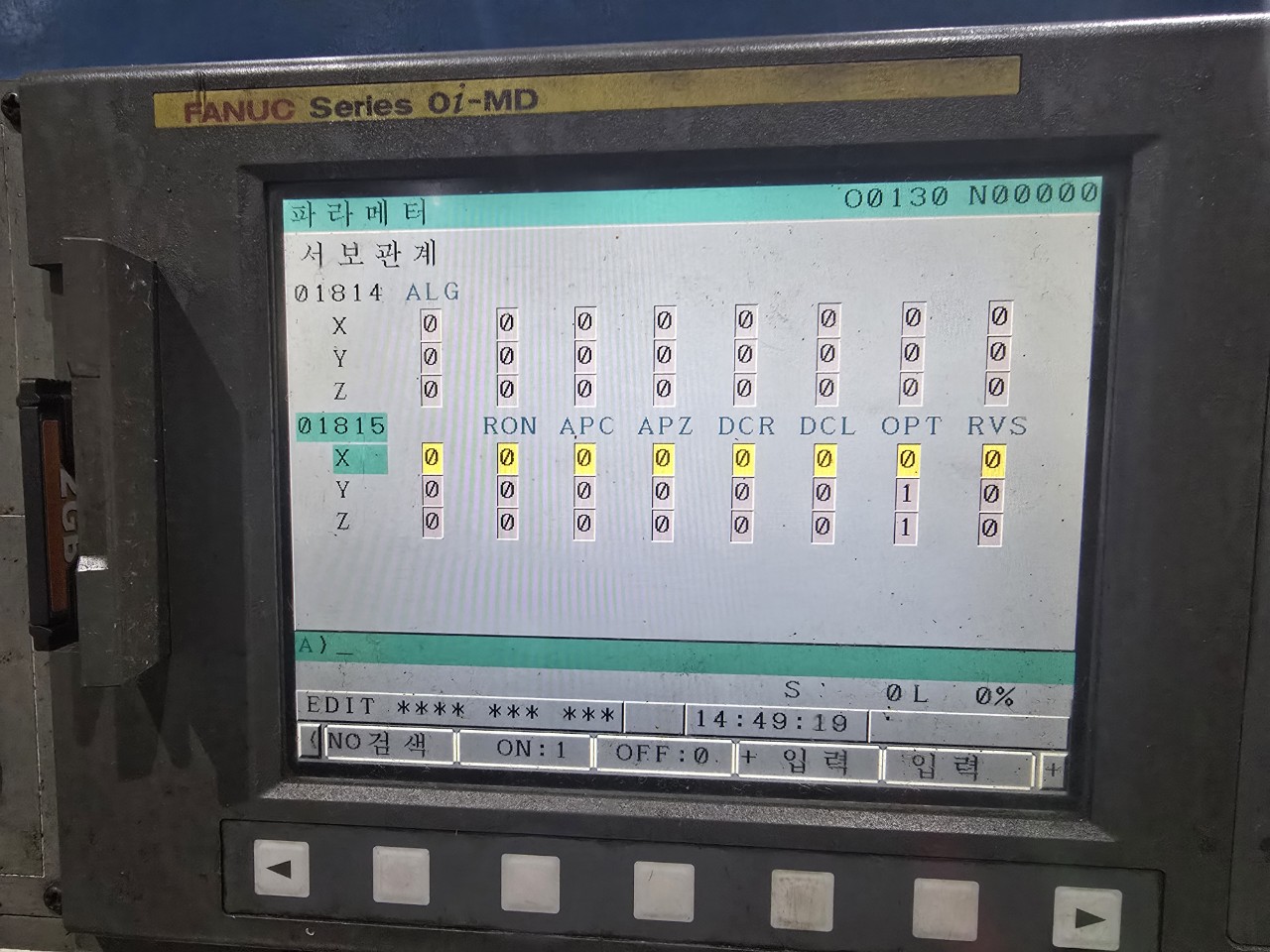

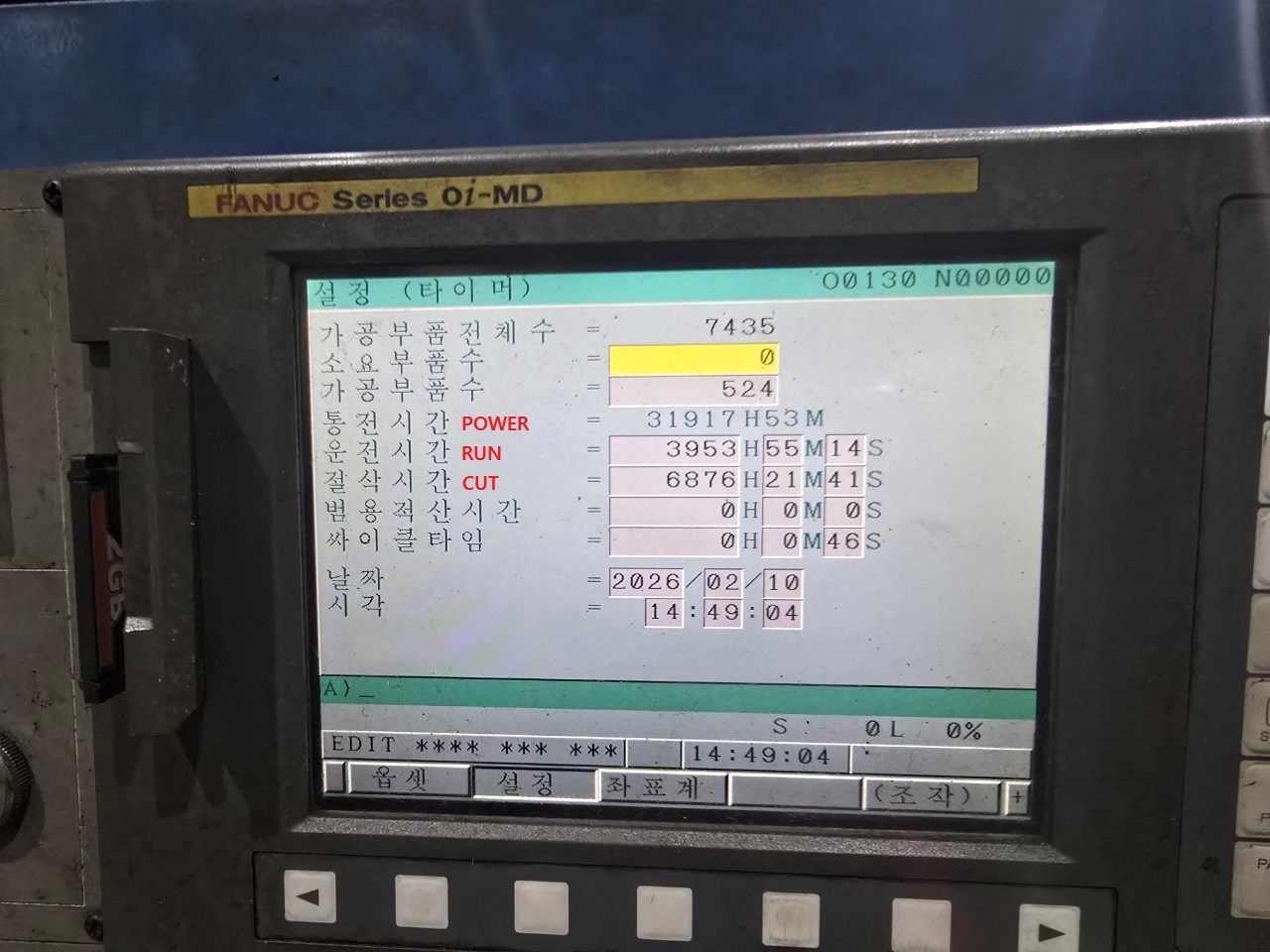

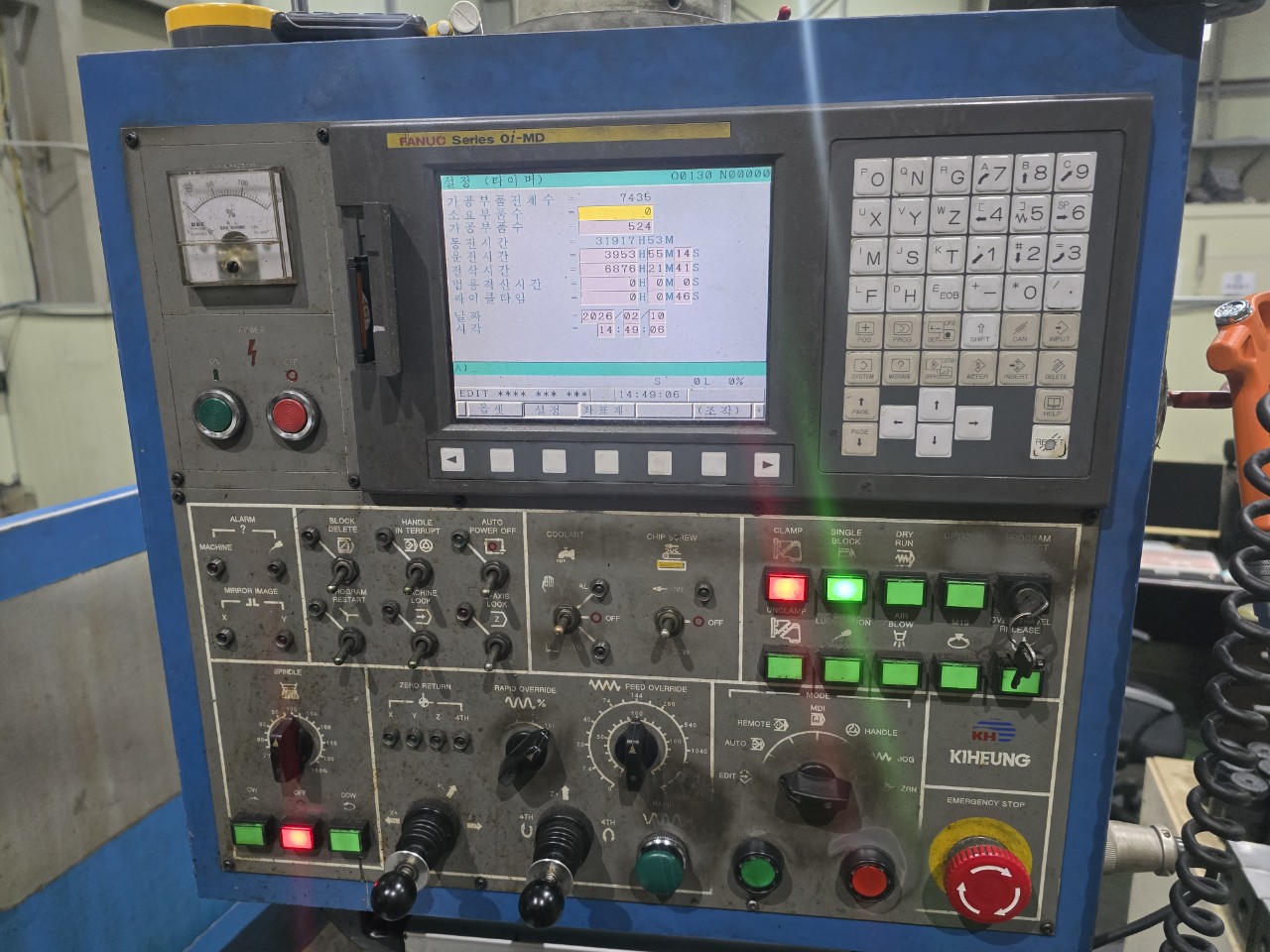

Fanuc 0iM control
