Image 1 of 52014 SNK BFR3500

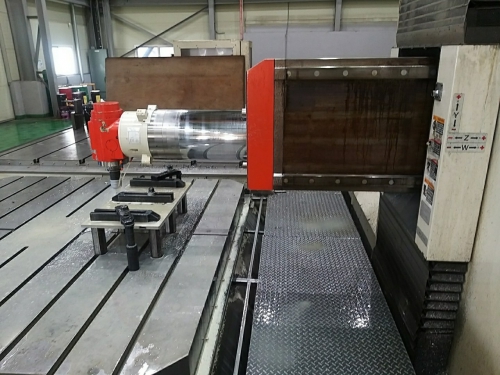

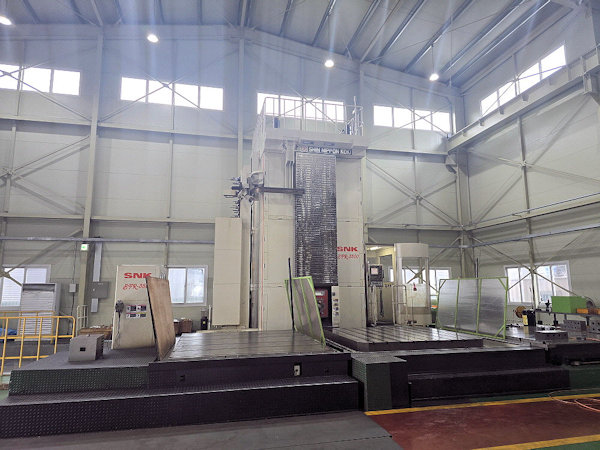

This 2014 SNK BFR3500 CNC ram type floor borer offers extensive X, Y, Z, and W travels, a 90mm spindle, and a 60-tool ATC.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
SNK BFR3500 CNC Ram Type Floor Borer
| Year of manufacture | 2014 |
|---|---|
| Travels X/Y/Z/W | 8000mm x 3500mm x 1100mm x 600mm |
| Spindle inner diameter | 90mm |
| Taper | ISO 50 |
| Spindle speed | 60-6000rpm |
| Quill diameter | 330mm |
| Ram size | 550x750mm |
| Motor | 60/75kw |
| ATC | 60 tool |
| CNC rotary table | 2500mm x 2500mm / 30 ton |
| Floor plate | 2398mm x 3196 (2 set) |

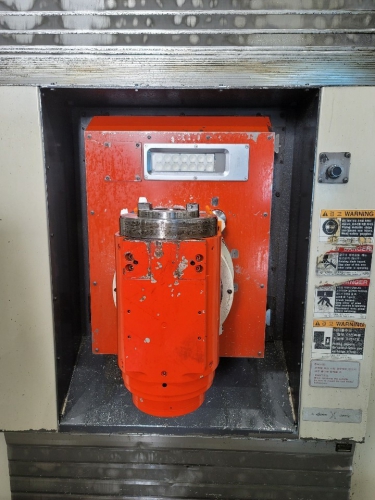

| Angle head | 90 degree |

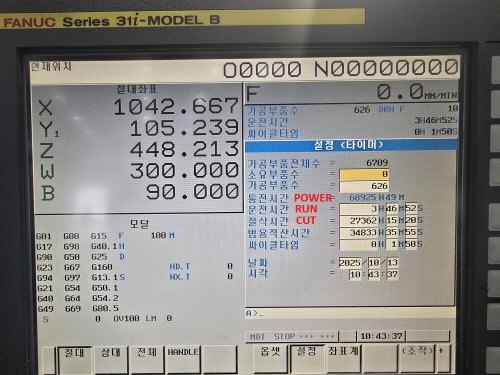

| Control | Fanuc 31iMB |
AAC
Chip conveyor
