Image 1 of 62015 DMG Mori DMU 210P
This 2015 5-axis machining centre offers precision milling with a 24,000rpm spindle and substantial workpiece capacity.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

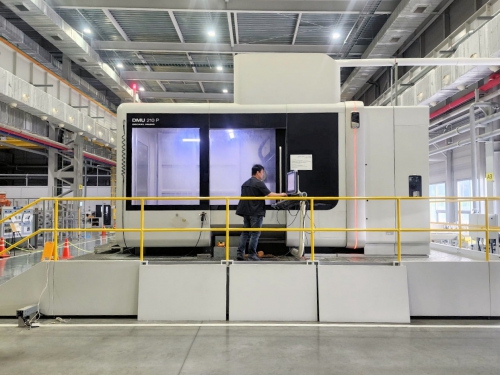

DMG Mori DMU 210P
- DMG Mori Model: DMU 210P 5 Axis Machining Centre
- Year of manufacture: 2015
- Spindle speed: 24,000rpm
- X axis travel: 1,800mm
- Y axis travel: 2,100mm
- Z axis travel: 1,250mm
- Max workpiece diameter: 2,500mm
- Max workpiece height: 1,460mm
- Max workpiece weight: 8 Ton
- Tool taper: HSK A63
- B axis: +30 degree / -210 degree
- C axis: 360,000 Positions
- Machine dimensions: 5,510 x 5,850 x 4,920mm
The machine is currently decommissioned and stored.
