Image 1 of 52015 Hwacheon VT-1150MC
This Hwacheon vertical lathe is designed for turn-mill operations, featuring a 1320mm maximum cutting diameter and Fanuc control.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

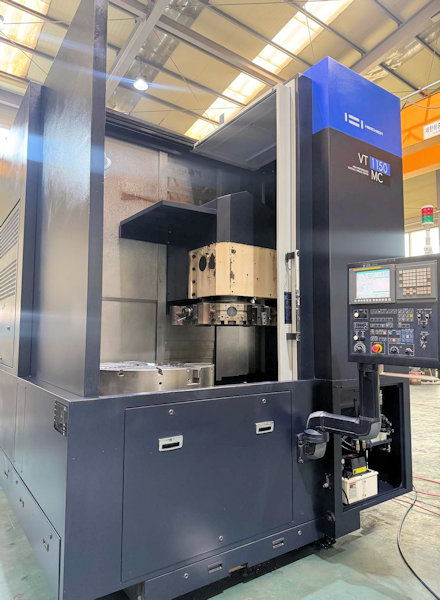

Hwacheon VT-1150MC Turn Mill CNC Vertical Lathe
- Year of manufacture: 2015
- Maximum cutting diameter: 1320mm
- Maximum cutting height: 950mm
- Table speed: 630rpm
- Table motor: 45/55kw
- Milling spindle speed: 3000rpm
- Milling motor: 5.5/7.5kw

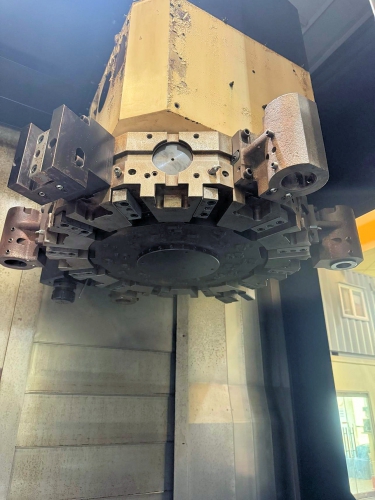

- 12 tool turret
- 40" hydraulic chuck
- Tool setter
- Scales: X/Z axis
- One angular and one straight milling holder
- Chip conveyor

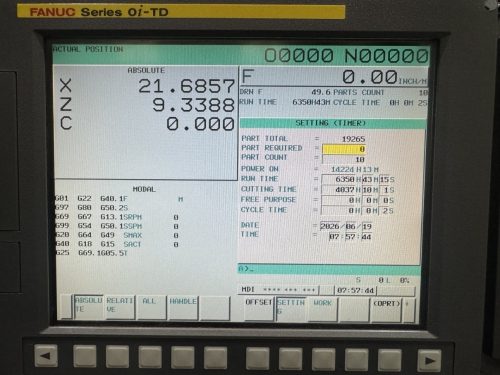

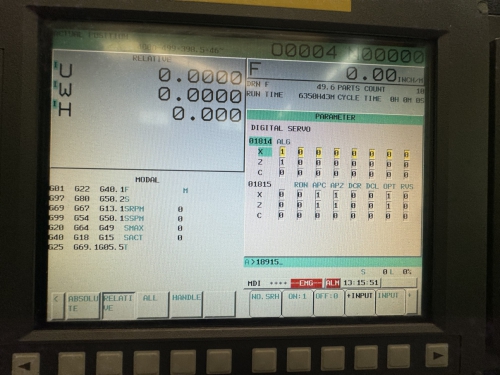

- Fanuc control
