Image 1 of 52016 Doosan DCM-3280
This large capacity CNC double column machining centre offers precision milling for heavy-duty applications with a Fanuc 31iB control.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

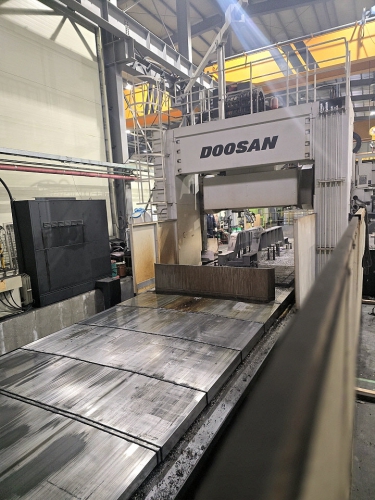

Doosan DCM-3280
- Year of manufacture: 2016
- Table size: 2700mm x 8000mm / 40,000kg load
- Travels X/Y/Z: 8250mm x 3700mm x 1000mm
- Raised column: 350mm
- Distance between columns: 3200mm
- Spindle to table: 2000mm
- Spindle speed: 4000rpm (gearbox)
- Spindle motor: 30/37kw
- BT50 taper
- Ram size: 380mm x 380mm

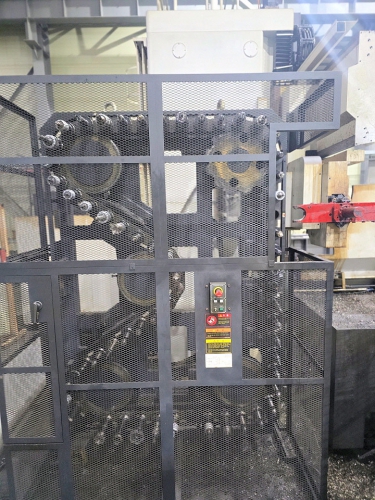

- 60 tool ATC
- Scales X/Y/Z/W axis
- Chip conveyor

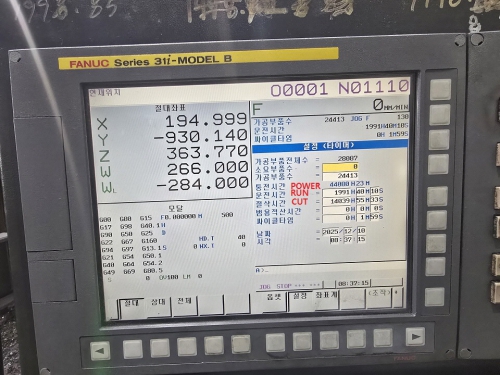

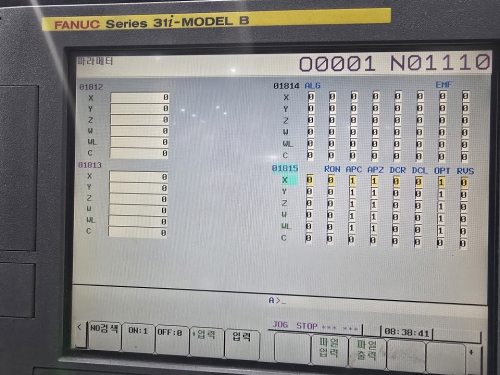

- Fanuc 31iB control
