Image 1 of 52016 HNK NT-10/12F
This HNK vertical lathe, manufactured in 2016, features a 1000mm hydraulic chuck with a 4500kg load capacity and Fanuc 31i-B control.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

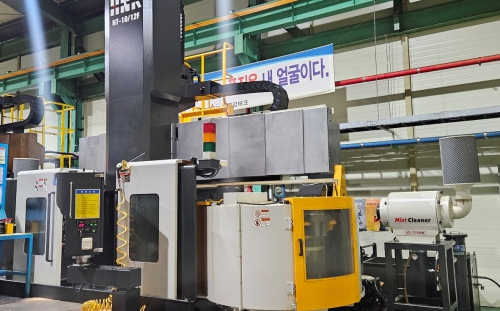

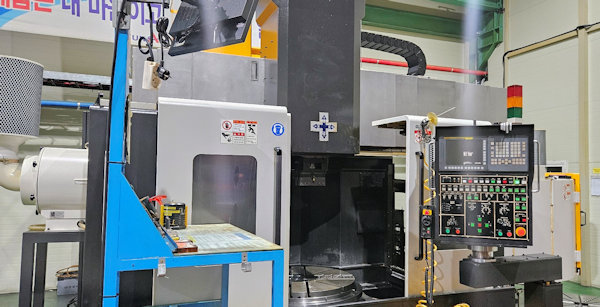

HNK NT-10/12F CNC Vertical Lathe
| Date of manufacture | October 2016 |
|---|---|

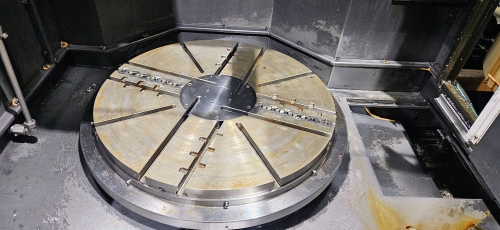

| Table diameter | 1000mm, hydraulic chuck / 4,500kg load |
| Max swing | 1250mm |
| Max cutting height | 800mm |
| X/Z travel | -200~795/750mm |
| Table speed | 1-450rpm |
| Ram size | 240mm x 240mm |
| Table motor | 30/37kw |

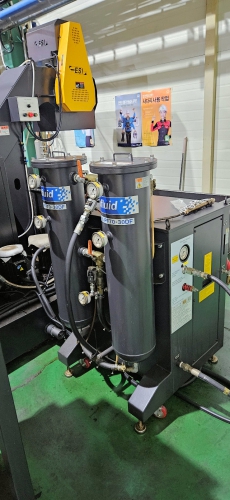

- High pressure coolant
- Scales
- 12 tool ATC
- Chip conveyor

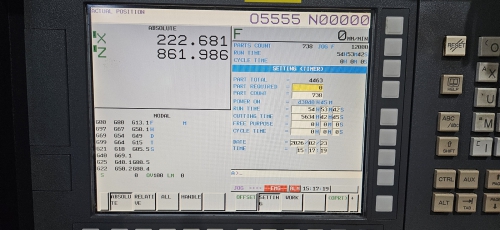

- Fanuc 31i-B control
