Image 1 of 52017 Doosan BM1530
XYZ : 3000x1550x800mm
Get in touch
Send us your details and we'll get back to you shortly.
More detailed specifications for this product are being added — please contact us for full information.
Product Details

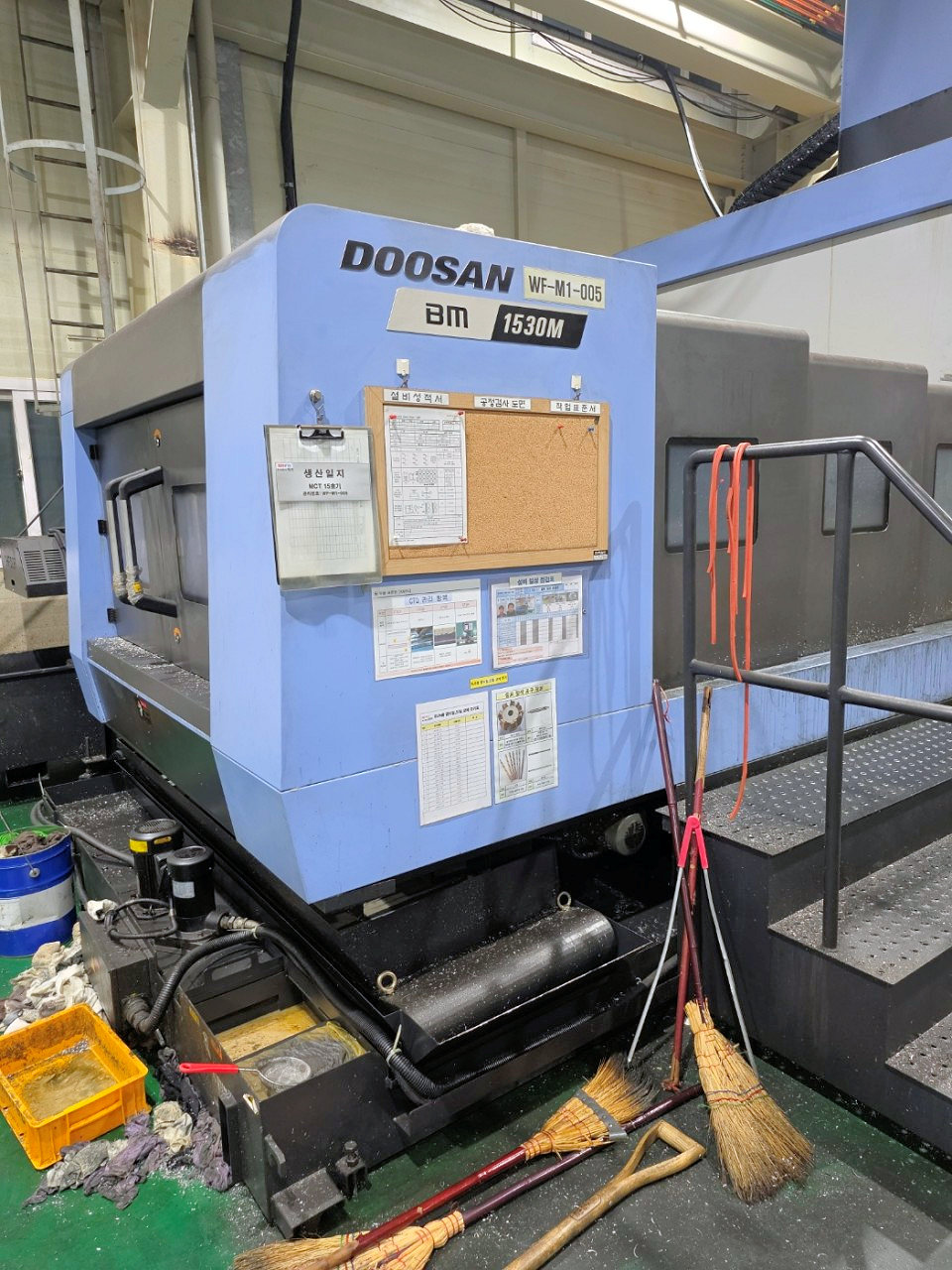

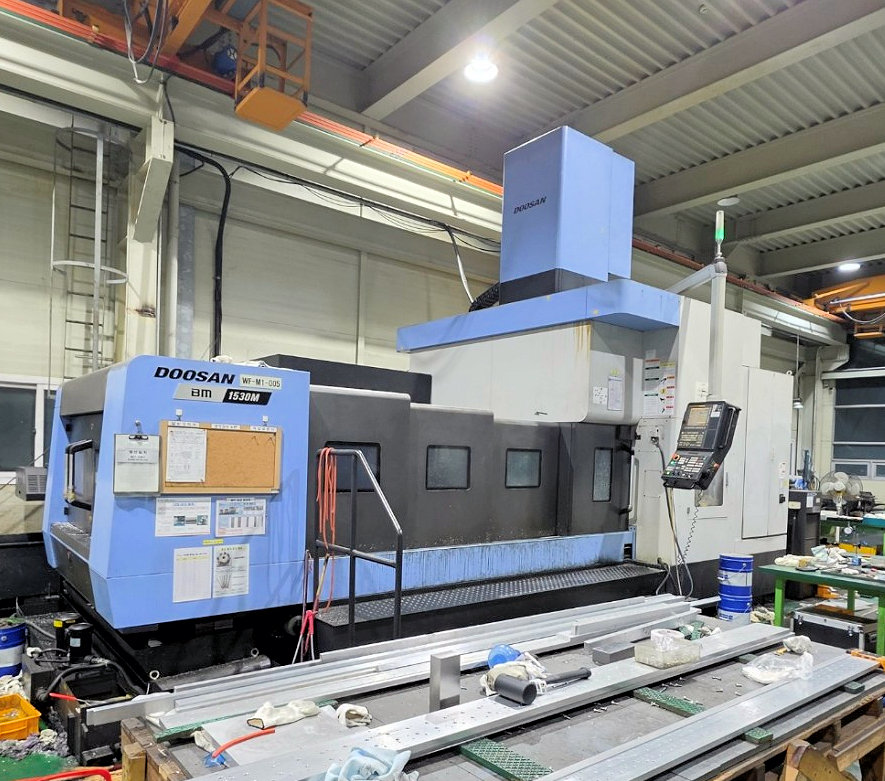

Doosan Model : BM1530 Double Column Machining Centre
Year of manufacture : 2017
Table : 1350mm x 3000mm / 8 ton load
Travels X/Y/Z : 3000mm x 1550mm x 800mm
Distance between columns : 1700mm
Scales X/Y/Z

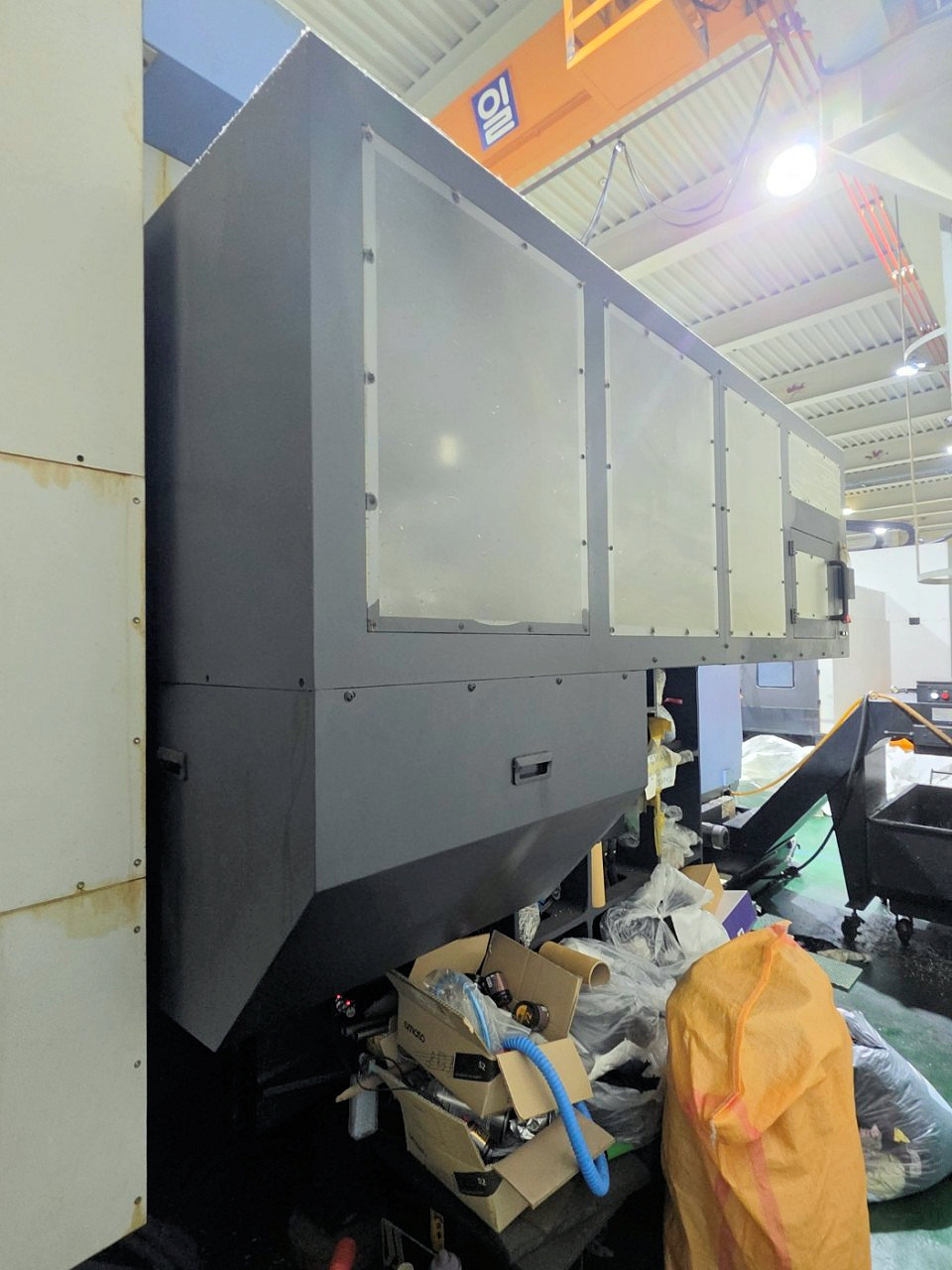

Full cover
Chip conveyor

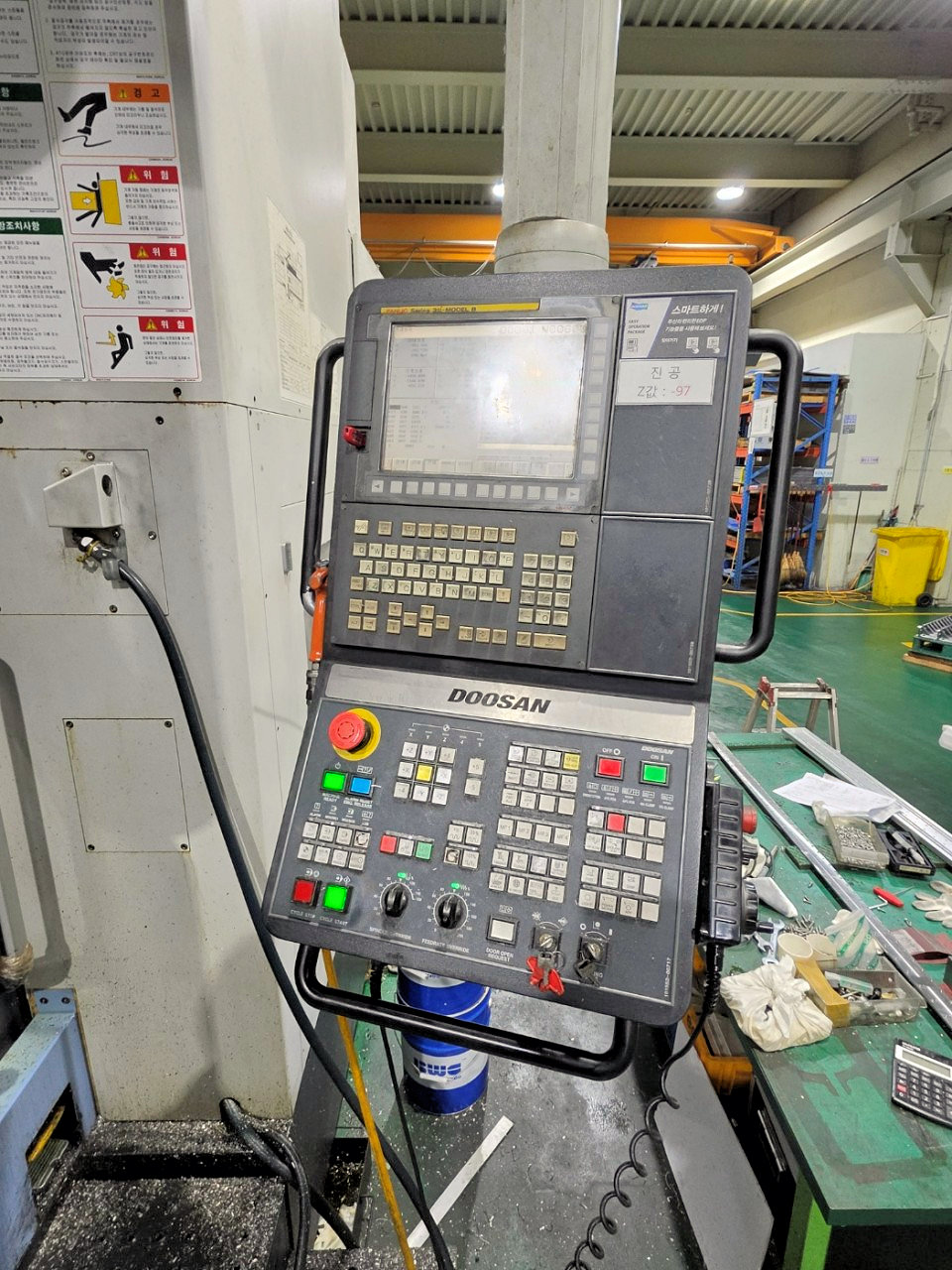

Fanuc 31iB control
The table is fitted with 2 or 3 lanes of roller-type LM Guideways for highest machining stability.
Cutting feedrate mm/min (ipm) 8000 (315.0)
BT50 taper, 12,000rpm spindle
25/30Kw motor
Vibration and noise minimized with built-in spindle
Long-nose spindle protrudes by 293 mm (11.5 inch), making it ideal for cutting deep pocket molds
Dual contact spindle included as a standard feature for high rigidity and vibration
Tool rigidity is enhanced by the firm clamping of the spindle. Tool lifecycle and cut-surface roughness have been improved as a result of the reduced vibration realized by the dual contact spindle.
Max. torque N·m (ft-lb) 420 (310.0)
Multiple thermal sensors are attached to minimize and compensate thermal displacement of the spindle and the structure.
Important parts of the structure are covered to minimize the impact of ambient temperature
Roller-type LM Guideways deliver high rigidity to guarantee the outstanding accuracy of the linear feed system.
All axes are equipped with the linear scale as a standard feature to maintain the highest degree of accuracy over many hours of operation.
Additional 200mm (7.9 inch) Y-axis for table self-cutting & extended cutting area.
40 tool ATC
Enhanced productivity realized with the CAM-type tool changer (standard) for quicker tool changing
Tool shank type - BT / CAT / DIN 50
Max. tool length mm (inch) 400 (15.7)
Max. tool weight kg (lb) 18 (39.7)
Tool selection type - MEMORY RANDOM
Tool change time (T-T-T) s 3.0
