2017 Doosan BM2740M

XYZ : 4000x2700x800mm

Get in touch

Send us your details and we'll get back to you shortly.

More detailed specifications for this product are being added — please contact us for full information.

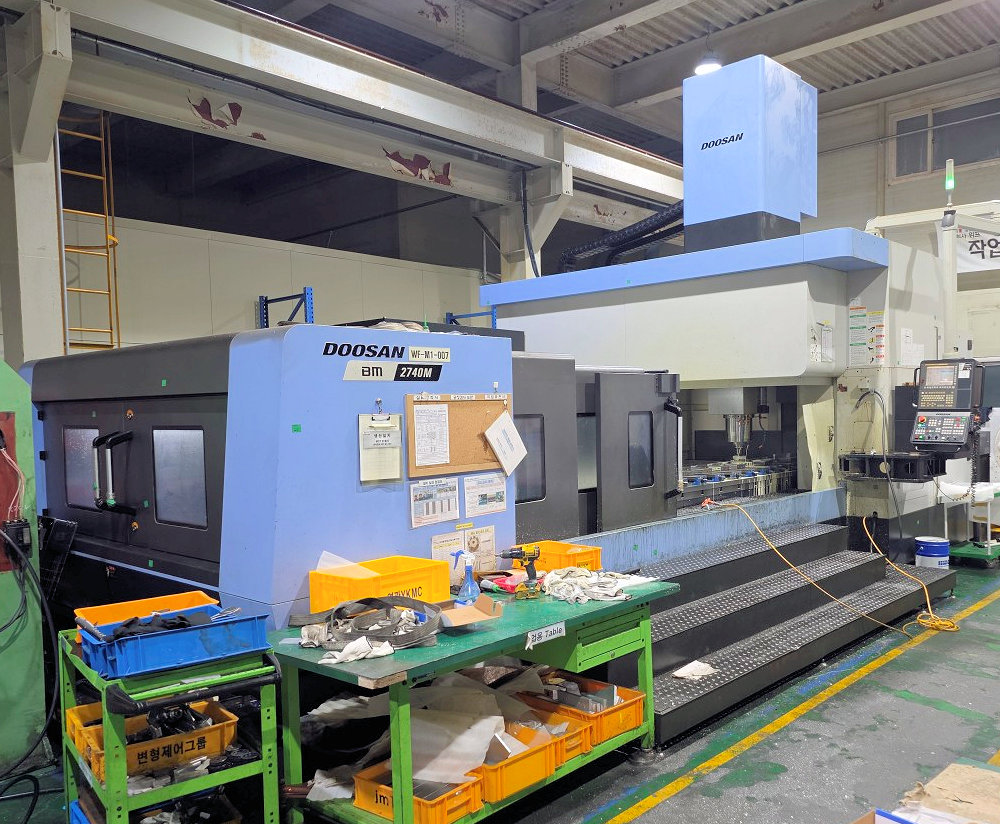

Doosan Model : BM2740M Double Column Machining Centre

Year of manufacture : 2017

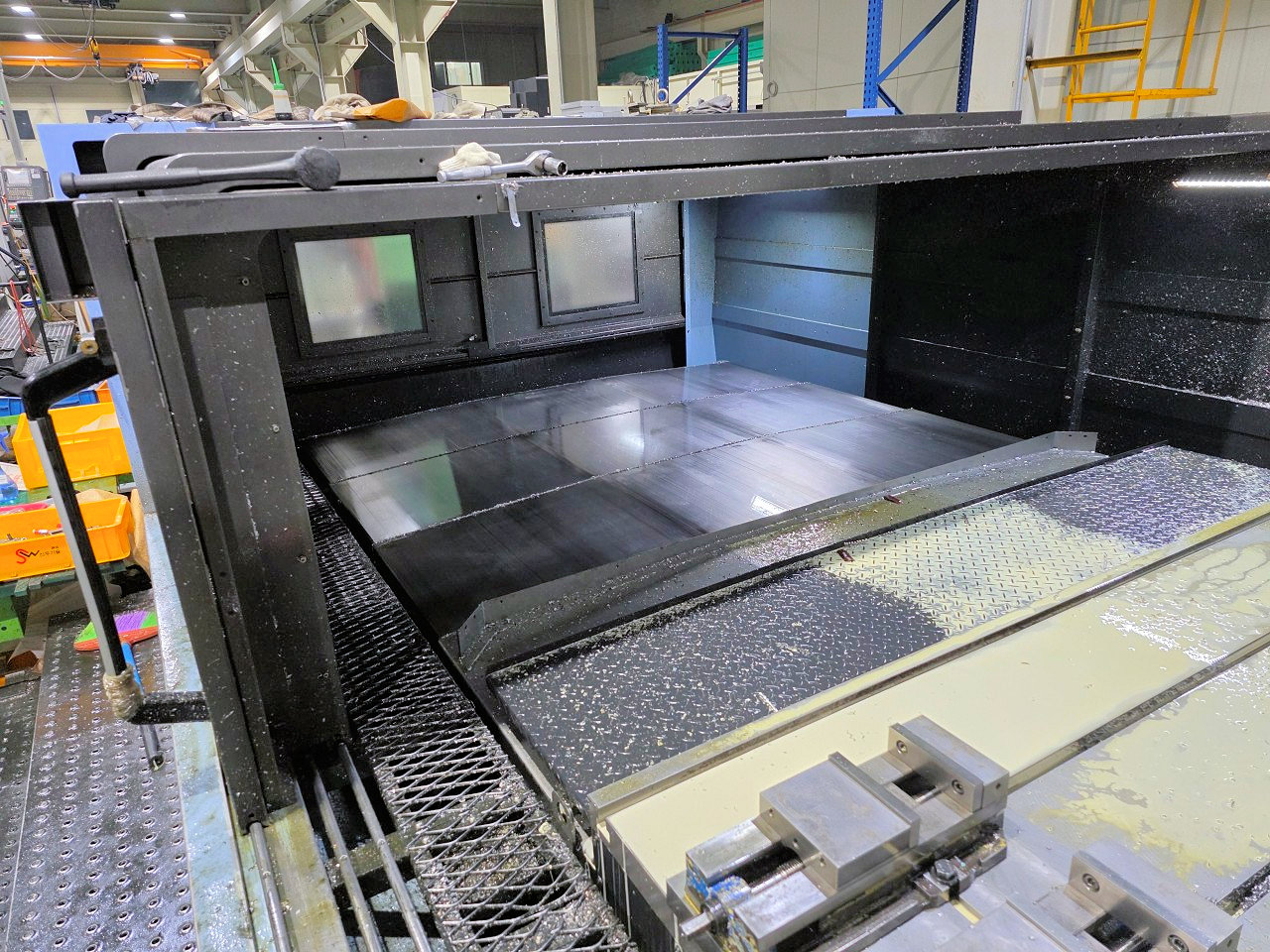

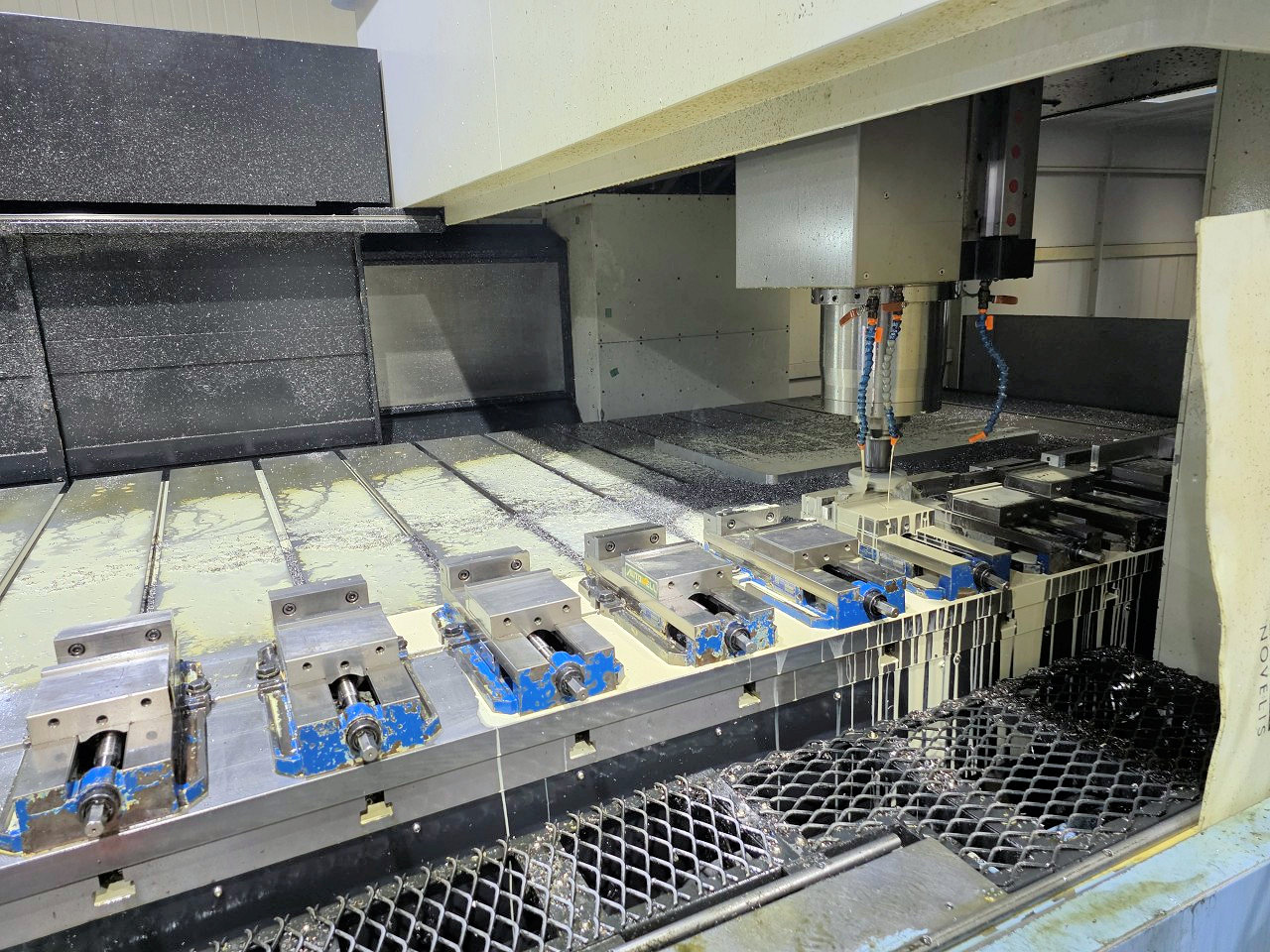

Table : 2500mm x 4000mm / 15 ton load

Travels X/Y/Z : 4000mm x 2700mm x 800mm

Distance between columns : 2700mm

BT50 taper, 12,000rpm spindle

25/30Kw motor

Scales X/Y/Z

40 tool ATC

Full enclosure

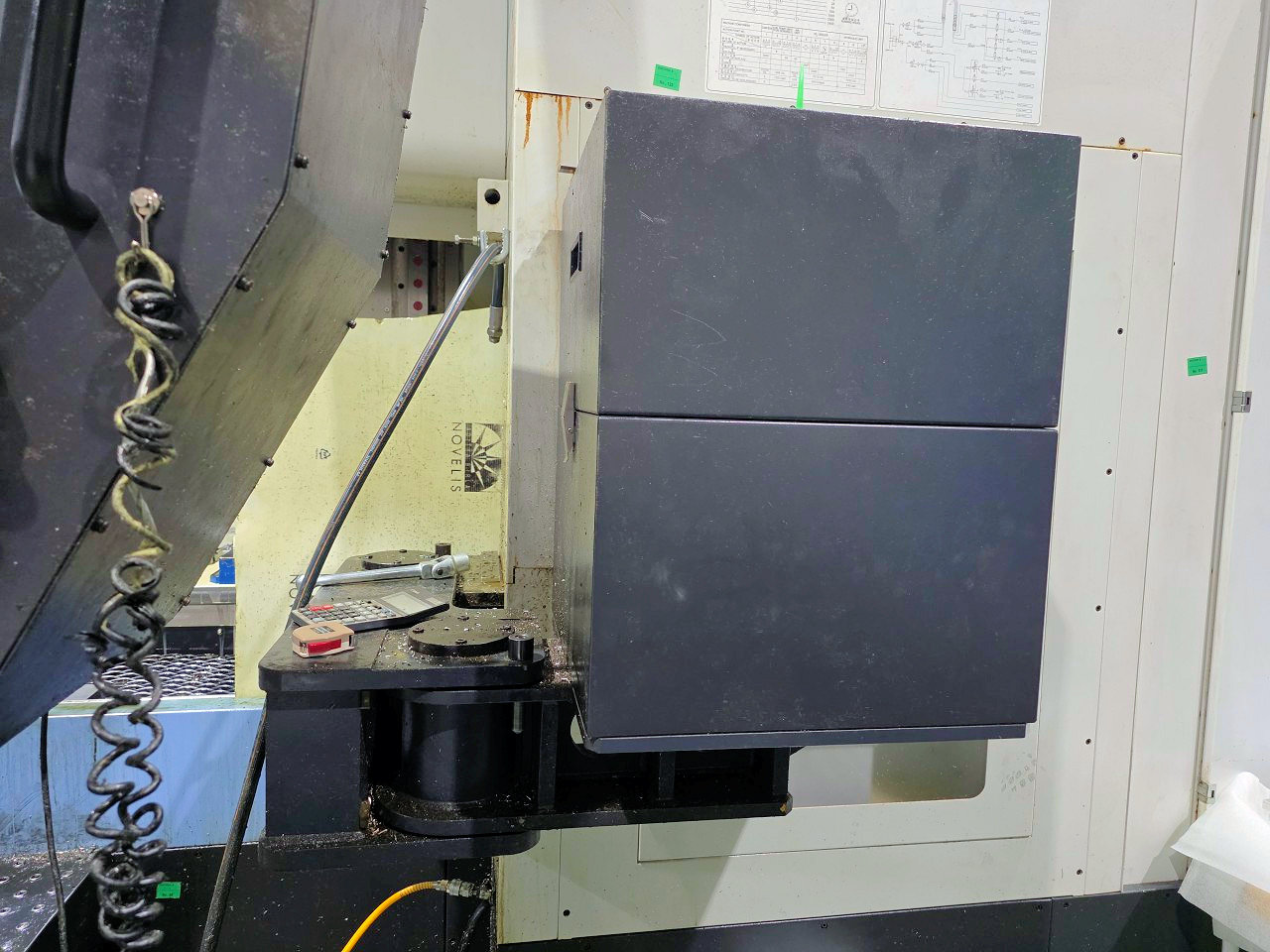

90 degree angle head

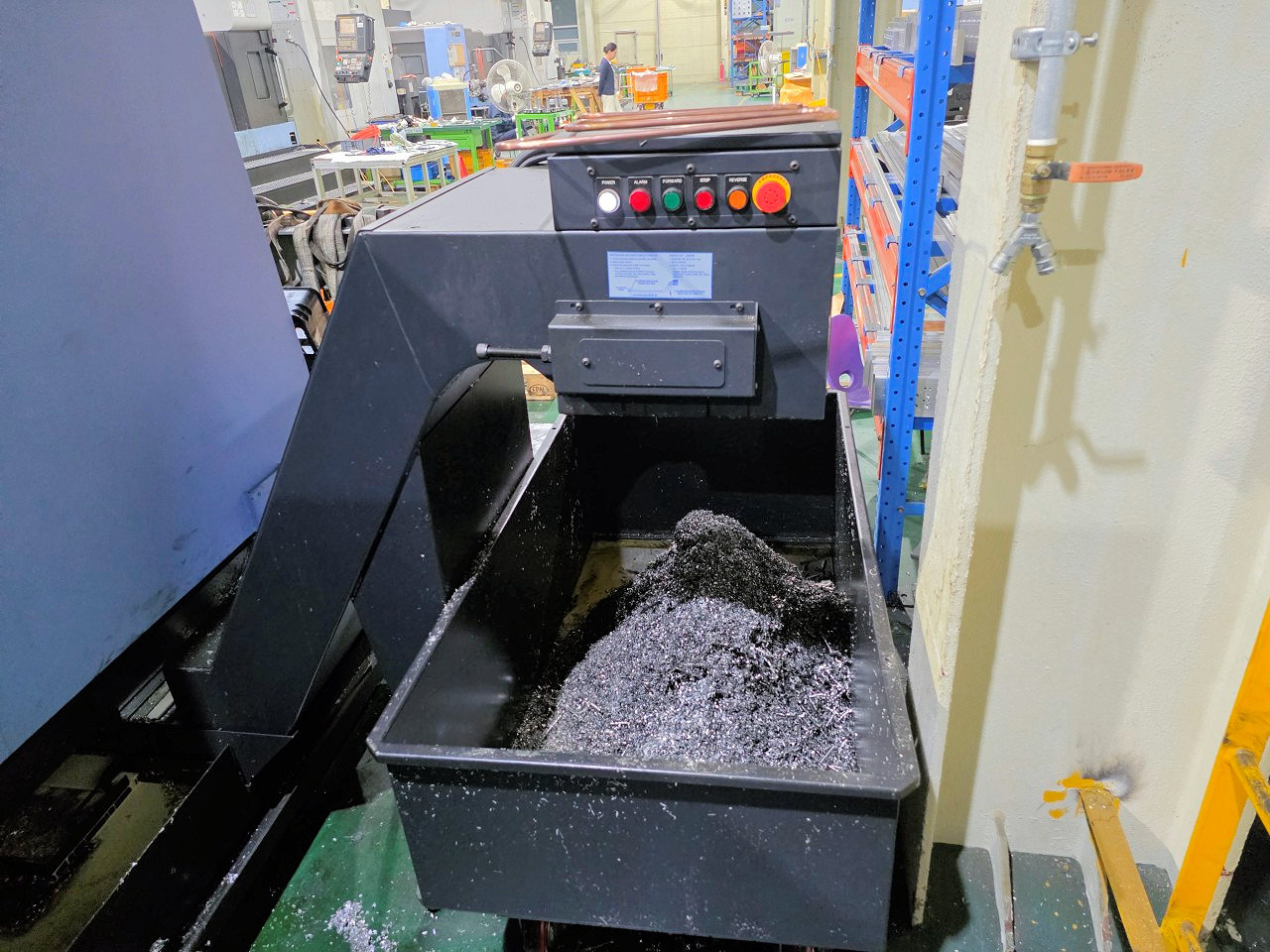

Chip conveyor

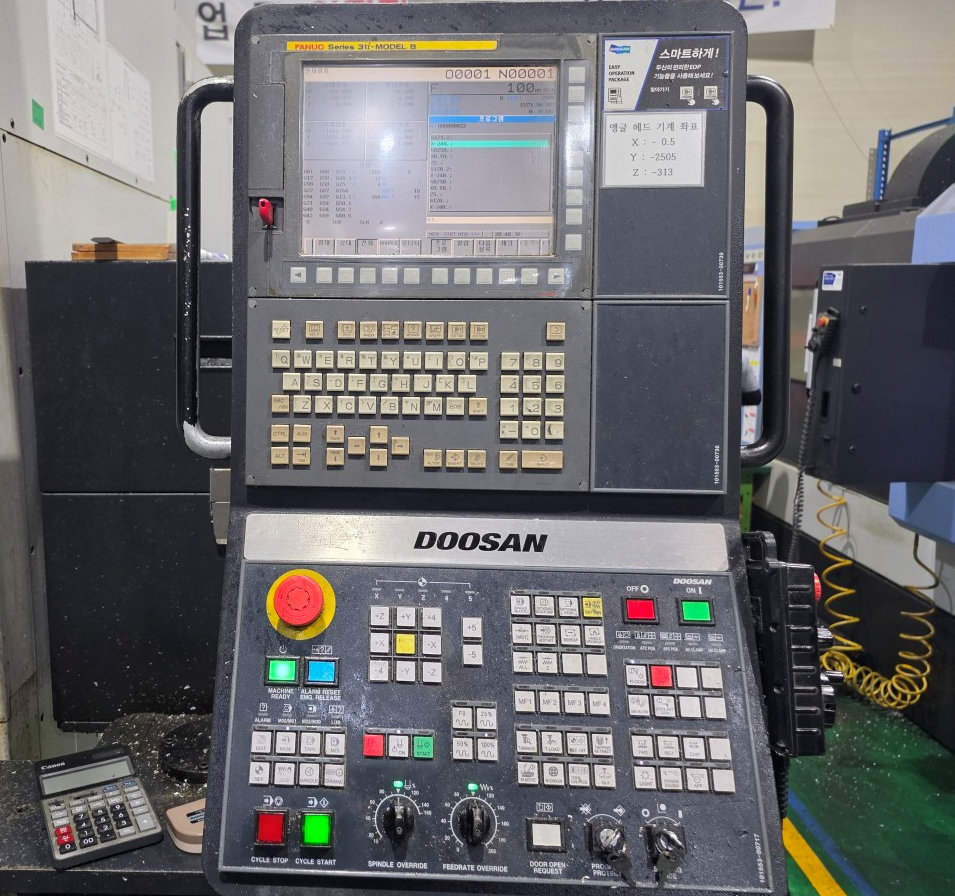

Fanuc 312iB control
