Image 1 of 52017 Hwacheon SIRIUS 1750L

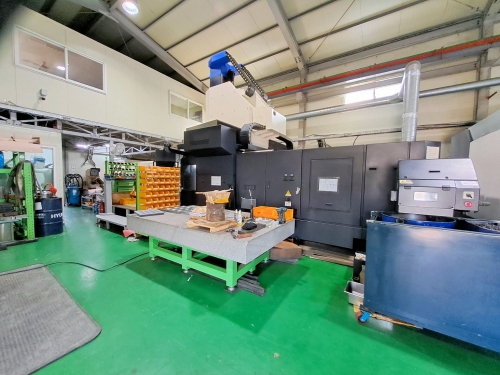

This Hwacheon SIRIUS 1750L double column machining centre offers precision large-part manufacturing with a 4-metre X-axis travel.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

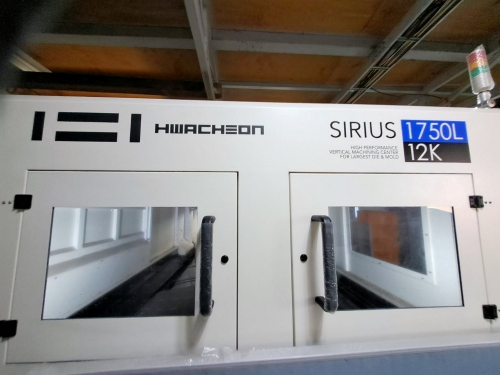

Hwacheon SIRIUS 1750L
- Model: SIRIUS 1750L Double Column Machining Centre
- Year of manufacture: 2017
- Table: 1750mm x 4200mm
- Maximum table load: 15,000 kgs
- X-axis travel: 4000mm
- Y-axis travel: 1750mm
- Z-axis travel: 800mm
- Spindle taper: BT50
- Spindle speed: 12,000 rpm
- Automatic Tool Changer (ATC) capacity: 40 tools
- X/Y/Z scales
- Tool setter
- Chip conveyor
- Full enclosure

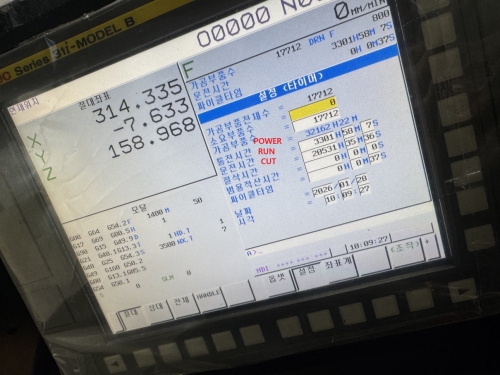

- Control: Fanuc 31i-B
The magnet on the table and tooling are not included.
