Image 1 of 42017 SNK RB7VM
This double column machining centre offers a substantial work envelope and high-capacity tool changer for large-scale machining operations.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

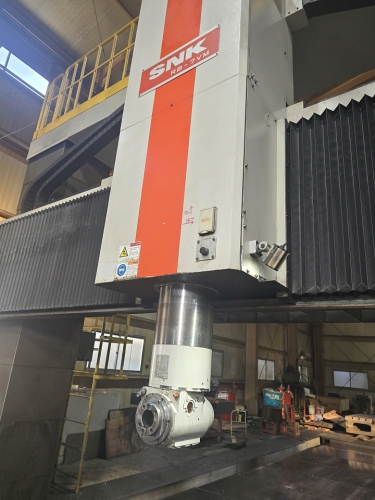

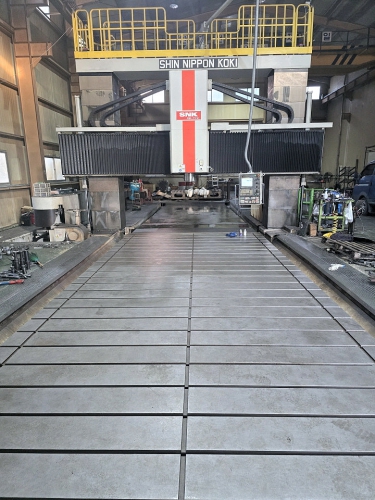

SNK RB7VM Double Column Machining Centre
- Date of manufacture: November 2017
- Table size: 3500mm x 8000mm
- Maximum table load: 30,000kg
- X-axis travel: 8250mm
- Y-axis travel: 4500mm
- Z-axis travel: 600x2100mm
- Distance between columns: 4100mm
- Spindle to table distance: 2500mm
- Spindle speed: 8000rpm
- Spindle motor: 22/26kw
- Spindle taper: BT50
- Automatic Tool Changer (ATC) capacity: 60 tools
- Scales on X/Y/Z axis
- AAC
- 90 degree angle head
- Chip conveyor

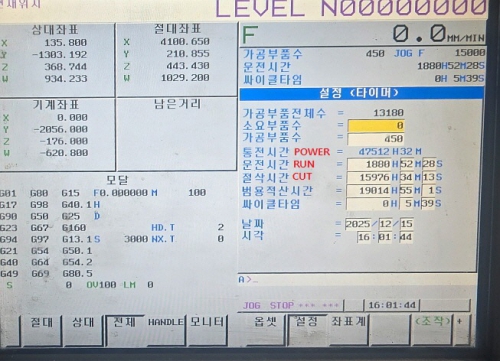

- Control: Fanuc 31iB
