Image 1 of 52019 Doosan DBM-2540
This multi-purpose double-column machining centre offers precision and capacity for large-scale operations with its substantial table and advanced controls.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
Doosan DBM-2540
- Model: DBM-2540 Multi Purpose Double Column Machining Centre
- Date of manufacture: August 2019
- Table size: 2000mm x 4000mm / 25,000kg load
- Travels X/Y/Z: 4250mm x 3000mm x 800mm
- Spindle speed: 8000rpm
- BT50 taper
- Ram size: 380mm x 380mm
- 37/55kw motor

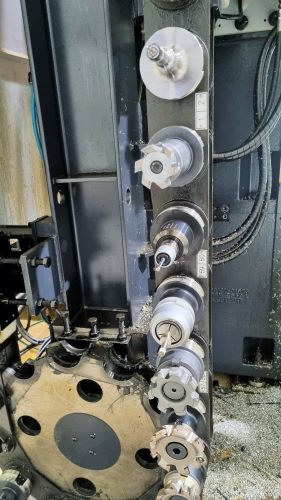

- 60 tool ATC
- Semi cover with rear top roof
- Scales X/Y/Z1/Z2 axis
- 90 degree angle head (6000rpm)
- AAC (swing 2 station)
- Part program 8M
- 20 bar through spindle coolant
- Renishaw tool length measurement
- DSQ 2 (Doosan Super Quality 2) software package
- Chip conveyor
- Fanuc 31iB control
