Image 1 of 52020 Doosan BM1530
This double column machining centre offers precision and performance with a 12,000rpm spindle and Fanuc 31iB control.
Get in touch
Send us your details and we'll get back to you shortly.
Overview

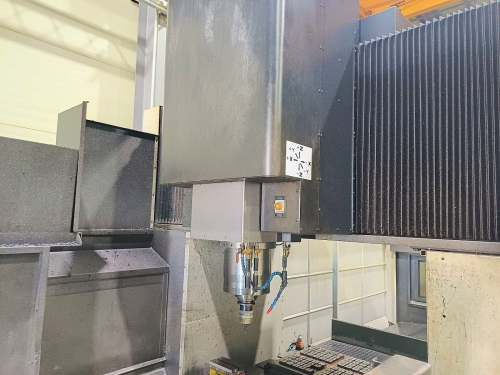

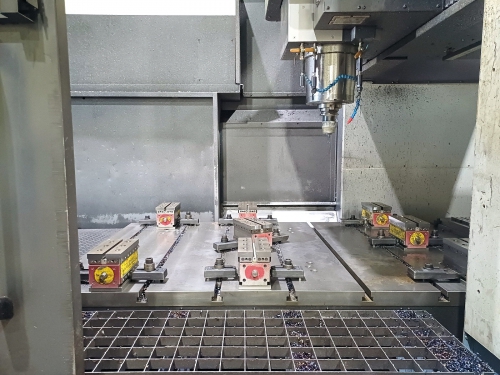

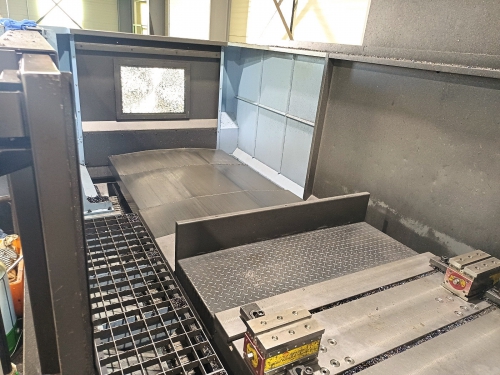

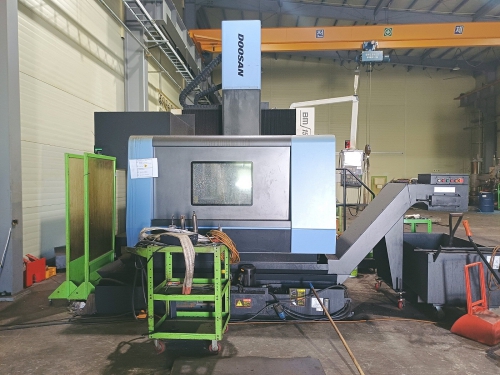

Doosan BM1530 Double Column Machining Centre
- Year of manufacture: 2020
- Table: 1350mm x 3000mm / 8 ton load
- Travels X/Y/Z: 3000mm x 1550mm x 800mm
- Distance between columns: 1700mm
- Spindle: 12,000rpm, BT50 taper
- Head motor: 25/30Kw
- Scales: X/Y/Z
- Tool setter
- ATC: 40 tool
- Chip conveyor
- Control: Fanuc 31iB
