Image 1 of 52022 Doosan Lynx 2100 LSYA
Compact, high-performance CNC lathe with turn-milling capability, ideal for complex part production.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
This is a Doosan Lynx 2100 LSYA Turn Mill CNC Lathe, manufactured in 2022.
- Max cutting diameter: 300mm
- Max cutting length: 510mm
- Bar capacity: 51mm
- Travel X/Y/Z: 205mm x 105mm x 560mm
- Main/sub spindle speed: 6000rpm
- Chucks: 8+5 inch
- Tool setter
- 2 sets of angular and straight milling holders
- Part catcher
- Chip conveyor

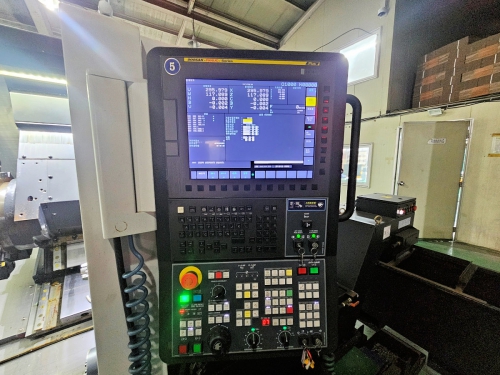

- Control: Fanuc
Four (4) machines are available.
