Image 1 of 52022 Hyundai Wia HD3100
500 x 780mm turning, 115mm bar capacity
Get in touch
Send us your details and we'll get back to you shortly.
More detailed specifications for this product are being added — please contact us for full information.
Product Details

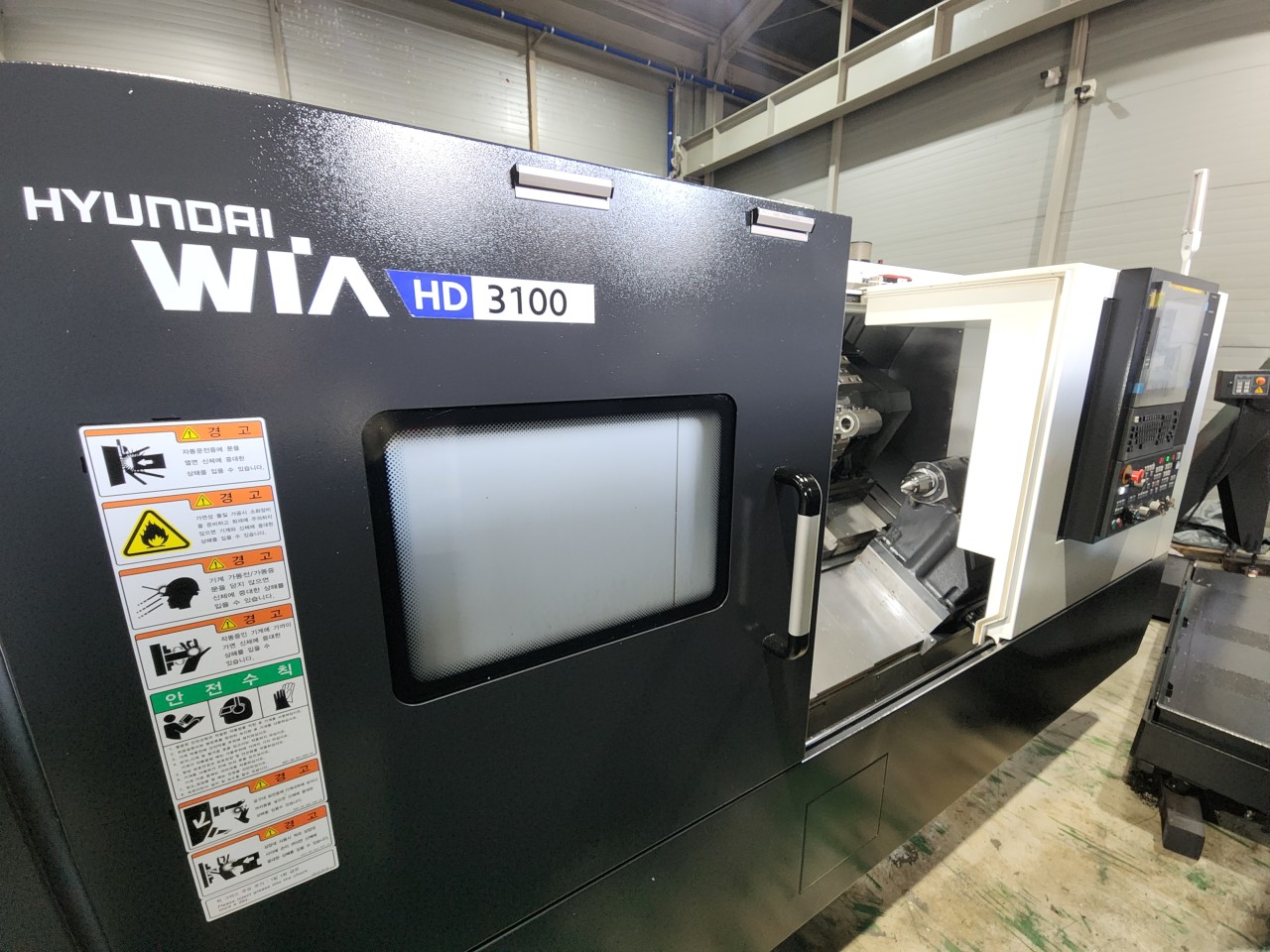

Hyundai Wia Model : HD3100 CNC Lathe
Date of manufacture : June 2022

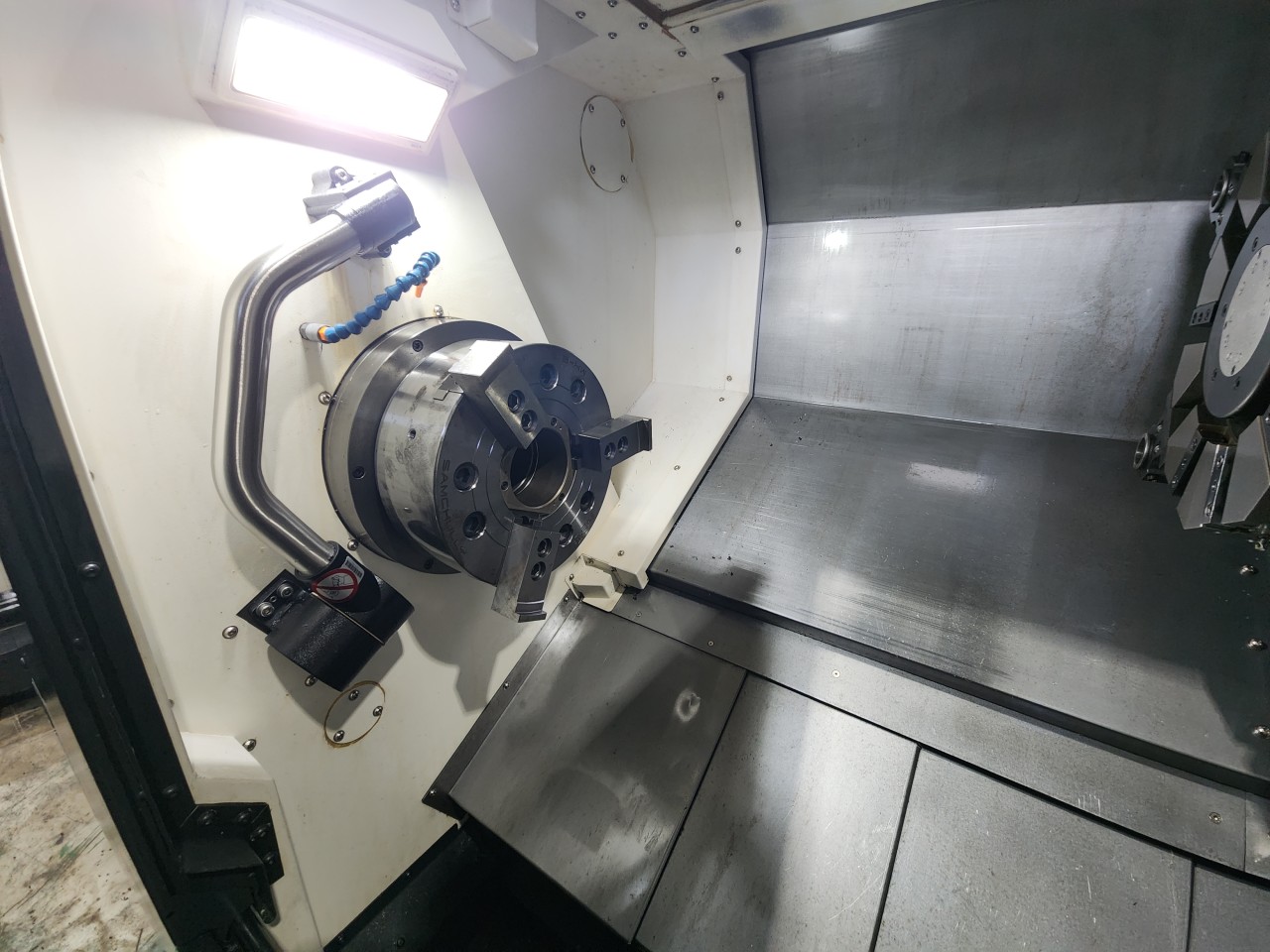

12 inch hydraulic chuck

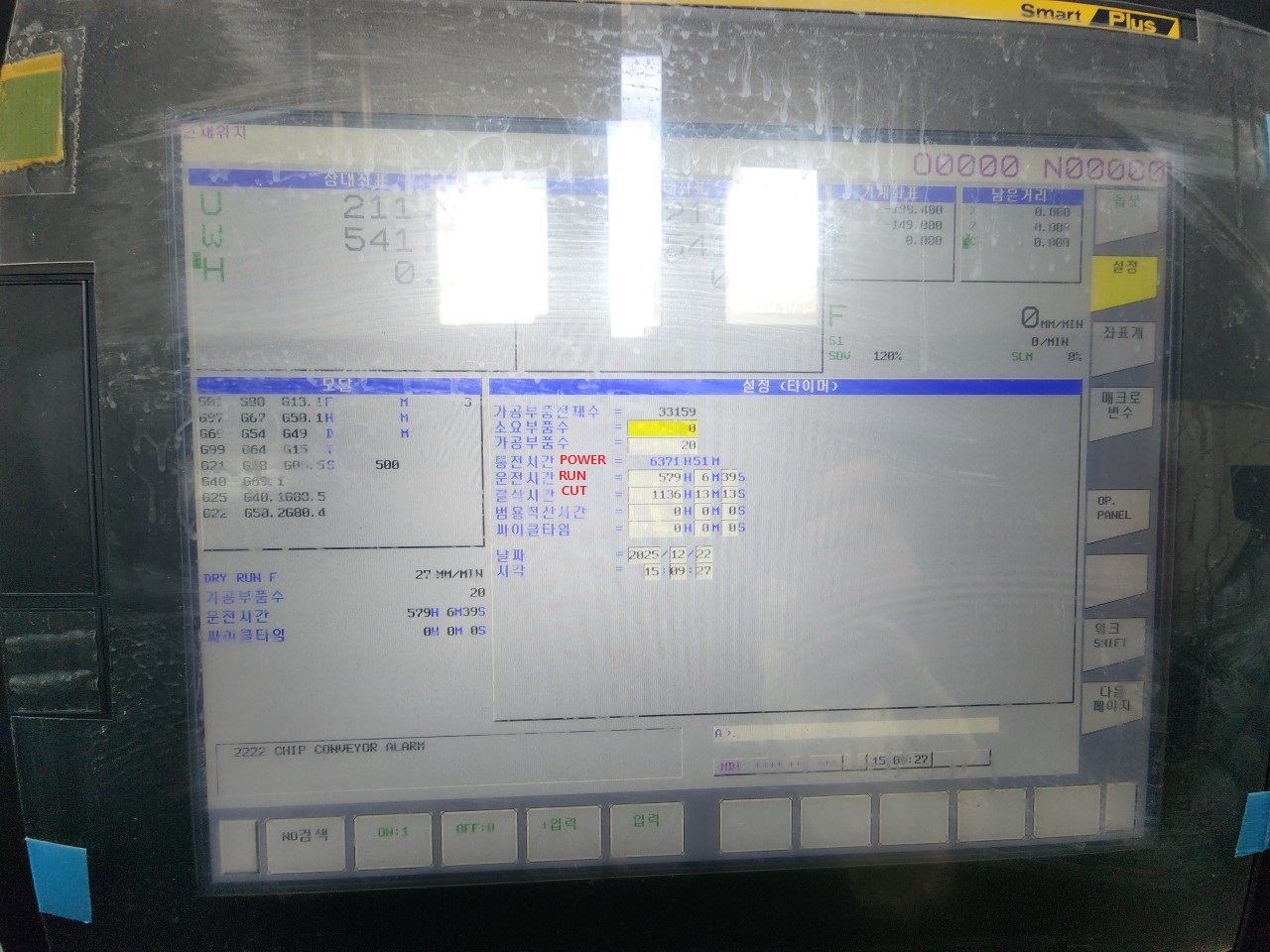

Fanuc control
Max cutting diameter : 500mm
Max cutting length : 780mm
Bar capacity : 115mm
Spindle speed : 2800rpm
Spindle motor : 18.5/26kw
10 position turret
Tool setter
Chip conveyor
Rapid Traverse Rate (X/Z axis) : 24/30 m/min (945/1,181 ipm)
Structural analysis was applied to the design of the machine to increase the tool post body and reduce the machine’s height so as to maintain the bed’s dynamic rigidity even during heavy-duty cutting. In addition, the HD2600/3100’s bed slope is pitched at 30̊ to ensure more stable machining.
With the mounting of box guideways on all axis, the machine offers excellent vibration absorption even against during heavy-duty cutting, enabling high-quality machining.
The guide attachment surface of X-axis guideway has been changed to a sealed GIB structure to minimize X-axis turcite damage caused by chips. As a result, the machining capacity has been greatly enhanced too.
The HD2600 and HD3100 feature torque of 734N.m and 1,123N.m, respectively, ensuring excellent performance in heavy-duty cutting, interrupted cutting, and so on. (specially designed for extra heavy workpiece)
Also, machining performance is enhanced by applying ribstar belt to minimize noise and belt slipping problems. The spindle is designed with a labyrinth structure to minimize possible bearing damage from coolant and to improve machining stability.

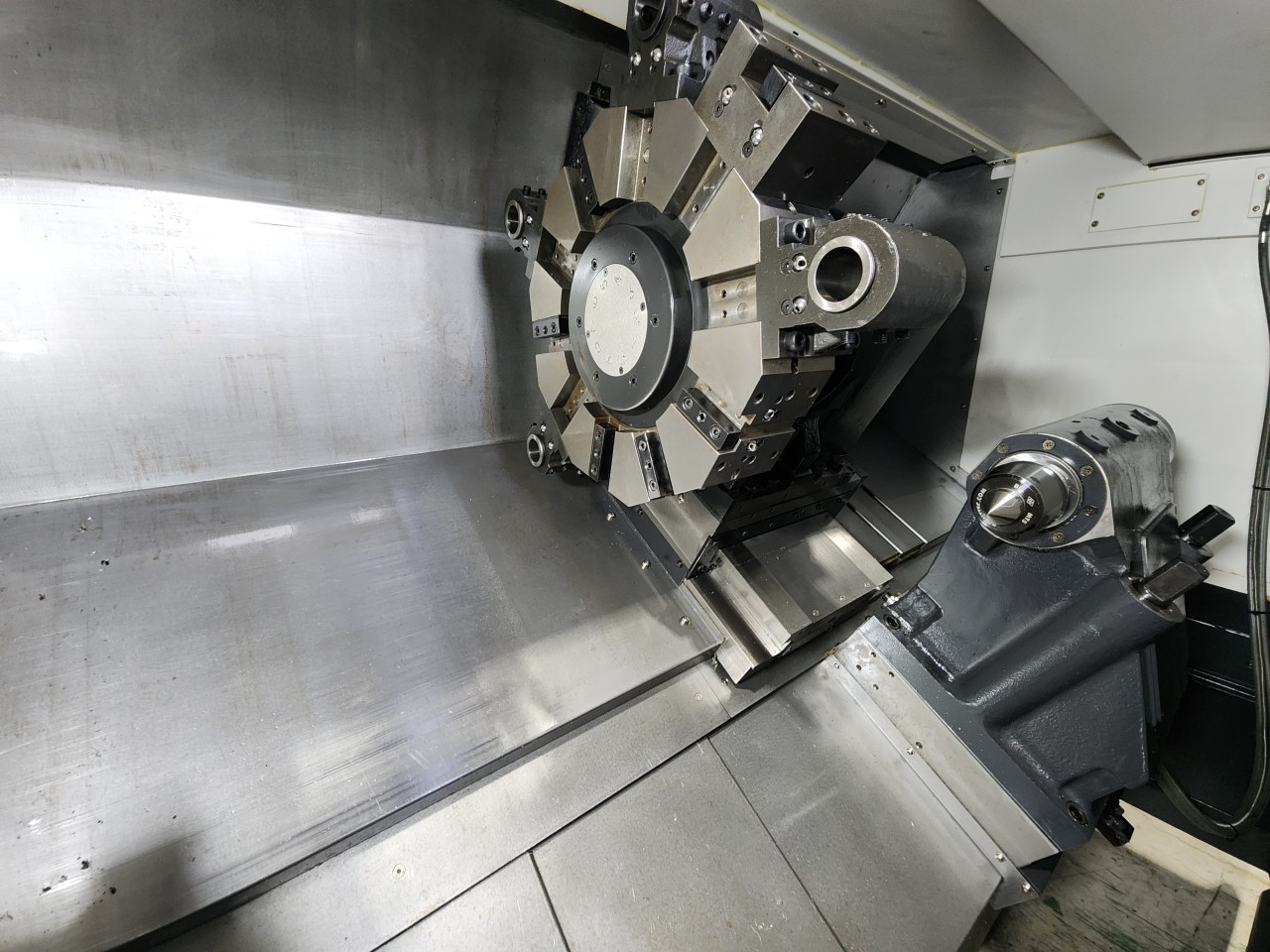

The HD2600 and HD3100 are fitted with tailstocks as a standard for excellent machining quality. In addition, the travel distance of quill can be as long as 120mm (4.7″), thus expanding the support area.
Quill Dia. : Ø100 mm (3.9″)
Reinforced Tailstock Rigidity : Thrust 742 kgf → 989 kgf

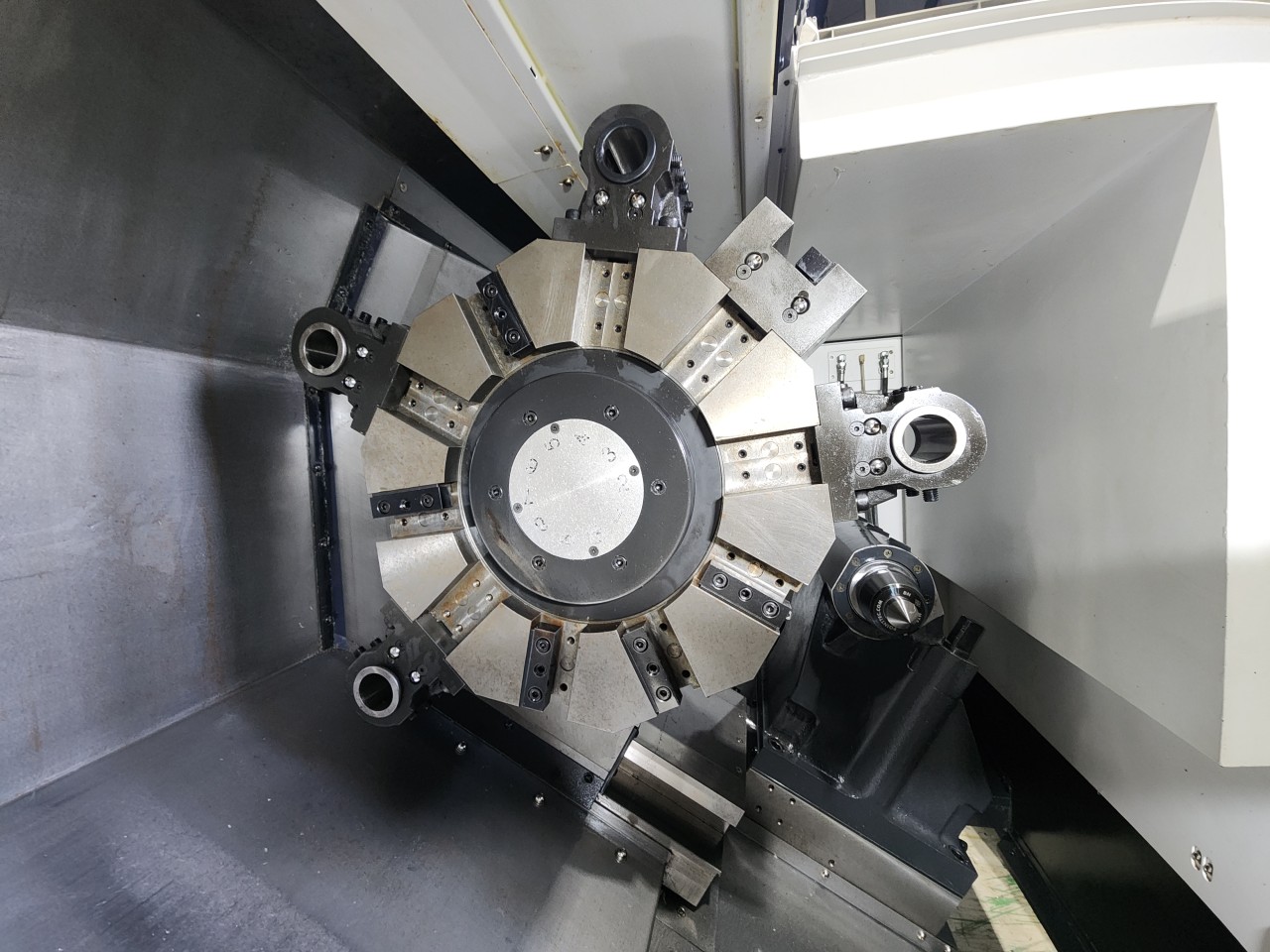

The turret of HD2600/3100 series is joined with a high performance AC servo motor, improving machining reliability. The 3-piece coupling shows excellent performance in indexing. Powerful hydraulic tool clamping minimizes tool tip deviation caused by workload.
O.D/I.D : □25/Ø50
Turret is designed to utilize 20 bar (290 psi) high pressure coolant and it shows optimum performance in machining difficult-to-cut material.
15″ Touch-type Monitor as a standard
Part Program Storage 5120M (2MB)
No. of Registerable Programs 1000 EA
Dialogue Program (Smart Guide-i)
This software offers the maximum user convenience through dialogue manipulation from setup to processing. This includes writing processing programs and simulation checks.
