Image 1 of 72023 Doosan Mynx-7500/50II
XYZ : 1525x762x625mm, BT50 gearbox spindle
Get in touch
Send us your details and we'll get back to you shortly.
More detailed specifications for this product are being added — please contact us for full information.
Product Details

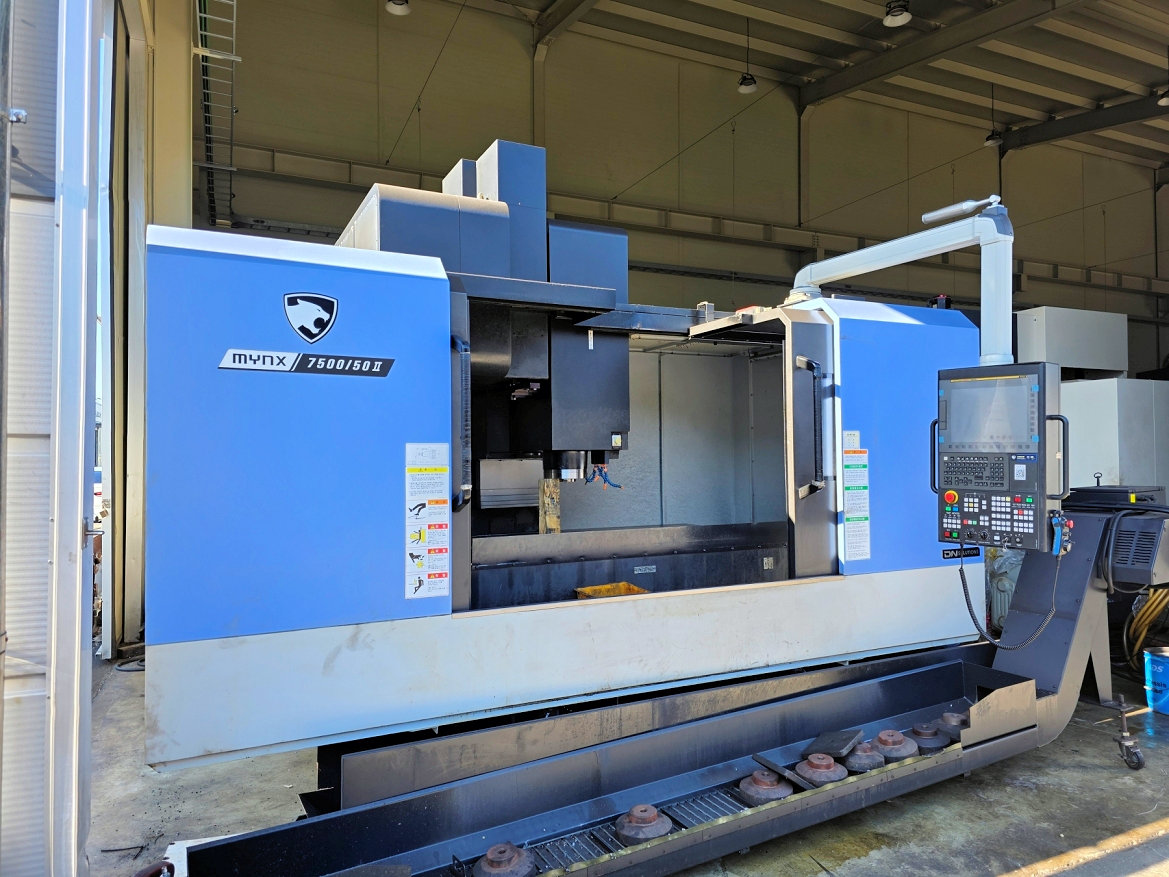

Doosan (DN Solutions) Mynx-7500/50II Vertical Machining Centre
Year of manufacture : 2023
Travels X/Y/Z : 1525mm x 762mm x 625mm

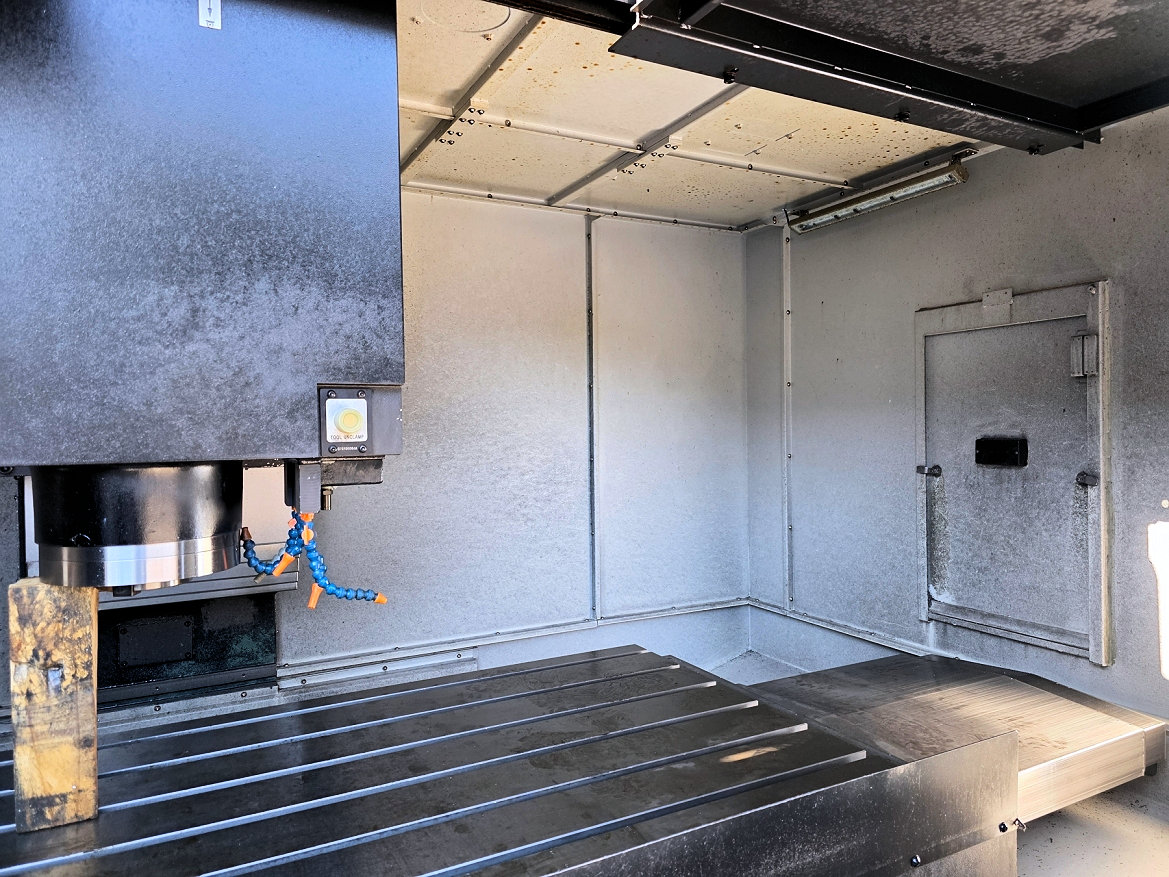

Table : 1600mm x 750mm / 1500kg load
Spindle taper : BT50
18.5/22kW motor

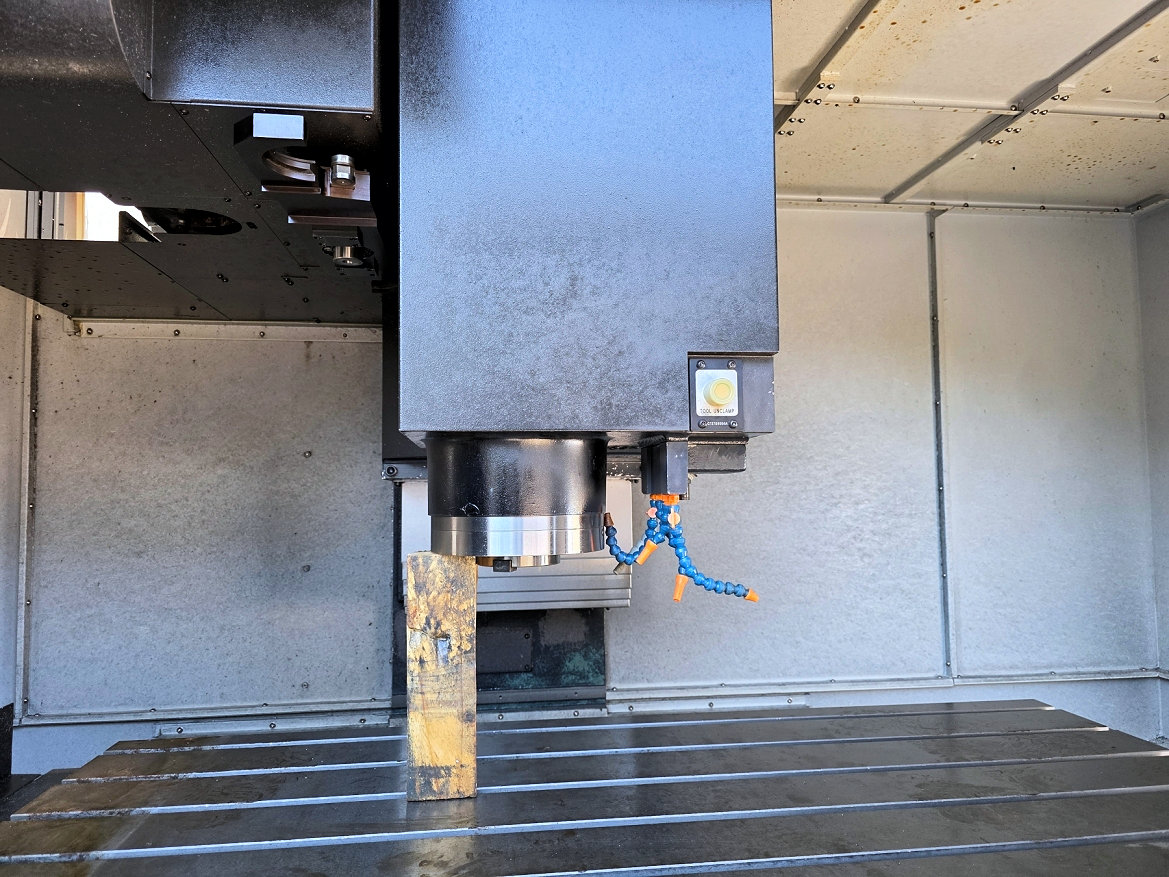

Spindle speed : 6000rpm (gearbox type)
Through spindle coolant
40 tool ATC
Chip conveyor
Fanuc control
High-rigidity machine structure provides high durability and stable accuracy during heavy duty cutting.
Applied a highly rigid box guideway structure suitable for heavy cutting. The extended box-type guideways improve the machine durability as well as rigidity and stability.
The surface of moving elements are coated with Rulon 142 material to reduce friction and stick-slip. This material is carefully hand-scraped to achieve optimum accuracy.
The MynxⅡseries spindles support Direct-driven, Belt-driven, Gear-driven, Built in-driven systems. Dual contact tool system support as standard.
The system enables simultaneous dual-contact of tapered side using elastic deformation of the spindle and perfect gauge control.
Higher productivity can be achieved with the CAM-type tool changer that supports faster tool changing.

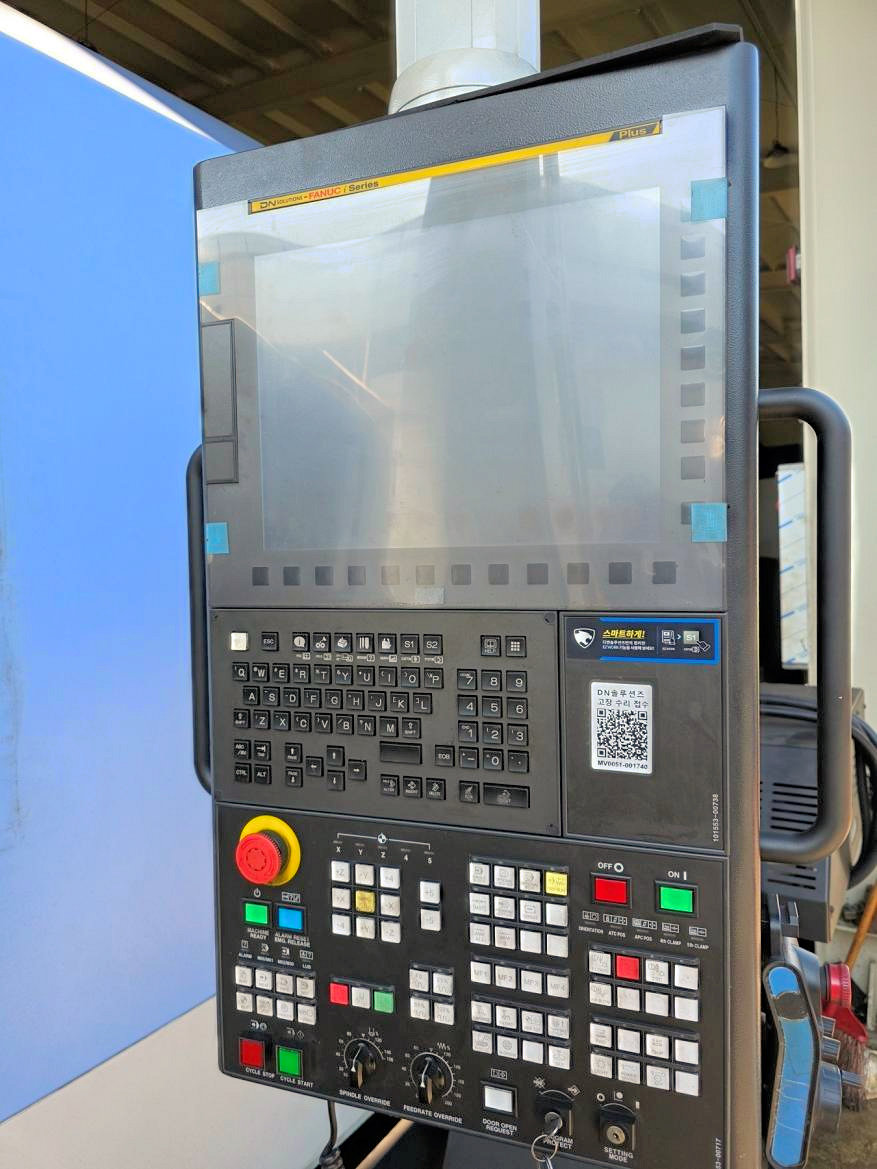

DOOSAN Fanuc i Plus' operation panel enhances operating convenience by incorporating common-design buttons and layout, and features the Qwerty keyboard for fast and easy operation.
15 inch color display
EZ-guide i standard
Ergonimic operator panel
2MB Memory
iHMI provides an intuitive interface that utilizes a touch screen for quick and easy operation and provides a variety of applications that can help machine operation.
The software developed by Doosan's own technology provides numerous functions designed for convenient operation.
Function to control feedrate so that the cutting can be carried out at a constant load
Function to automatically monitor tool load
Function to show detailed info on frequently triggered alarms and recommended actions
Function to view sensor conditions of the machine
