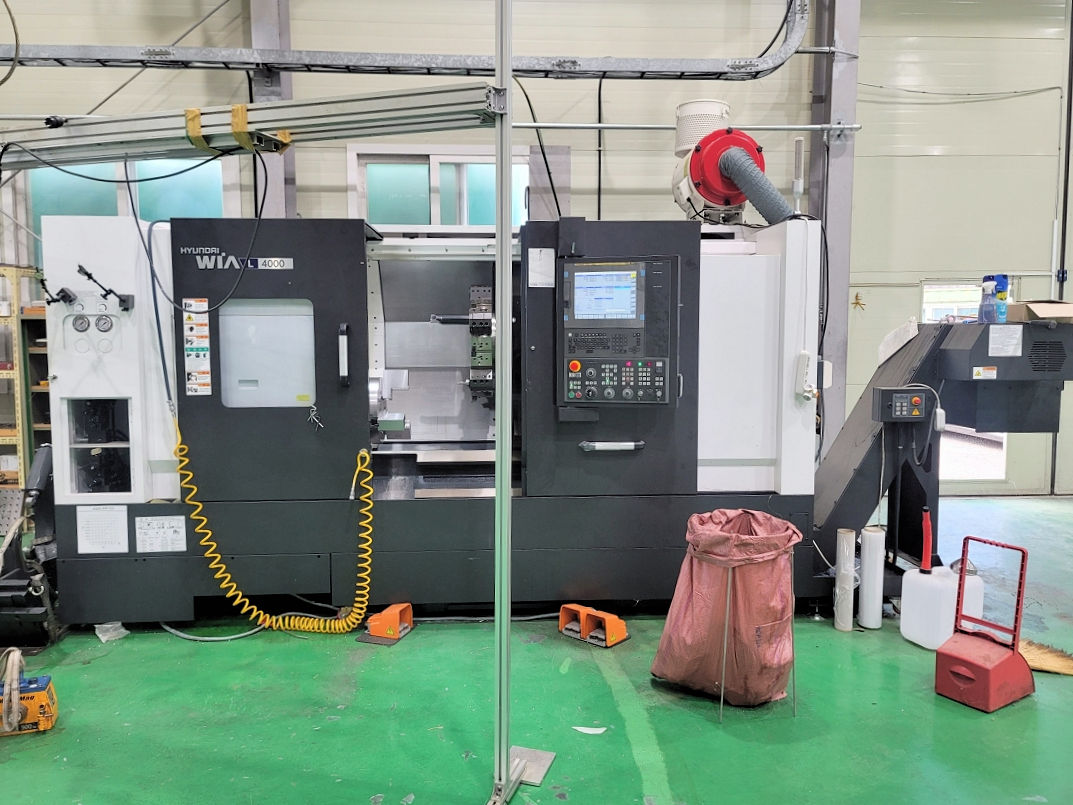

Image 1 of 102024 Hyundai Wia L4000
570 x 1043mm turning, 117mm bar capacity
Get in touch
Send us your details and we'll get back to you shortly.
More detailed specifications for this product are being added — please contact us for full information.
Product Details

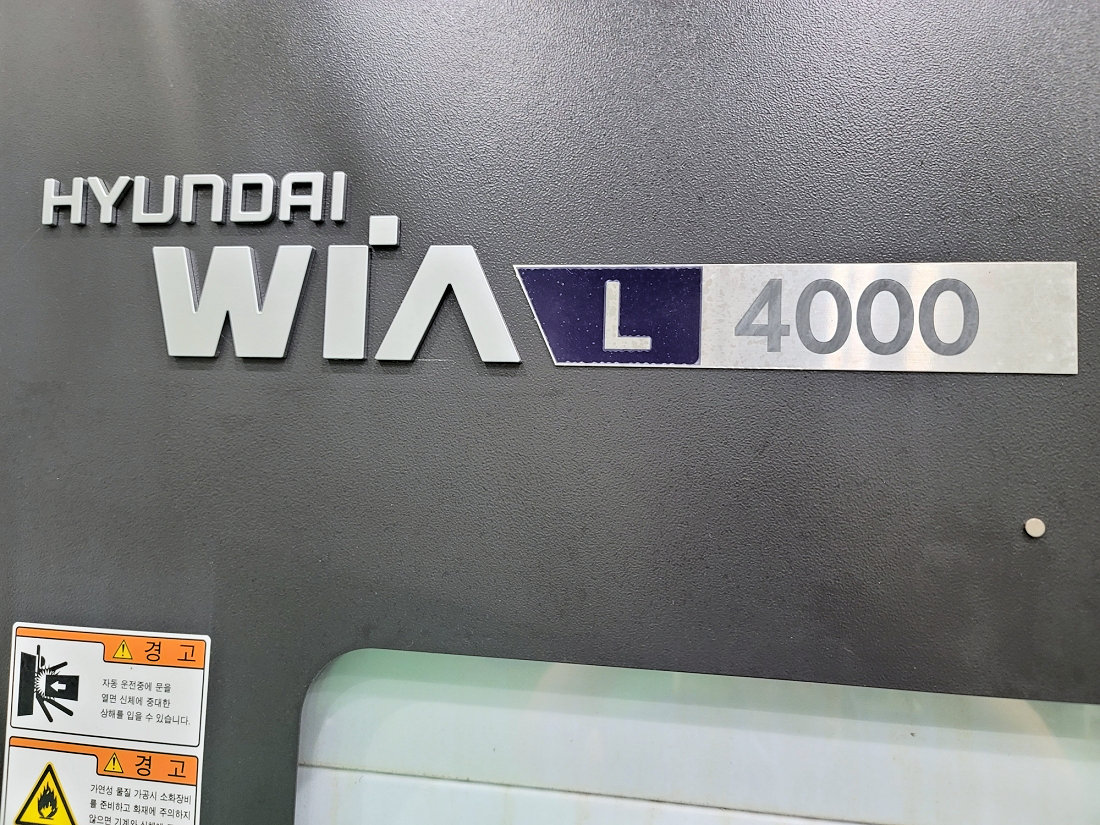

Hyundai Wia Model : L4000 CNC Lathe
Date of manufacture : July 2024
Max cutting diameter : 570mm
Max cutting length : 1043mm
The L4000 Series features a 45° slant bed design which is developed through finite element analysis (FEA) to absorb vibration and minimize thermal displacement so as to maintain high stability.
With the mounting of box guideways on all axis, the machine offers excellent vibration absorption even against during heavy-duty cutting, enabling high-quality machining.
The contact area between the saddle and the cross-slide has been increased for high rigidity.
Large diameter ball screws with preloading prevent deformation due to heat. Also double-anchor suppport method improves rigidity.
Rapid Traverse Rate (X/Z) 16/20 m/min (623/787 ipm)
Bar capacity : 117mm

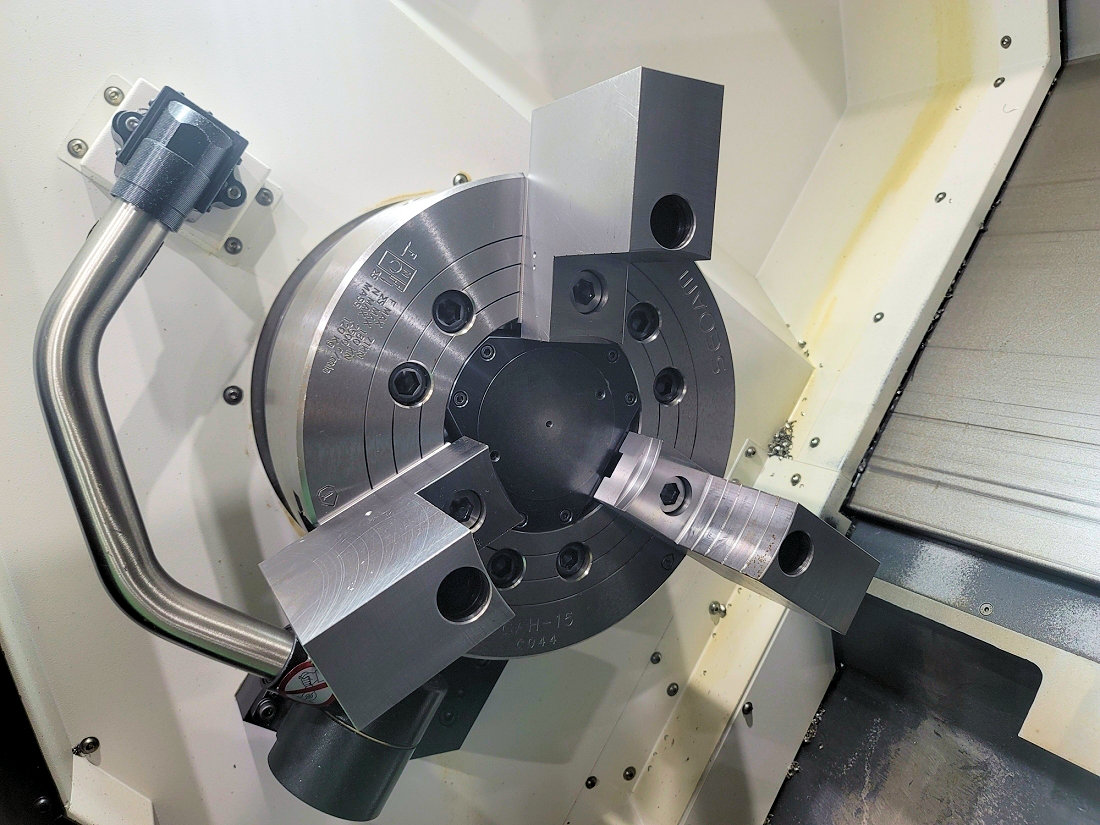

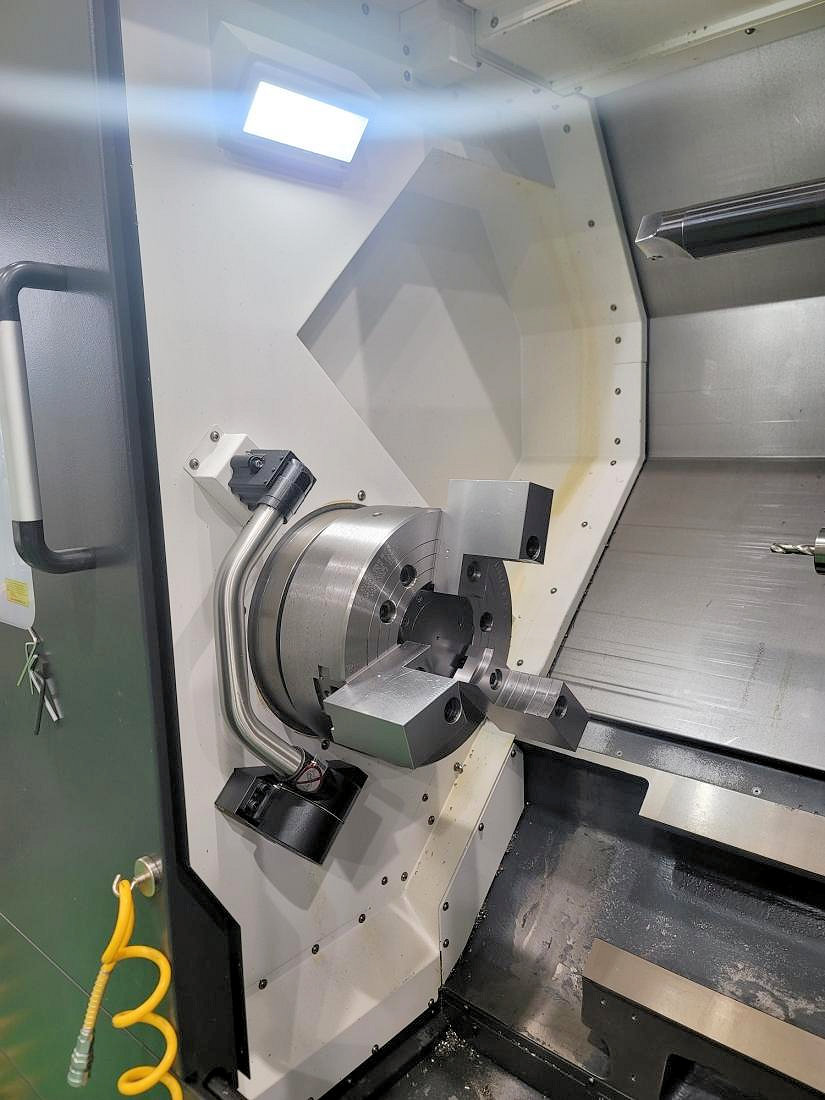

15” hydraulic chuck
L4000 Series : 2,000 r/min
High-precision double-row cylindrical roller bearings and angular contact bearings offer increasement in rigidity of the spindle. In addition, the two-step gearbox guarantees strong torque at low speed and stable machining capability at high speed.
C-axis of L4000 Series can be controlled to 0.001° which makes it possible to process various shapes.
10 position turret
Tool Size (O.D/I.D)
□32/Ø60 (Ø1 1/4″/Ø2 1/4″)
The turret of L4000 series is applied with high performance AC servo motor, improving machining reliability. 3-piece coupling shows excellent performance in indexing.
Powerful hydraulic tool clamping minimizes tool tip deviation caused by load.
Tool setter

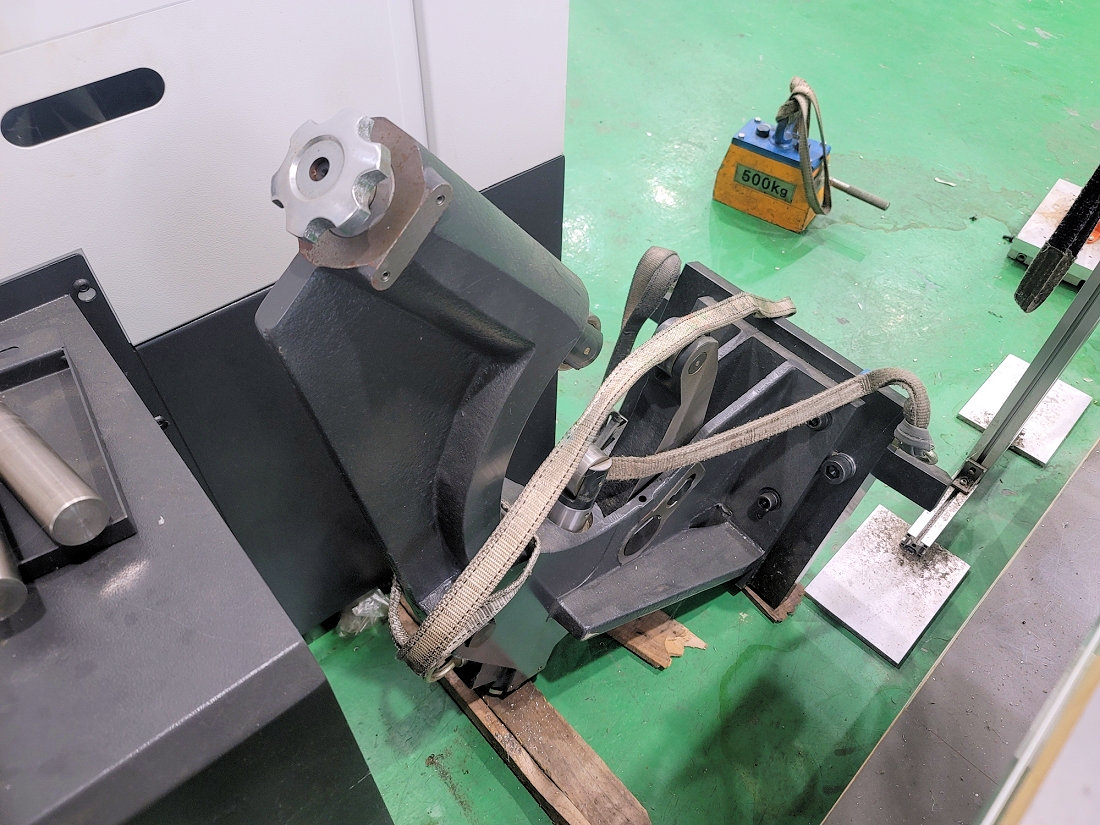

Manual steady rest

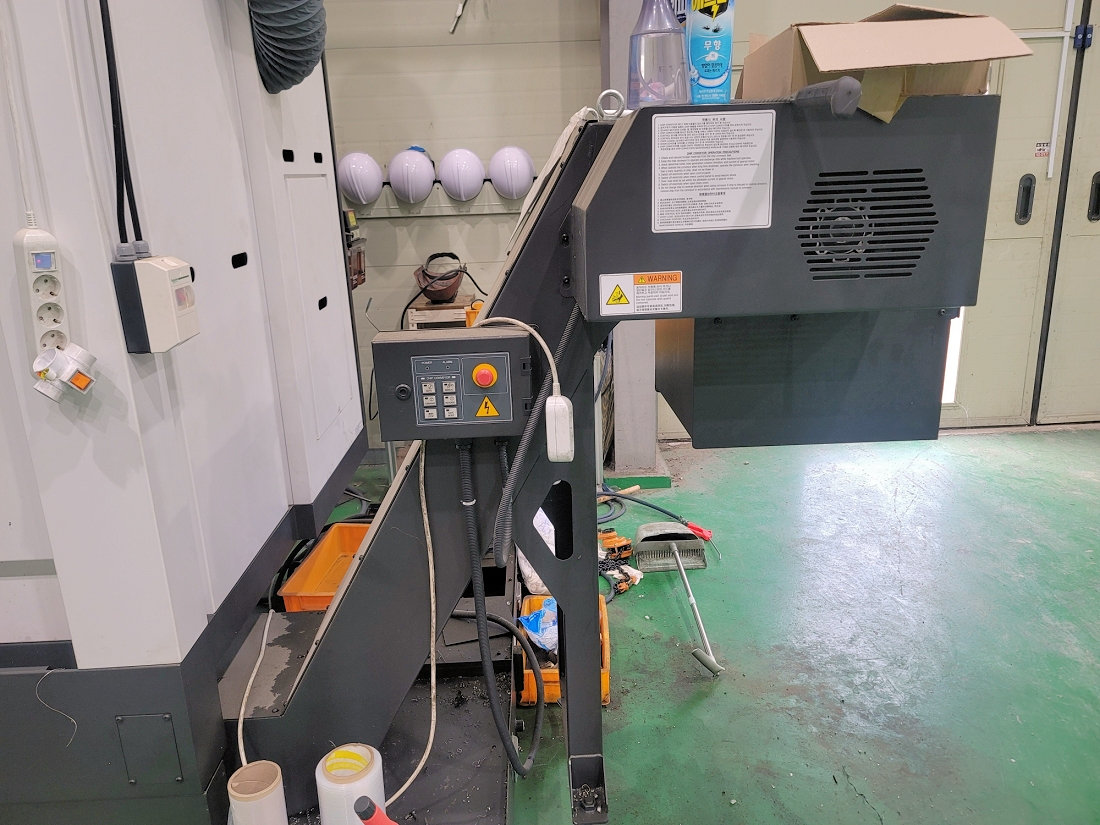

Chip conveyor

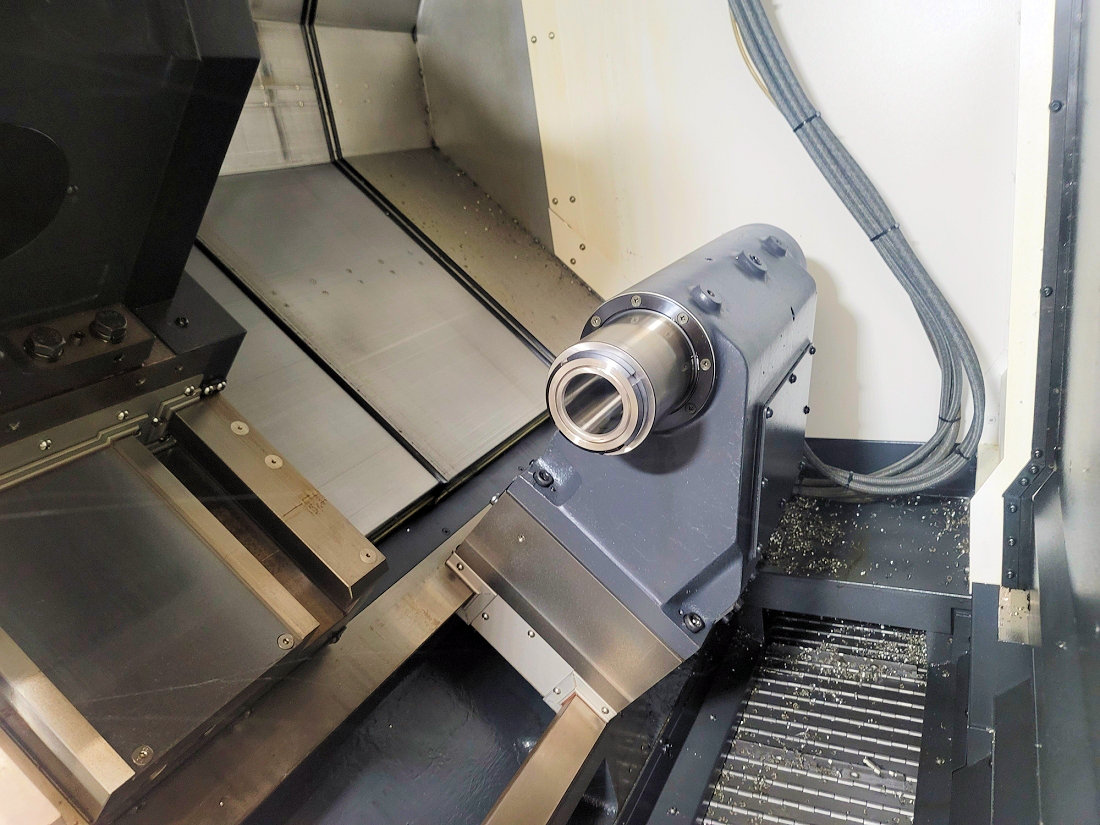

The large tailstock of Ø120mm is applied for high rigidity. The tailstock provides extra support with 120mm (4.7″)travel. (MT#5 Built-in Tail Stock : Option)
For long parts, such as shafts, the steady rest increases rigidity and minimizes vibration.
Timely and effective disposal of chips will enhance productivity as well as the working environment.

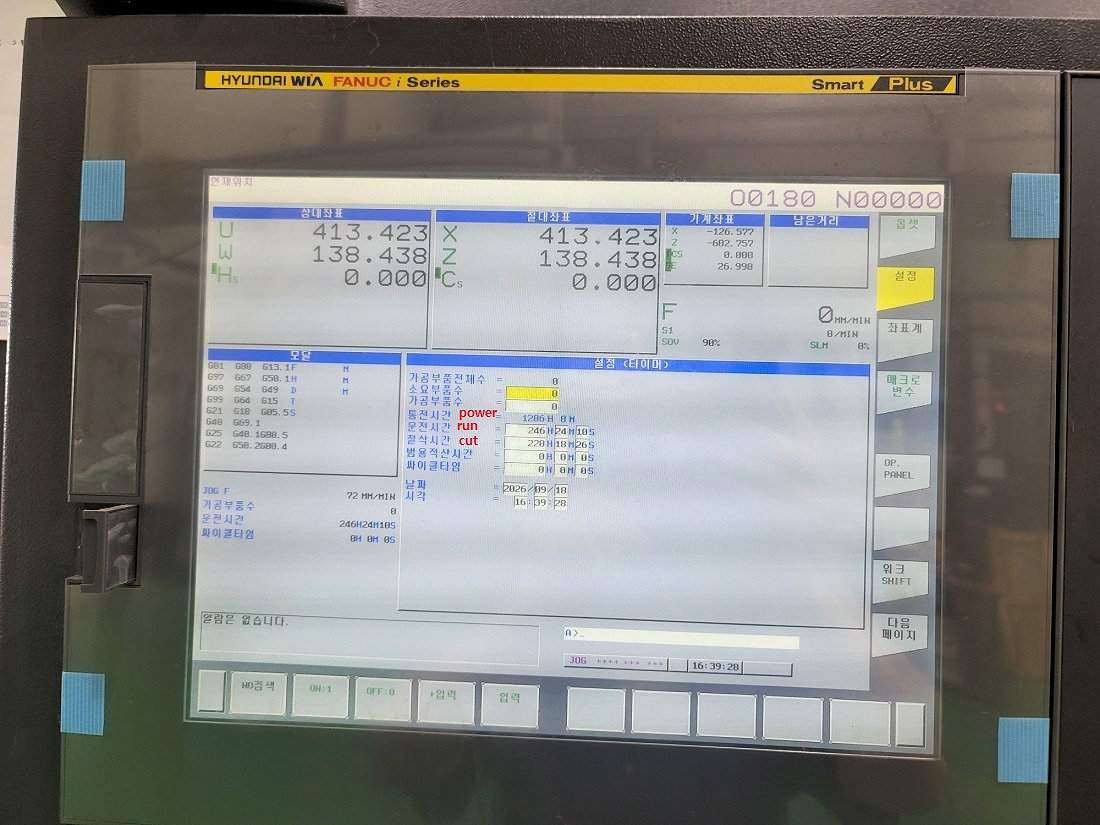

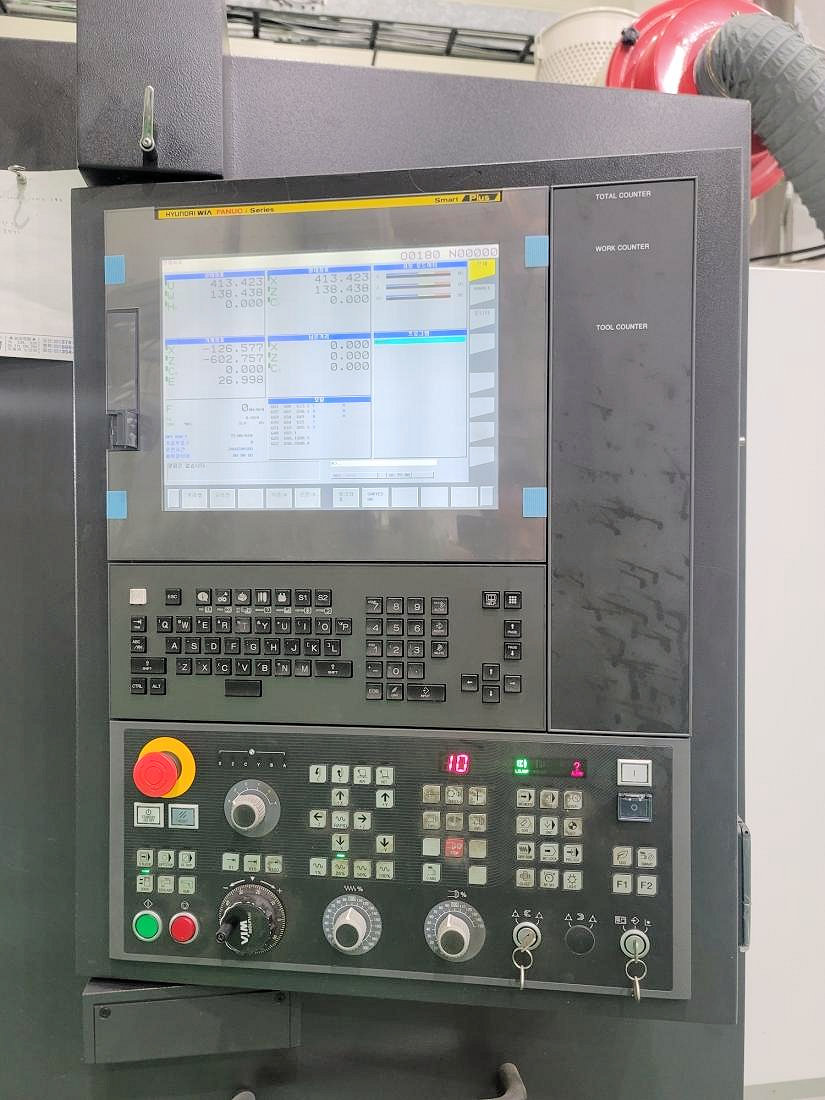

Fanuc control
15″ Touch-type Monitor as a standard
This software offers the maximum user convenience through dialogue manipulation from setup to processing. This includes writing processing programs and simulation checks.
