Image 1 of 5720mm or 800mm AJAX
CNC lathe series with 720mm or 800mm swing, available with various centre distances and spindle bores, ideal for jobbing or short production.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

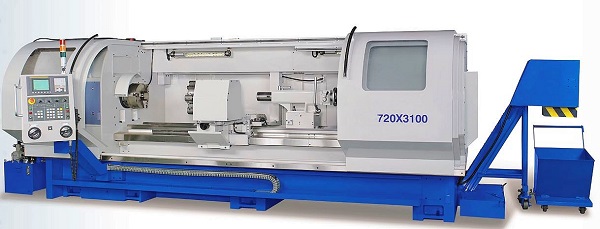

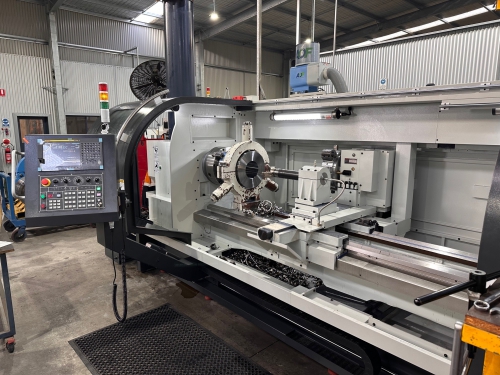

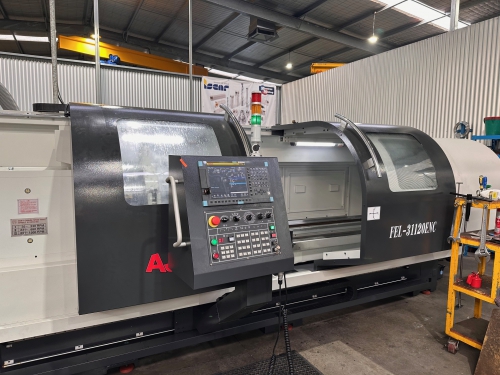

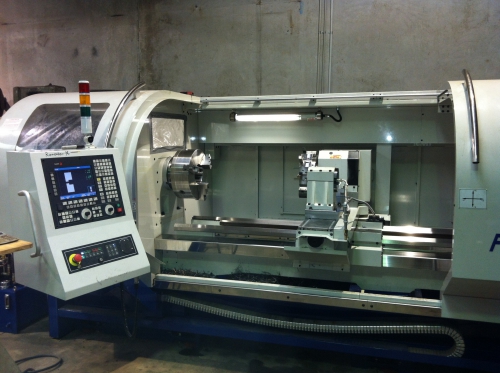

Ajax FEL-2800 Series 720mm or FEL-3100 Series 800mm swing CNC lathes are available from 1100mm up to 5600mm between centres.
They are versatile, productive, and economical workhorses designed for jobbing work or short production runs.
Fitted with a powerful and user-friendly control system by Fagor, Fanuc, and others, these high-quality Taiwanese lathes have proven popular with general engineers, toolrooms, and government departments around Australia.
V8 Tool Turret:

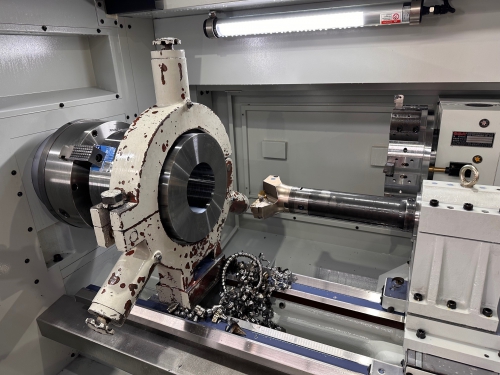

The AJAX machine has an 8-station disk type turret rear mounted, to allow easy loading and unloading of material.
Programmable 3 Range Speed Change:
The Headstock utilizes a programmable three-range gearbox ensuring that maximum torque is available at all times.
Spindle Bores:
Available with 83mm, 105mm, 130mm, 160mm or 255mm spindle bores.
Options:
Fagor X&Z electronic hand wheels, Live tooling with C axis, hydraulic chucks, double chucks, chip conveyors, hydraulic tailstock, various bore sizes, motor sizes, additional steadies, U drill attachments, thread repair cycles etc.
