880mm AJAX Heavy Duty

CNC lathe with 880mm swing over the bed and Fanuc or Fagor Control for heavy-duty machining applications.

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

AJAX Taiwanese ECL Series Heavy Duty CNC Lathes

880mm swing over the bed (1,000mm option).

1700mm up to 7200mm between centres

Floor type bed design standard for lengths from 4200mm

Optional for shorter lengths.

130mm, 160mm, 255mm or 305mm spindle bores

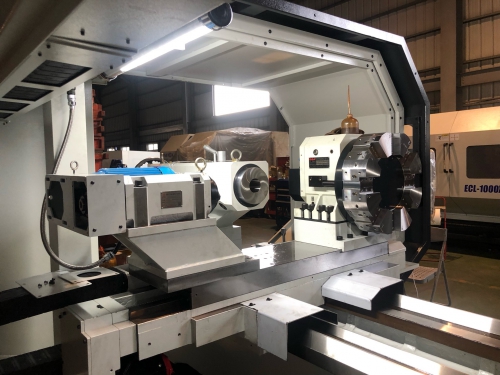

H4, H6, V8, V12 or Live Turret options

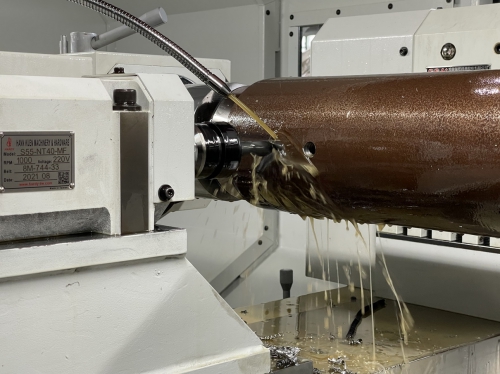

Optional 1,000rpm ER40, Radial milling and drilling device and Cs axis

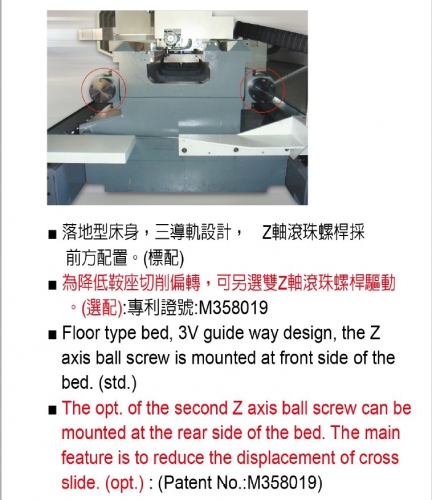

Optional (Patented) 2nd Z axis ballscrew mounted at the rear of the bed

Fanuc or Fagor Control

Sales, service and spares support Australia-wide. We reply the same business day.
