670~1030 AJAX MortonImage 1 of 6

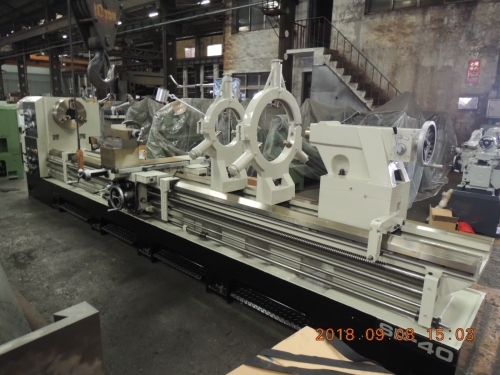

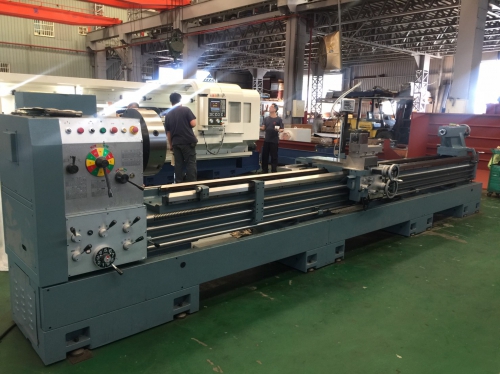

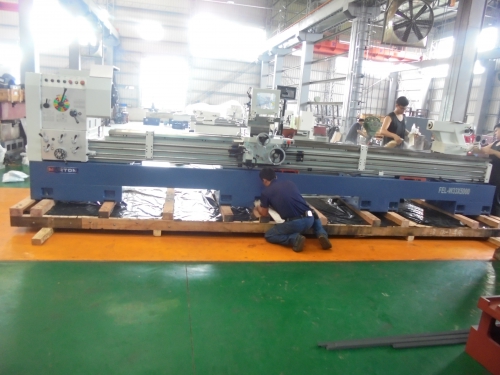

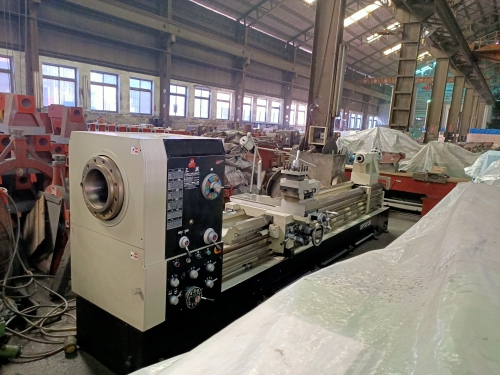

670~1030 AJAX Morton

This heavy-duty lathe offers a substantial swing over bed and flexible distance between centres, ideal for large-scale turning operations.

Get in touch

Send us your details and we'll get back to you shortly.

Product Details

Swing over bed: 670mm to 1030mm

Distance between centres: Up to 8230mm

Spindle bores: 104mm, 155mm, 230mm

Bed widths: 400mm, 460mm, 510mm

All standard thread pitches can be obtained without changing the gears including.

Metric threads.

Inch threads.

Module pitches.

Diametrical pitches.

Large diameter spindle for heavy cutting.

The main spindle is forging as whole-body and sustained by precision bearings.

All gears and splines are made by steel alloys with hardened and precision ground.

Dial rotary system for quick and easy speed changes.

Longer, wider slide and carriage for stronger heavy cutting.

Readily adjustable overload safety device.

Manual and automatic dual lubrication for slide surface.

Automatic stopper for longitudinal feeds.

Heavily ribbed wide bed with induction hardened and precision ground ways,

Design of the bed can quickly clean up chips.

One piece structure lathe bed enhances the machine life and working performance.

High tensile structure, suitable for heavy workpieces.

Tailstock with reduction gearing for convenience in drilling (1/4).

Quill with metric and inch graduation.

Taper of Quill Center MT6

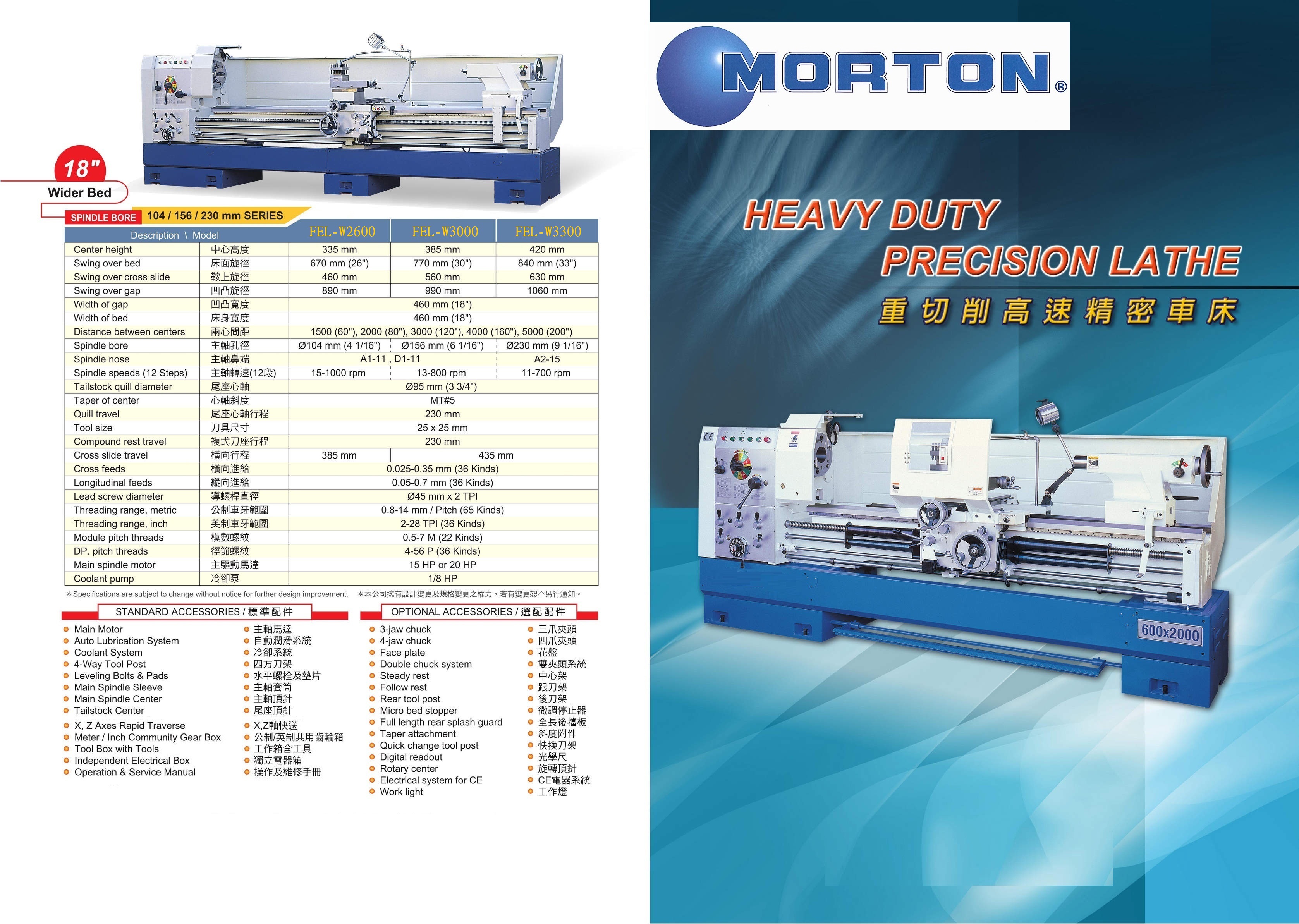

ITEM FEL-P3200 FEL-P3600 FEL-P4000 Series

Swing Over Bed 830mm (32") 930mm (36") 1030mm (40")
