FCL30

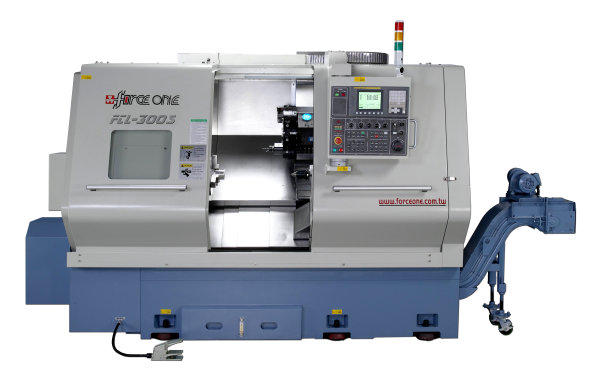

Ajax Force One CNC Slant Bed Lathe Model FCL-30:

The major machine parts, such as the base, saddle, headstock, slide and tailstock are made of Meehanite cast iron and tempered to relieve stress there by ensuring lifetime accuracy. High performance servomotors are directly coupled to the pre-tensioned ball screws. Linear guideway on the X and Z axis. 45 degrees slant bed construction features efficient chip removal and firm support.









SKF Precision Spindle and P4 precision bearings

The cartridge type is easily removed allowing for convenient servicing. The spindle runs on class P4 precision bearings providing high axial thrust capability and superior radial stability. This ensures high precision during heaving duty turning.

Fast Turret Indexing

The 12 position turret features bi-directional random tool selection. Fast indexing time is 0.6 seconds.

FCL-30
Swing over bed	Ø630mm
Max turning diameter	Ø442mm
Working length	700mm	1000mm
Spindle nose	A2-8
Bar capacity	Ø77mm
Hydraulic chuck	Ø254mm
X axis travel	250mm
Z axis travel	700mm	1000mm
