Image 1 of 6FMax 1500

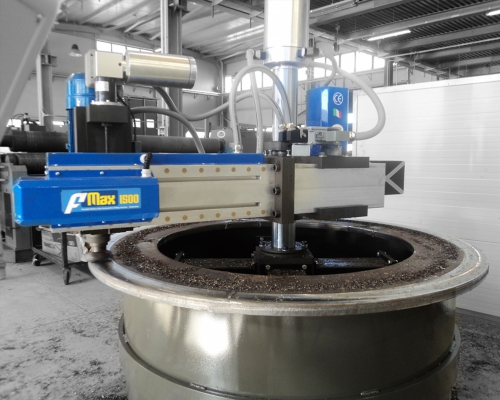

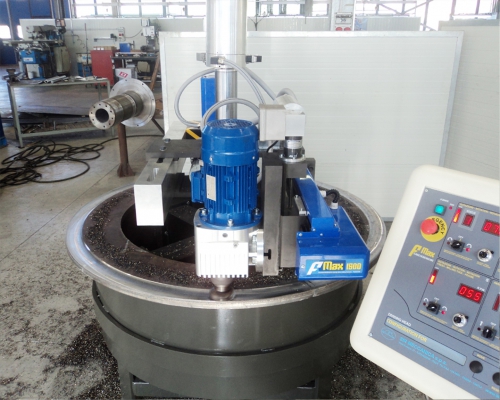

This portable facing and milling machine is engineered for on-site pipeline, flange, and valve maintenance, suitable for diameters from 400mm to 1500mm.
Get in touch
Send us your details and we'll get back to you shortly.
Overview
Working Ranges - FMax 1500 from 400mm to 1500mm diameter
- MILLING
- CONTOURING
- CALIBRATED DRILLING WORKS
- CREATION OF CIRCULAR POCKETS
- CIRCULAR MIG WELDING
- CIRCULAR OXYGEN CUTTING
- TURNING OPERATIONS
- TAPPING

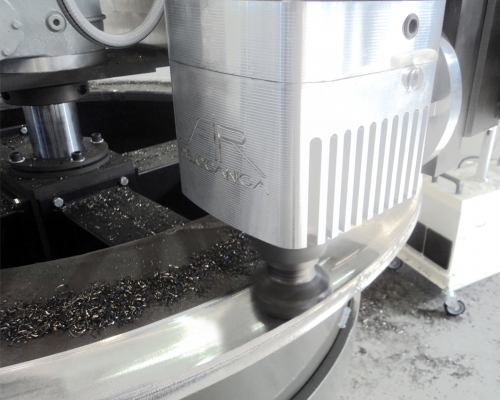

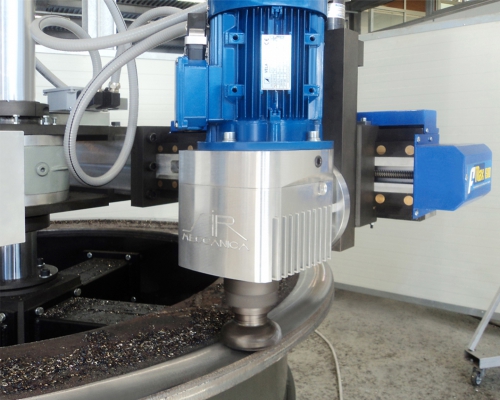

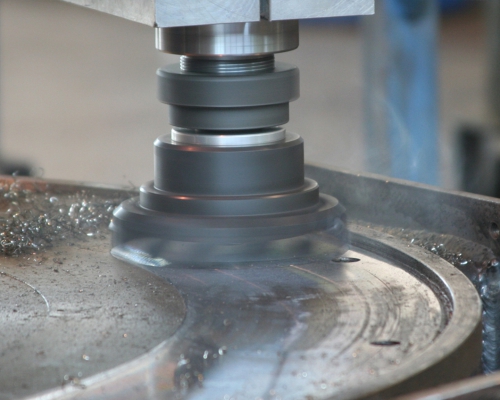

The FMax, has been created to carry out operations such as facing, internal and external beveling, the creation of concentric and/or spiral cylindrical shape grooves, as well as the preparation of edges and chamfers for welding.
Operation is possible in any position: horizontal, vertical or inclined. Its innovative construction compensates for radial and axial stress and tilting moment, minimising harmful vibration. FMax may also be used as a precision drilling/tapping machine.
| SINGLE PHASE POWER | 220 V – 50 Hz | |
| DIAMETER OF FACING | mm | 400 - 1500 |
| CENTRING AND SUPPORTING AXIS DIAMETER | mm | 100 |
| TOOL HOLDER ARM | mm | 800 |
| RADIAL STROKE | mm | 400 |
| AXIAL STROKE | mm | 150 |
| ROTATION MOTOR OF THE ARM | DC CONFORM TO EC NORMS | |
| ROTATION MOTOR OF THE MILLING TOOL | AC CONFORM TO EC NORMS | |
| AXIAL MOVEMENT SYSTEM | DC CONFORM TO EC NORMS | |
| RADIAL MOVEMENT SYSTEM | DC CONFORM TO EC NORMS | |
| MAX. ROTATION TORQUE OF THE TOOL HOLDER ARM | 14000 Nm (0.87 rpm) | |
| MAX. ROTATION TORQUE ON AXIS OF MILLING TOOL | 30 Nm (700 rpm) | |
| MAX. ROTATION SPEED | Rpm | 0.87 |
| ROUGHNESS | um | 1,6 |
| HEAD ROLL | 360° | |
| DIGITAL POSITIONER AND VISUALIZATION OF RADIAL AND AXIAL STROKES |
