FMax 4000

Working ranges - FMax 4000 from 1500mm to 4700mm diameter.

• MILLING
• TURNING OPERATIONS
• CONTOURING
• CALIBRATED DRILLING ON CIRCULAR SERIES
• TAPPING ON CIRCULAR SERIES
• CREATION OF CIRCULAR POCKETS
• CIRCULAR MIG WELDING
• CIRCULAR OXYGEN CUTTING

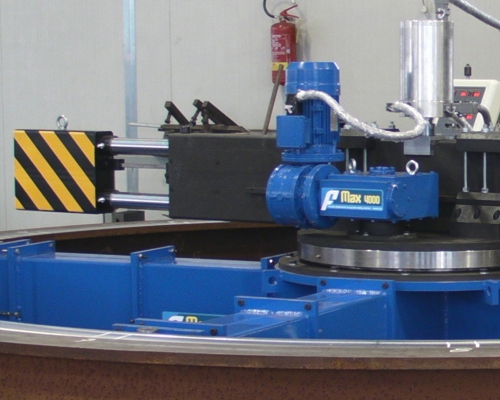

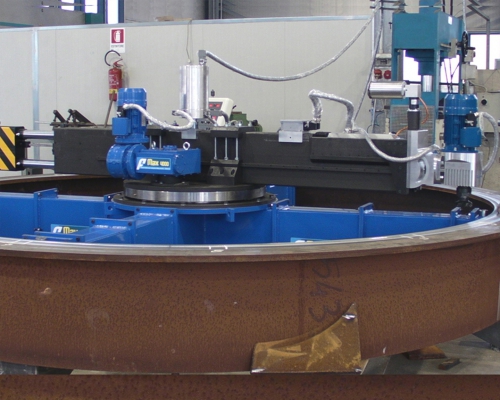

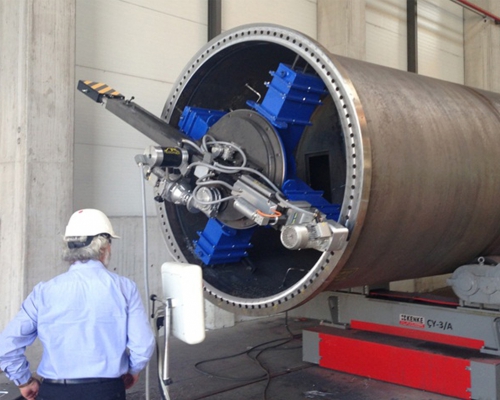

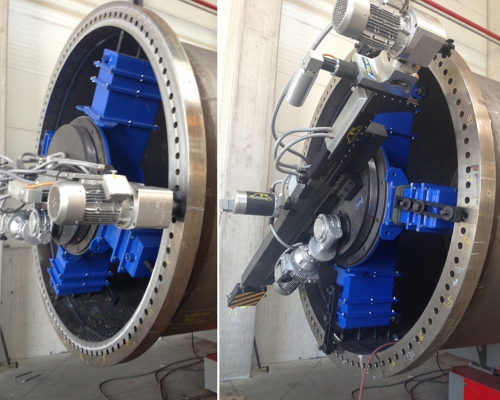

The FMax, has been created to carry out operations such as facing, internal and external beveling, the creation of concentric and/or spiral cylindrical shape grooves, as well as the preparation of edges and chamfers for welding. Operation is possible in any position: horizontal, vertical or inclined. Its innovative construction compensates for radial and axial stress and tilting moment, minimising harmful vibration. FMax may also be used as a precision drilling/tapping machine. Once the diameter and number of holes to be drilled has been set, the electronic controller automatically determines all drilling positions like an electronic indexing head.

SINGLE PHASE POWER		220 V - 50 Hz
MODULAR CENTRING FOR FASTENING AND SUPPORT	mm	1400-4500
TOOL HOLDER ARM	mm	MAX 2000
DIAMETER OF FACING	mm	1500 - 4700
RADIAL STROKE	mm	250
AXIAL STROKE	mm	200
ROTATION MOTOR OF THE ARM		AC/THREE-PHASE CONFORM TO EC NORMS
ROTATION MOTOR OF THE MILLING TOOL		AC/THREE-PHASE CONFORM TO EC NORMS
AXIAL MOVEMENT SYSTEM		DC CONFORM TO EC NORMS
RADIAL MOVEMENT SYSTEM		DC CONFORM TO EC NORMS
MAX. ROTATION TORQUE OF THE TOOL HOLDER ARM		20000 Nm (0.9 rpm)
MAX. ROTATION TORQUE ON AXIS OF MILLING TOOL		30 Nm (700 rpm)
MAX ROTATION SPEED	rpm	0.9
HEAD PITCH		-45° - +20°
HEAD ROLL		360°
FLATNESS TOLERANCES	mm	0,3
RADIAL OSCILLATION TOLERANCES	mm	0,05
ROUGHNESS	um	1,6
DIGITAL POSITIONER AND VISUALIZATION OF RADIAL AND AXIAL STROKES
