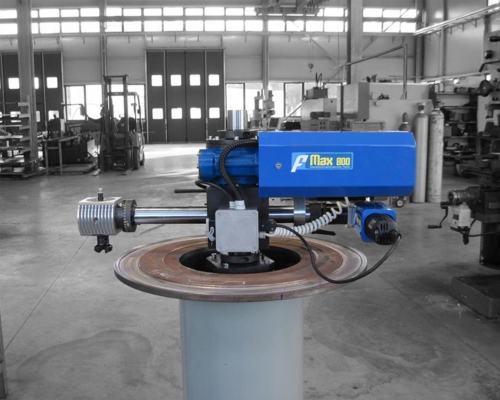

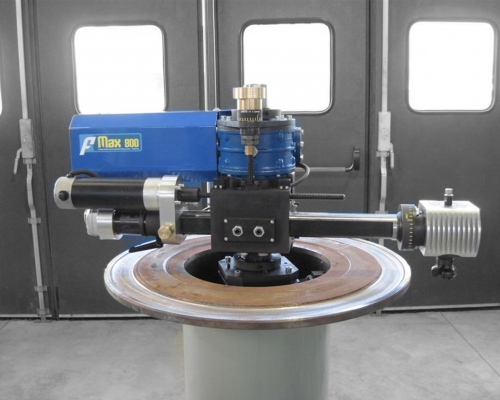

Image 1 of 6FMax 800
This portable machine performs milling, boring, and facing operations with working ranges from 350mm to 800mm diameter.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
Working ranges - FMax 800 from 350mm to 800mm diameter
- MILLING
- TURNING OPERATIONS
- CONTOURING

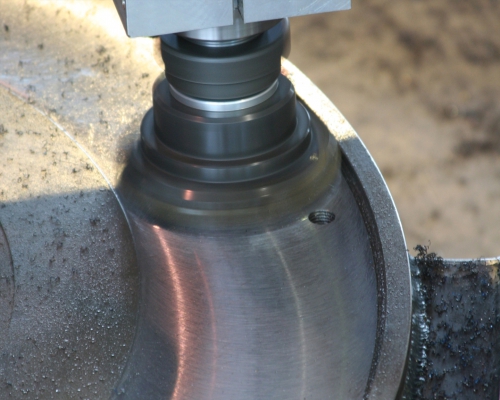

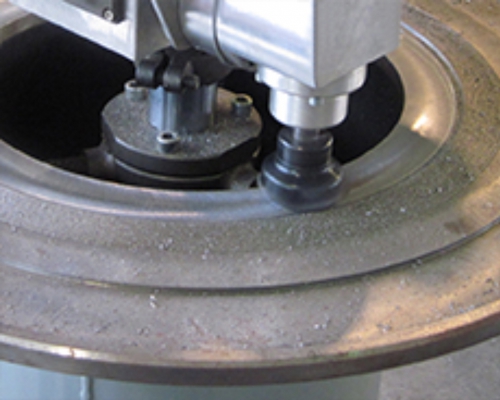

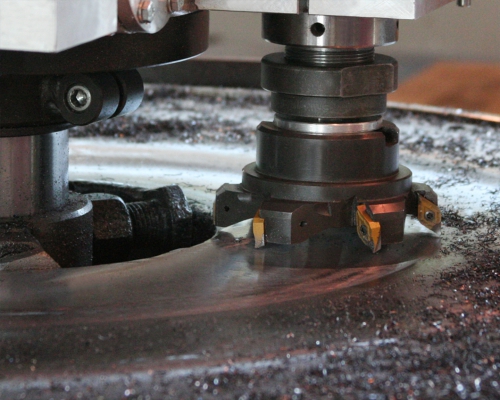

The FMax, has been created to carry out operations such as facing, internal and external beveling, the creation of concentric and/or spiral cylindrical shape grooves, as well as the preparation of edges and chamfers for welding.
Operation is possible in any position: horizontal, vertical or inclined. Its innovative construction compensates for radial and axial stress and tilting moment, minimising harmful vibration. FMax may also be used as a precision drilling/tapping machine.
| SINGLE PHASE POWER | 220 V - 50 Hz | |
| DIAMETER OF FACING | mm | 350 - 800 |
| CENTRING AXIS DIAMETER | mm | 50 |
| TOOL HOLDER ARM | mm | 600 |
| RADIAL STROKE | mm | 180 |
| AXIAL STROKE | mm | 40 |
| ROTATION MOTOR OF THE ARM | rpm | DC CONFORM TO EC NORMS |
| ROTATION MOTOR OF THE MILLING TOOL | rpm | DC CONFORM TO EC NORMS |
| AXIAL MOVEMENT SYSTEM | MANUAL | |
| RADIAL MOVEMENT SYSTEM | DC CONFORM TO EC NORMS | |
| MAX. ROTATION TORQUE OF THE TOOL HOLDER ARM | 4500 Nm (5 rpm) | |
| MAX. ROTATION TORQUE ON AXIS OF MILLING TOOL | 70 Nm (1500 rpm) | |
| MAX. ROTATION SPEED | rpm | 5 |
| SURFACE ROUGHNESS | um | 1,6 |
| HEAD ROLL | 360° |
