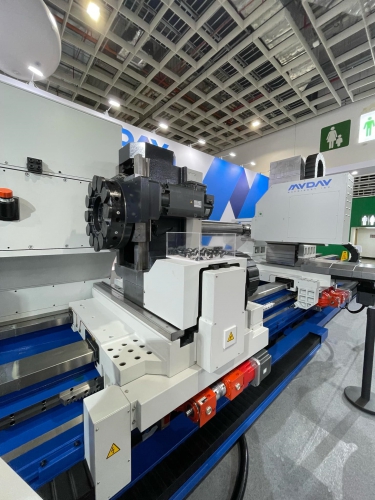

Image 1 of 6Four Guideway Twin Carriage
This heavy-duty CNC lathe features four guideways and a twin carriage design for precise and efficient machining operations.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
Myday SGE Series Heavy Duty Four Guideway CNC Lathes
The Myday SGE Series features four guideways and a twin carriage design.
- 1500mm swing over the bed
- 1000mm swing over the cross slide
- 3,000mm to 15,000mm between centres
- Bed width 1350mm
- Spindle bore 150mm
A stock machine with 6,000mm between centres is available with the following options:
- A 2nd carriage with ISO50, 15kw Milling Spindle on servo Y column -150~+230mm
- CF axis - with hydraulic disk brake and angular encoder on spindle.
