Image 1 of 3HU-1000
This 5-axis universal milling centre features 1000mm, 880mm, and 710mm X/Y/Z travel, with a 1000mm diameter table.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

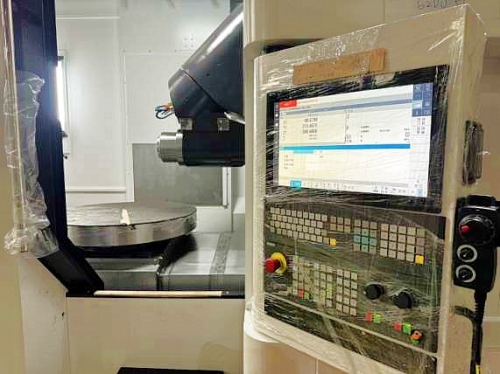

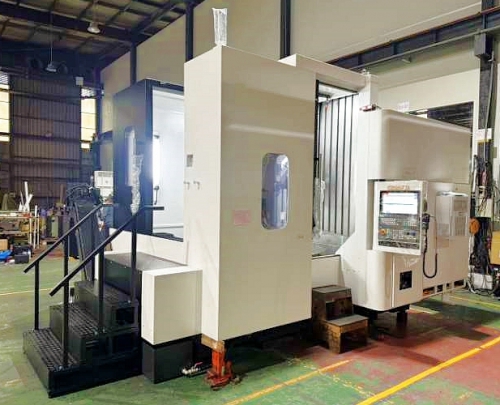

Litz Hi-tech HU-1000 5 Axis Universal Milling Center
| X/Y/Z Travel | 1000mm x 880mm x 710mm |
|---|---|
| Table Diameter | 1000mm with 18mm T slot |
| Table Load | 1500kg |
| B Axis | 0.001 degree indexing on universal milling head, swing angle from -15 to +180 degree |
| C Axis | 0.001 degree indexing table driven by worm gear + servo motor |
| Axis Scales | X/Y/Z/B/C axis with Heidenhain scales |
| Automatic Tool Changer | 40 station HSK-63A |
| Spindle Speed | 18000 RPM with 32KW |
| Rapid Speed | 36/36/36 mm/min |
- Chip flushing and spindle ring coolant system
- Chip conveyor and chip auger
