Image 1 of 2Internal Fixed Support
Modular internal fixed support with independently adjustable legs for centering on various surfaces, suitable for machining coaxial hinges.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

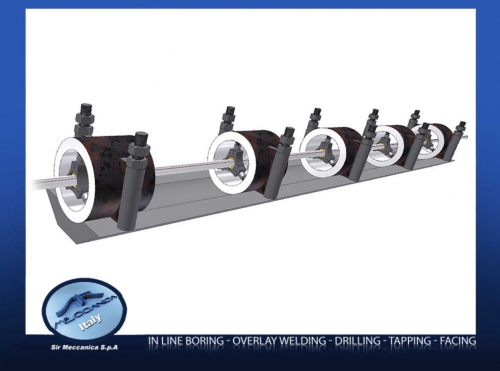

Internal support that can be assembled with modular legs of different sizes. Each leg can be adjusted independently to facilitate centering, even on surfaces that are not perfectly circular. This support can be installed immediately and, if coupled serially, is very useful in machining coaxial hinges that are positioned one after another.
| WS2 diameter | 200 - 400mm |
|---|---|
| WS2 PLUS diameter | 200 - 450mm |
| WS3 diameter | 220 - 600mm |
