Image 1 of 3LU-1200

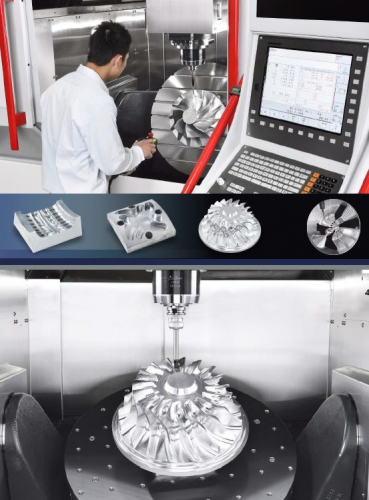

This 5-axis gantry type machining centre offers precision and versatility for complex manufacturing tasks.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
Litz LU-1200 Gantry type 5 axis machining centre
The LU-1200 offers a tilting A-axis with a range of +120 to -120 degrees and a rotating C-axis with 360 degrees of rotation.
LU-1200A
- Travels (X/Y/Z): 1100mm x 1370mm x 800mm
- Tool shank: #40
- Max. spindle speed: 12,000rpm (optional 15,000 or 20,000rpm)
- ATC: 32-tool armless type (optional 64-tool)
LU-1200B
- Travels (X/Y/Z): 1100mm x 1370mm x 800mm
- Tool shank: #50
- Max. spindle speed: 8000rpm
- ATC: 24-tool armless type (optional 48-tool)
