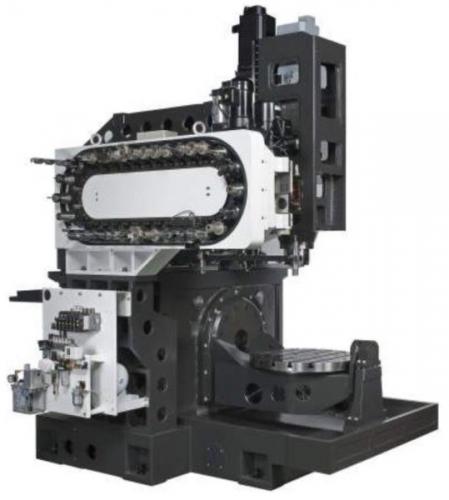

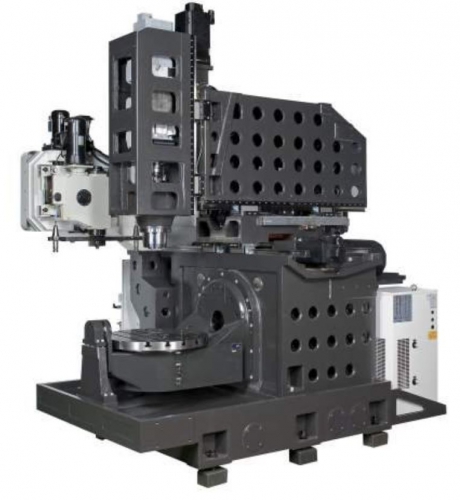

The Litz LU-620 is a 5-axis machining centre with 620mm X-axis travel, a 12,000rpm spindle, and a 30-tool automatic tool changer
Get in touch
Send us your details and we'll get back to you shortly.
Product Details
Litz LU-620, 5 Axis Machining Centre
X-axis travel: 620mm
Y-axis travel: 520mm
Z-axis travel: 460mm
Tilting B-axis: -50° ~ +110°
Rotation C-axis: 360°
Maximum table load: 300kg
Tool shank: #40
Maximum spindle speed: 12,000rpm (optional 15,000rpm or 20,000rpm)
Automatic Tool Changer (ATC) type: 30-tool arm type (optional 40, 48 or 60 tools)
Direct drive spindle design can separate heat source, and minimize heat displacement to increase precision and tool lifespan.
Heat separation coupling design in between spindle and motor. The spindle oil cooling control is optional for high precision cutting.
No belt or gear transmission, thus backlash, noise, or vibration can be limited.
High pull force spindle provides high tool clamping force to enhance tool cutting rigidity.
Two-sided-constraint-taper-tool is used to enhance the cutting rigidity.
Large diameter table expands space for fixture/jig installation, and expands machining range.
High performance hydraulic module provides braking for the worktable, this ensures the work-table's high clamping force at high loading.
Tools can be loaded or unloaded during cutting.
Rapid tool changing arm, T to T: 5 sec
CAM type indexing mechanism, for high precision and low maintenance.
Light ATC arm, for low inertia and low loading.

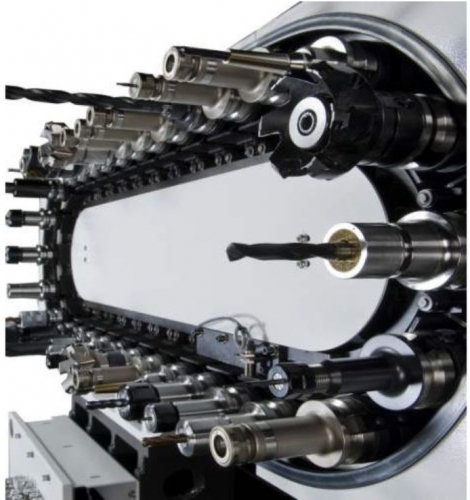

Arm-type tool changing mechanism and magazine on the left side of the machine. This can reduce the time for preparing the tools. Auto door for the ATC can also prevents the chips from getting into the ATC unit.
Equipped with Fanuc / Heidenhain for the most modern 5 Axis control system.
The innovative software function improves the precision and production efficiencies.
The equipped Ethernet port can also provide quick external connect.
Remote capability ensures faster technical support in programming and operability.
Safety technology is in compliance with CE regulation and ECN electrical safety regulation.
Adjustable operation panel: it can be operated in front of the machine or at the right-side of the machine.
The height of the operation panel can also be adjusted to best-suited the height of human body.
In the chip removal function, the highly efficient and simple designed mechanism can handle large amount of coolant to the chip conveyor. And from the chip conveyor, the chips are transported to the chip cart on the left side of the machine. This mechanism makes it easy and convenient to handle the chips.
